PROSOFT MVI56E-MCM Network Interface Module

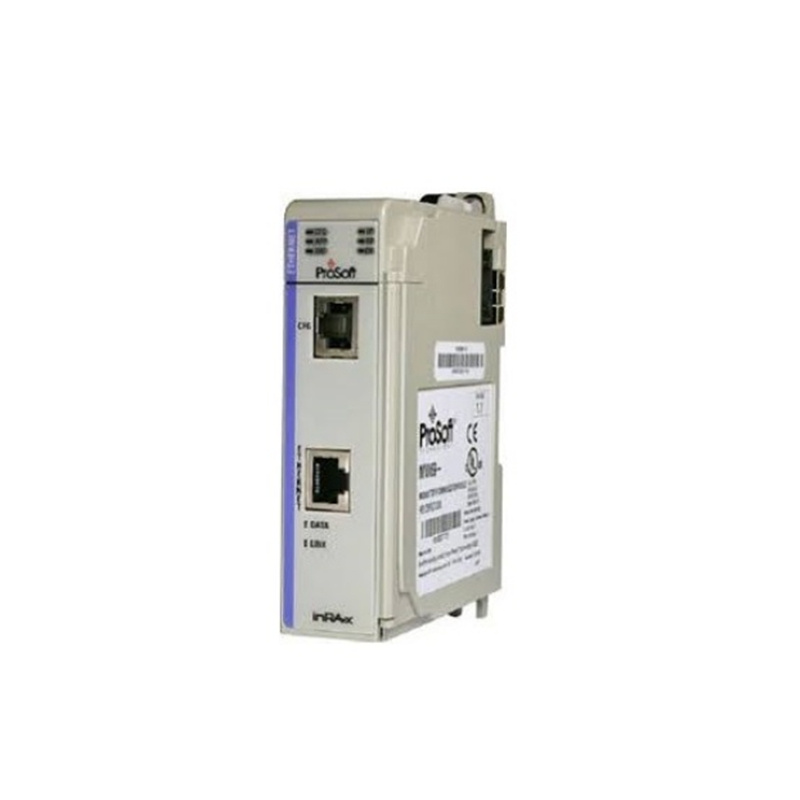

PROSOFT MVI56E-MCM
Product Overview
The PROSOFT MVI56E-MCM is an enhanced network interface module launched by ProSoft Technology. It is primarily designed to connect ControlLogix controllers to Modbus networks, enabling seamless interoperability between diverse industrial devices. This versatile module supports operation both as a Modbus Master and a Modbus Slave.
Key Specifications
- Communication Protocols: Modbus RTU/ASCII (Master/Slave), with support for Modbus TCP/IP, EtherNet/IP, DF1, ASCII and DH-485 protocols.
- Port Configuration: Equipped with two independently configurable serial ports (RS-232/RS-422/RS-485), each of which can be set up as a master or slave unit.
- Power Supply: 10–30V DC (24V DC or 5V DC are the most commonly used voltages).
- Operating Temperature: -40°C to +85°C
- Dimensions: Approximately 114mm × 90mm × 30mm
Product Features
- Multi-Protocol Compatibility: Supports a wide range of industrial standard protocols including Modbus RTU/ASCII, TCP/IP and EtherNet/IP, facilitating smooth cross-platform integration.
- Flexible Port Configuration: The two independent serial ports can operate on the same or different Modbus networks, supporting up to 20 master devices and 30 slave devices simultaneously.
- Compact Design: Compliant with DIN rail mounting standards, the module features a space-saving structure ideal for backplane installation scenarios.
- Enhanced Performance: Select models (e.g., MCMXT) offer a conformal coating option, making them suitable for deployment in harsh and extreme industrial environments.
Structure and Components
- Mechanical Structure: Adopts a DIN rail-mountable metal housing, integrated with RJ45 Ethernet ports and standard serial communication interfaces (RS-232/RS-422/RS-485) for reliable connectivity.
- Electronic Components: Internally integrates a Modbus protocol stack, high-performance processor logic and a power management module. It also comes with an LED display module for real-time indication of operating status and error alerts.
Application Areas
- Industrial Automation: Serves as a bridge to connect ControlLogix controllers with other Modbus-enabled devices such as frequency converters and sensors.
- Power Systems: Applied in communication and control systems for power generation, transmission and distribution networks.
- Process Control: Suitable for monitoring and control of industrial processes in chemical, petroleum and pharmaceutical industries.
- SCADA Systems: Functions as a data concentrator to transmit field device data to upper-level host computer systems efficiently.
Installation and Maintenance
- Installation Method: Typically installed in Rockwell Automation ControlLogix backplanes (e.g., 1756 chassis) and secured via DIN rail mounting.
- Power Requirements: The MCMR version requires a power supply of 800 mA @ 5 Vdc provided by the PLC backplane.
- Configuration and Maintenance: Parameter configuration can be completed using ProSoft Configuration Builder (PCB) and Product Discovery Service (PDS). During installation, ensure sufficient backplane power supply; after properly connecting Ethernet and serial interfaces, the PLC can be started to establish communication.
————————————————————————————————————-
