PROSOFT MVI69-MCM Network Interface Module

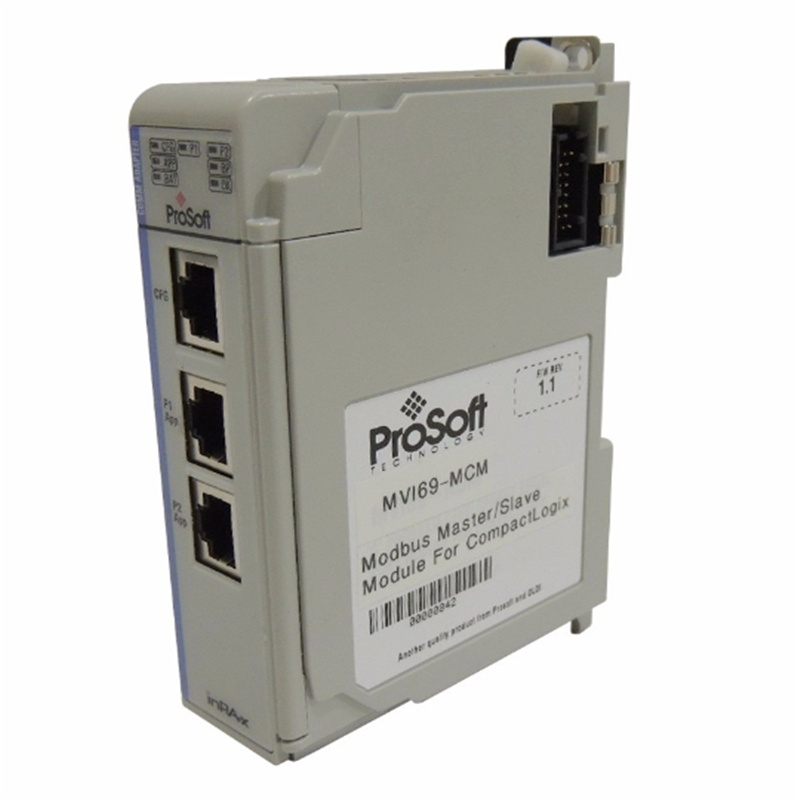

PROSOFT MVI69-MCM
1. Overview
The ProSoft MVI69-MCM is a Modbus Master/Slave network interface module that connects Rockwell Automation® CompactLogix™ and MicroLogix™ 1769-LRP programmable controllers to Modbus-compatible devices. Using ProSoft Configuration Builder (PCB) software, users can configure the module and manage communication and network diagnostic information
This module serves as a reliable communication bridge between Rockwell PLC platforms and a wide range of Modbus RTU/ASCII devices, enabling seamless data exchange in industrial automation and process control systems.
2. Specifications
Electrical Specifications:
- Input Voltage: 5V DC
- Input Current: 800 mA
- Output Voltage: 5V DC
- Output Current: 800 mA
Physical Dimensions:
- 4.92 x 5.50 x 2.24 inches
Certifications:
- CE
- cULus
- ATEX
- IECEx
3. Key Features
-
Multi-Protocol Support
Supports both Modbus RTU and ASCII protocols, and can be configured as either Master or Slave.
-
Enhanced Data Transfer
Enables floating-point data transfer and supports the Enron variant of the Modbus protocol.
-
Powerful Configuration Software
Configured via ProSoft Configuration Builder (PCB) software, simplifying network setup and management.
-
Platform Compatibility
Designed specifically for CompactLogix and MicroLogix platforms, and installs directly on these processors.
4. Package Contents
-
MVI69-MCM Module
The main unit providing Modbus communication interfaces.
-
Communication Cables
- RS232 Null Modem cable
- DB9-to-RJ45 adapter cable
- DB9 female-to-screw terminal adapter for RS422/RS485 networks
-
Software and Documentation
- ProSoft Solutions CD
- Sample programs, utilities, and comprehensive documentation
5. Typical Applications
-
Industrial Automation
Connects various Modbus-compatible sensors, actuators, and instruments to Rockwell PLC systems.
-
Process Control
Ideal for process automation systems requiring integration with legacy Modbus networks.
-
System Integration
Serves as a protocol bridge in multi-vendor or multi-protocol automation systems, enabling efficient data sharing across the network.
6. Installation and Maintenance
Installation:
- The module mounts directly on the backplane of CompactLogix or MicroLogix processors.
- Ensure compatibility with the target processor and use the supplied cables for network connections.
Configuration:
- Configuration is performed using ProSoft Configuration Builder (PCB) software.
- Typical steps include setting jumpers, installing the module, configuring the RSLogix project, and importing ladder logic.
- Key configuration items include module addressing, communication parameters (baud rate, parity, etc.), and read/write register ranges.
Maintenance:
- Global technical support is available, along with technical manuals and online resources.
- Periodically check network connection status, communication diagnostics, and firmware updates to ensure long-term communication stability.
————————————————————————————————————-
