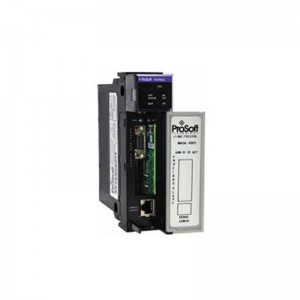

PROSOFT MVI69E-MBTCP Industrial Communication Module
PROSOFT MVI69E-MBTCP
The ProSoft MVI69E-MBTCP is a high‑performance industrial communication module manufactured by ProSoft Technology, Inc. It is specifically designed for use with Rockwell Automation’s CompactLogix series PLCs (Programmable Logic Controllers).
_____________________
1. Core Functions and Purpose
- Modbus TCP/IP Communication: As an enhanced Modbus TCP/IP communication module, it enables reliable read/write data exchange across industrial networks.
- Platform Compatibility: Engineered for CompactLogix controllers such as the 1769-L30 and L35, and fully compatible with RSLogix 5000 or Studio 5000.
- Network Topology: Supports up to 64 TCP/IP connections, allowing simultaneous communication with multiple Modbus devices including PLCs, drives, and instrumentation.
_________________
2. Operating Modes
- Server (Slave) Mode: The CompactLogix PLC acts as the master, while the MVI69E-MBTCP functions as a slave, responding to external Modbus clients.
- Master Mode: The MVI69E-MBTCP initiates read/write commands to external Modbus devices, such as the MVI56E-MCMXT module.
_____________________
3. Key Technical Specifications
• Ethernet Speed: 10/100 Mbps.
• Data Storage: Up to 512 bytes of I/O data.
• Block Transfer Sizes: Configurable as 60, 120, or 240 bytes for optimized performance.
• Temperature Range: -40°C to 85°C, suitable for harsh industrial environments.
• Dimensions: Approximately 4.65 × 1.38 × 4.53 inches (11.8 × 3.5 × 11.5 cm).
• Data Storage: Up to 512 bytes of I/O data.
• Block Transfer Sizes: Configurable as 60, 120, or 240 bytes for optimized performance.
• Temperature Range: -40°C to 85°C, suitable for harsh industrial environments.
• Dimensions: Approximately 4.65 × 1.38 × 4.53 inches (11.8 × 3.5 × 11.5 cm).
____________________________
4. Configuration and Usage
• ProSoft Configuration Builder (PCB): The module is configured using PCB software, where users set IP addresses, ports, Slave IDs, register mappings, and other parameters.
• Controller Tags: In CompactLogix projects, dedicated tags such as MBTCP.CONFIG, MBTCP.DATA, and MBTCP.STATUS are used to access communication data.
• Controller Tags: In CompactLogix projects, dedicated tags such as MBTCP.CONFIG, MBTCP.DATA, and MBTCP.STATUS are used to access communication data.
____________________
5. Typical Applications
• Industrial Automation: Connects SCADA systems, HMIs, or host software with CompactLogix PLCs for real‑time monitoring and control.
• Device Integration: Serves as a protocol bridge when integrating CompactLogix with third‑party Modbus devices from vendors such as Siemens or Schneider Electric.
• Device Integration: Serves as a protocol bridge when integrating CompactLogix with third‑party Modbus devices from vendors such as Siemens or Schneider Electric.
————————————————————————————————————-
