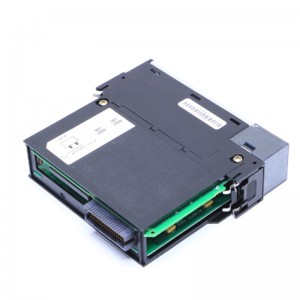

PROSOFT MVI69PDPS Automation Module
PROSOFT MVI69PDPS
Module Positioning
The MVI69‑PDPS is a Profibus DP Slave communication module designed to connect Rockwell Automation PLCs (such as CompactLogix, ControlLogix, and MicroLogix series) to Profibus DP networks in industrial environments.
Structural Components
The module typically includes:
- A CPU/FPGA controller
- A Profibus DP communication chip
- Built‑in memory for storing network configurations
- Status LEDs (indicating power, communication activity, and error codes)
2. Key Specifications
- Communication Protocol: Profibus DP (DP‑V1)
- Communication Speed: 9.6 Kbps to 12 Mbps
- Compatibility: Works with Rockwell Automation CompactLogix, ControlLogix, and MicroLogix PLCs
- Power Requirement: Typically 5V DC
- Temperature Range: -40°C to 70°C
- Dimensions: Standard 1769/1768 backplane slot (approximately 4.88″ × 2.87″ × 1.77″)
- Status Indicators: LED indicators for power, communication activity, and error status
3. Product Features
Cross‑Platform Compatibility
Supports multiple Rockwell Automation PLC platforms (CompactLogix, ControlLogix, MicroLogix) for easy installation and integration.
Standardized Interface
Equipped with a standard Profibus DP interface (such as RJ45 or DB9M), supporting standard fieldbus cabling practices.
High Reliability
Industrial‑grade design with a wide operating temperature range and strong EMC immunity, suitable for harsh factory environments.
Configurable Storage
Built‑in non‑volatile memory stores network parameters (such as baud rate and station address). Configuration can be performed via the ProSoft Configuration Tool or PLC programming software.
4. Typical Applications
Process Control
Connects distributed I/O, transmitters, actuators, and other field devices in process control systems.
Data Acquisition
Transfers real‑time data from the Profibus DP network to the PLC for monitoring and analysis.
Industrial Network Integration
Integrates Profibus‑only devices into Rockwell control systems, enabling unified network management.
5. Installation and Maintenance
Installation Method
Simply inserts into a standard PLC backplane slot (1769/1768), requiring no additional circuit board modifications.
Configuration Tools
Requires the ProSoft Configuration Tool provided by ProSoft Technology, or parameter setup within Rockwell’s PLC programming software (such as RSLogix 5000).
Maintenance Tips
Monitor the LED status (red or yellow lights may indicate communication faults). If issues arise, check fieldbus connections and baud rate settings.
————————————————————————————————————-
