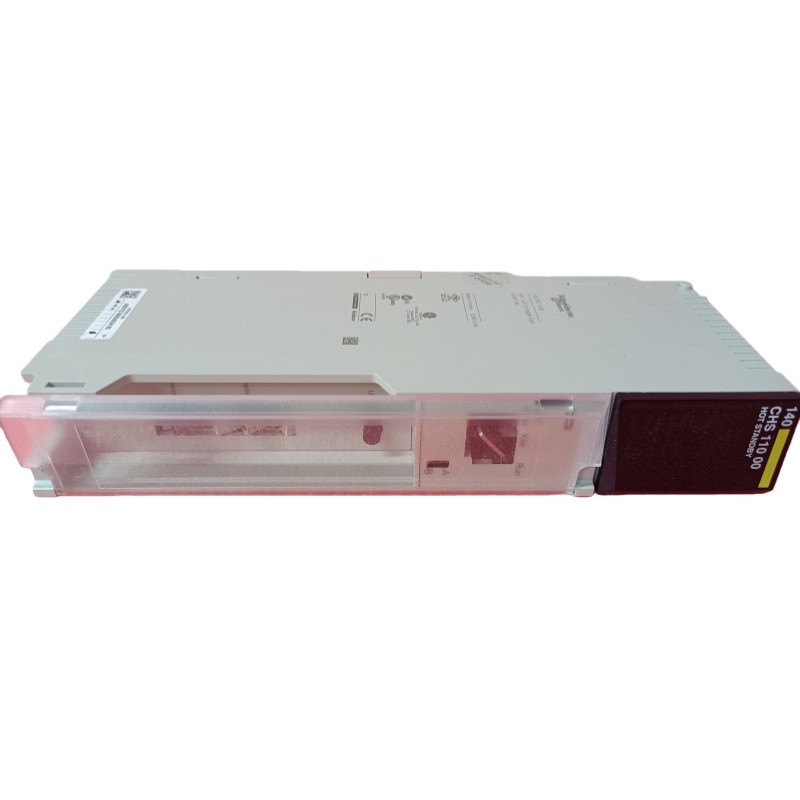

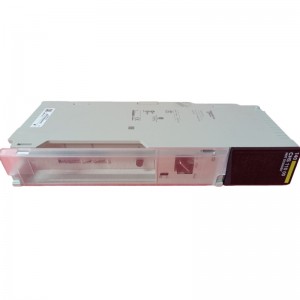

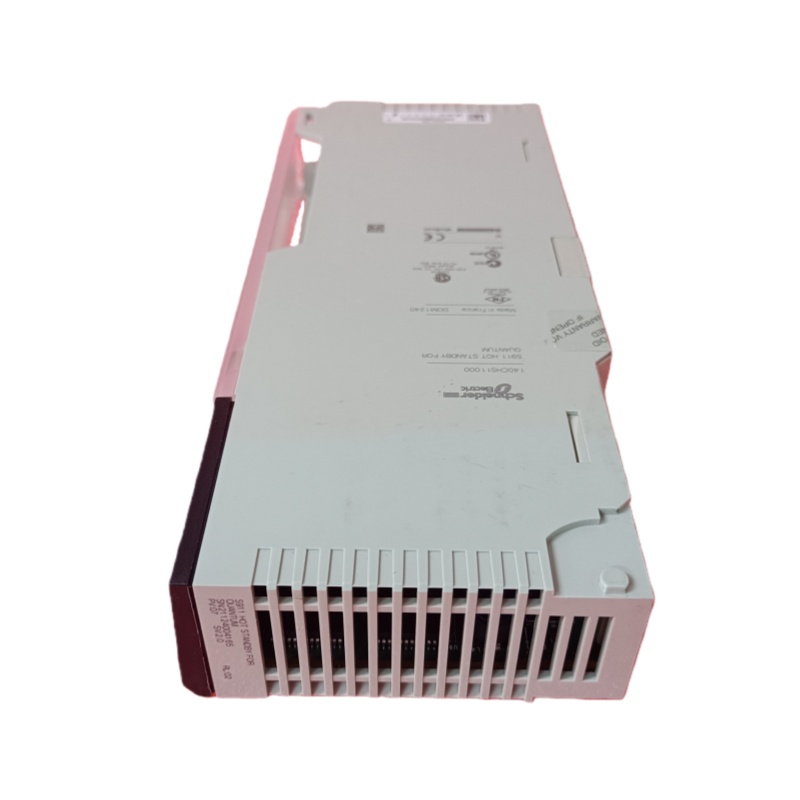

Schneider 140CHS11000

The 140CHS11000 is a hot standby redundancy module designed by Schneider Electric for the Modicon® Quantum series PLCs, engineered to enhance system reliability. In the event of a primary controller failure, it switches to the backup controller within milliseconds, ensuring uninterrupted production processes.

Key Specifications

• Type: Hot Standby Redundancy Module (Hot Backup)
• Compatible PLCs: Modicon® Quantum (CPU31, CPU32, CPU41, CPU42, CPU51, CPU52)
• Switchover Time: < 20 ms
• Operating Temperature: -20 °C to +50 °C
• Protection Class: IP20
• Dimensions: Approximately 132 mm × 176 mm × 35 mm
• Weight: Approximately 0.5 kg
• Power Supply: 12‑48 V DC
• Communication Medium: Fiber Optic (10 Mbit/s)

Product Features

• High Reliability: Redundant design enables automatic switchover between primary and backup controllers, ensuring continuous system operation.
• Rapid Switchover: Switchover time ranges from 13 to 48 ms, minimizing impact on production.
• Transparent Switchover: The switchover process has no effect on user programs, maintaining control logic continuity.
• Easy Installation & Maintenance: Modular structure supports rack mounting, with complete configuration tools and diagnostic software provided.
• Strong Compatibility: Compatible with multiple Modicon® Quantum CPU models and adaptable to existing EXP racks.

Structure & Components

• Hot Standby Redundancy Unit: Includes interface circuits for primary/backup controllers.
• Fiber Optic Communication Interface: Enables high-speed data synchronization.
• Power Redundancy Circuit: Ensures continuous power supply.
• Rack Mounting Brackets: Compliant with Modicon® Quantum EXP rack standards.

Typical Application Fields

• Oil and Gas Process Control
• Chemical Production Lines
• Power System Monitoring
• Water Treatment and Environmental Protection Facilities
• Food and Beverage Processing
• Other Industrial Automation Scenarios Requiring High Reliability

Installation & Maintenance Guidelines

Installation

• Adopt standard rack mounting; ensure secure fiber optic connections.
• Connect to a 12‑48 V DC power supply and verify that the protection class meets on-site environmental requirements.

Commissioning

• Use Schneider’s configuration software to set redundancy parameters and verify primary/backup switchover functionality.

Maintenance

• Regularly inspect fiber optic interfaces, power supply lines, and module heat dissipation.
• Utilize built-in diagnostic functions to monitor redundancy status and promptly replace faulty backup units.
