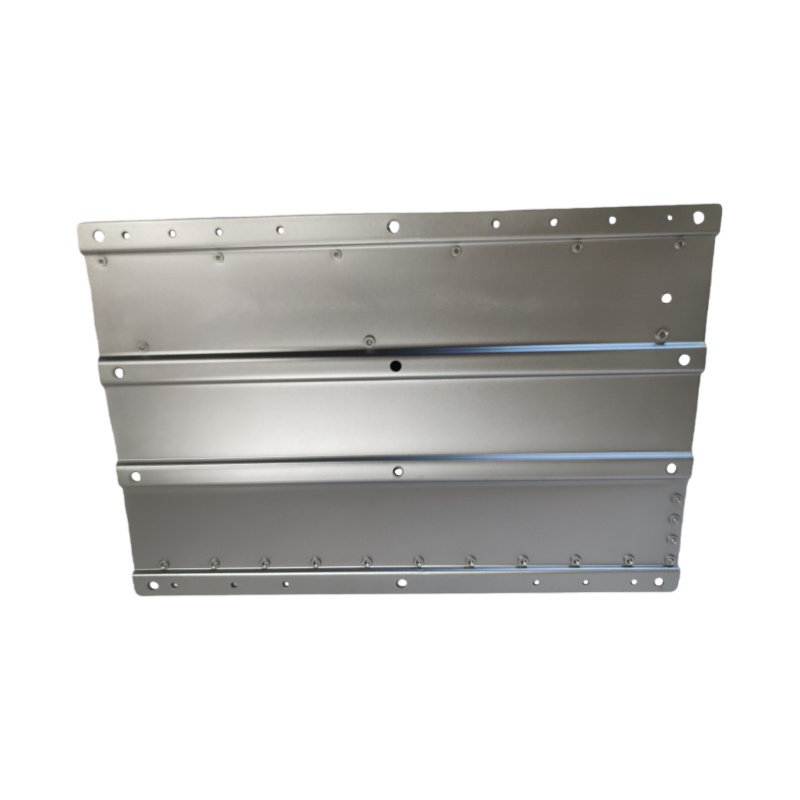

Schneider 140XBP01000 Rack Backplane
Schneider 140XBP01000

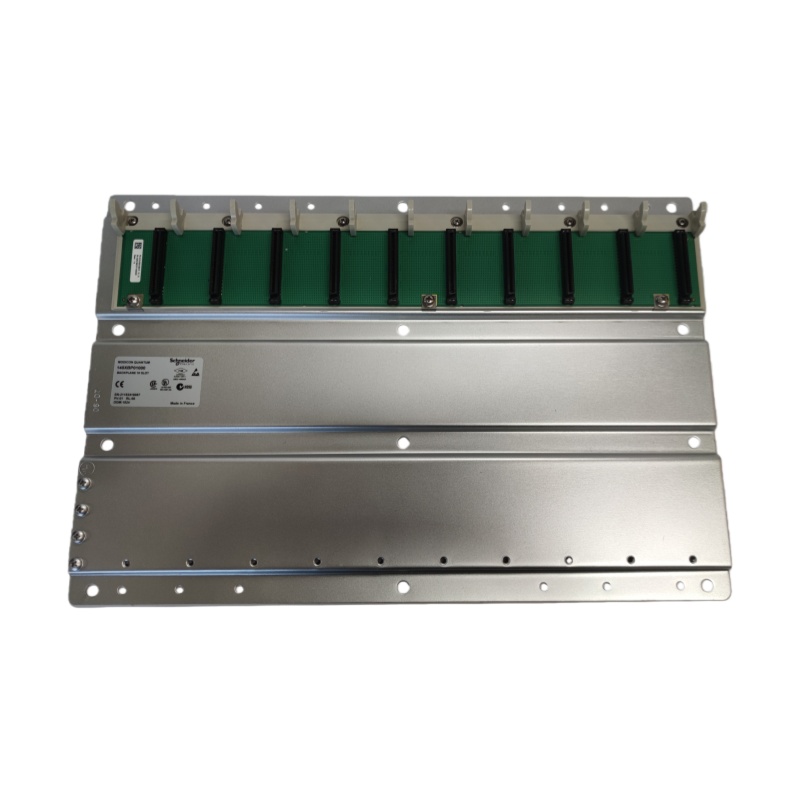

Schneider 140XBP01000 is a rack backplane from Schneider Electric’s Modicon Quantum series, featuring 10 slots designed for installing and connecting various I/O, communication, and functional modules in PLC systems.
Key Specifications
- Number of Slots: 10 slots, compatible with digital, analog, serial communication, and special function modules
- Input Voltage: 24 V DC
- Output Voltage: 24 V DC
- Operating Temperature Range: -25 °C to 70 °C (industrial environments)
- Compliance: Meets DIN 3124 standard; supports hot-swapping and backplane fault detection
- Programming Compatibility: Works with Schneider Unity Pro (IEC 61131-3 programming)
Product Features
- 10-slot modular design enables flexible expansion of system functions
- Hot-swappable support allows module replacement without interrupting system operation
- Built-in fault detection and alarm functions enhance system reliability
- Firmware upgradeable via programming software to maintain latest features and security
- Complies with industrial-grade DIN 3124 structural standards, offering shock and vibration resistance for harsh field environments
Structure and Components
- Main backplane (10 slots)
- Power module (provides 24 V DC/5 V DC output)
- Mounting hardware (DIN rail or panel fasteners)
- User manual and installation guide included in the package
Typical Application Areas
- Manufacturing automation (discrete control, motion control)
- Process industry (analog control of temperature, pressure, flow, etc.)
- Power industry, building automation, transportation, and other scenarios requiring multiple I/O interfaces
- Data acquisition and monitoring systems connecting sensors, actuators, and other devices
Installation and Maintenance Guidelines
Selection and Layout
Confirm that the backplane size and number of slots match the required modules, and reserve sufficient space for wiring and future expansion.
Mounting Method
Use DIN rail or panel screws for secure installation to prevent the backplane from loosening in vibrating environments.
Power Supply Connection
Connect 115/230 V AC or 24 V DC according to the selected power module, and verify power polarity and wiring specifications.
Module Insertion
Insert required I/O, communication, or functional modules into corresponding slots either when the system is powered off or using the hot-swapping function, ensuring the latches are fully engaged.
Fault Detection
After system power-on, the backplane automatically detects and reports faults. If an alarm occurs, check module insertion status or power supply.
Firmware Upgrade
Update the backplane firmware via Schneider Unity Pro software to access new features or fix known issues.
————————————————————————————————————-
