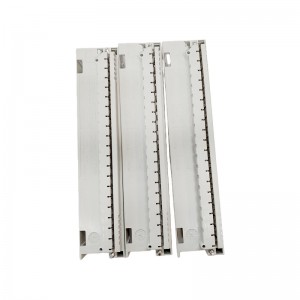

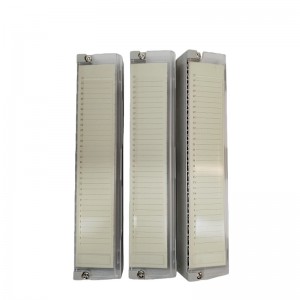

Schneider 140XTS00200

Schneider Electric 140XTS00200 is a screw terminal block specifically designed for Modicon® Quantum series PLCs. It provides reliable electrical connections for 40 I/O points, making it ideal for field wiring in industrial automation systems.

Key Specifications

• Model Number: 140XTS00200
• Number of Terminals: 40-pin
• Rated Voltage/Current: 250 V AC/DC, rated current 10 A (2 A per point)
• Operating Temperature: 0 °C – 60 °C; Storage Temperature: -40 °C – +70 °C
• Relative Humidity: 5% – 95% (non-condensing)
• Protection Class: IP20
• Mounting Type: DIN rail mounting; Dimensions: Approx. 40 mm × 40 mm × 25 mm
• Material: Metal terminals; Housing made of high-quality engineering plastic or metal
• Certifications: CE, UL, CSA, and other international certifications

Product Features

• Screw-type Wiring: Utilizes screw fastening to ensure secure connections and vibration resistance.
• Modular Design: Enables quick plug-and-play installation, facilitating on-site maintenance and expansion.
• High Reliability: IP20 protection rating and corrosion-resistant materials ensure adaptability to harsh industrial environments.
• Strong Compatibility: Tailored for Modicon® Quantum series PLCs, compatible with various I/O modules.
• Easy Installation: DIN rail mounting saves space and simplifies wiring.

Structure and Composition

• Terminal Block: 40-pin screw terminal block with independent wiring for each pin.
• Fixing Bracket: DIN rail clip provides stable mechanical support.
• Identification Labels: Clear numbering on each terminal row for easy on-site identification.
• Housing: High-strength engineering plastic or metal housing offers basic protection.

Typical Application Areas

• Discrete Manufacturing: Signal acquisition for machine vision, robotics, and assembly lines.
• Process Industry: Process control in chemical, petroleum, food processing, and other industries.
• Power Systems: Power distribution monitoring and relay protection.
• Transportation: Rail transit and automated logistics.
• Building Automation: Building control and HVAC systems.

Installation and Maintenance Guidelines

Installation

1. First, fix the bracket on the DIN rail, then snap the terminal block into place to ensure the clip is securely locked.
2. Use wires of specified gauge (AWG 14 – 24) for wiring, and tighten the screws to the specified torque.

Inspection

• Regularly check screw tightness and whether terminal surfaces have oxidation or corrosion.

Environmental Requirements

• Maintain operating temperature between 0 °C – 60 °C and humidity below 95% (non-condensing).
• Avoid strong impact or vibration.

Troubleshooting

• Use a multimeter to measure terminal resistance (≤ 0.1 Ω) and insulation resistance (≥ 100 MΩ) to confirm no short circuits or open circuits.

Maintenance

• It is recommended to perform a comprehensive inspection every 12 months. Replace aged screws or terminals if necessary.

If you would like to learn more about our products and services, please feel free to contact us at any time!

• Sales Manager : Jinny
• Email : sales5@xrjdcs.com
• Whatsapp/Mobile:+86 15359273791
