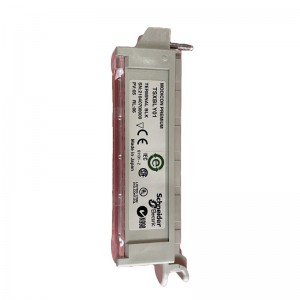

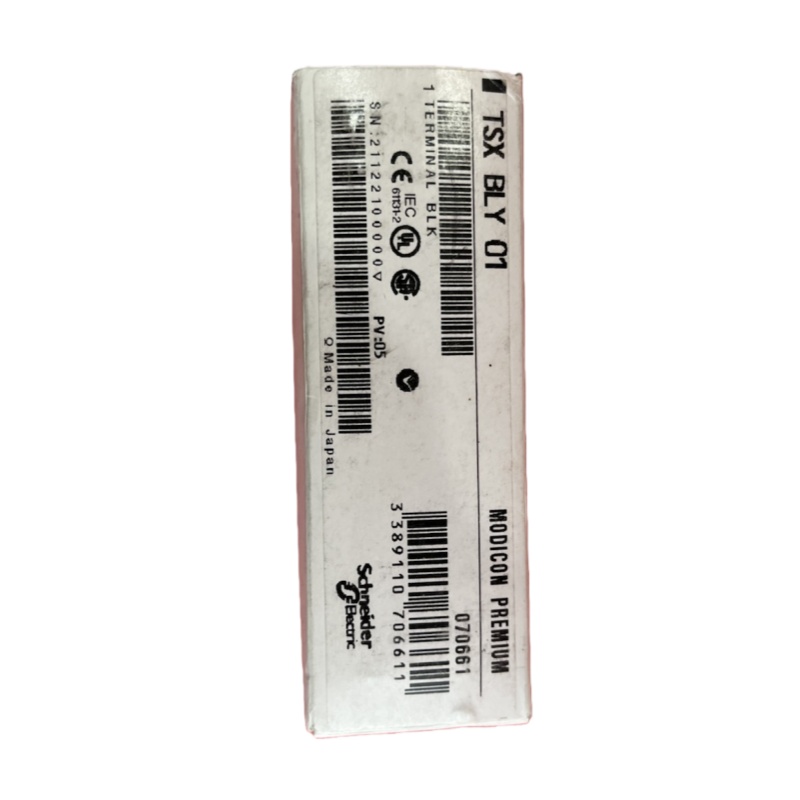

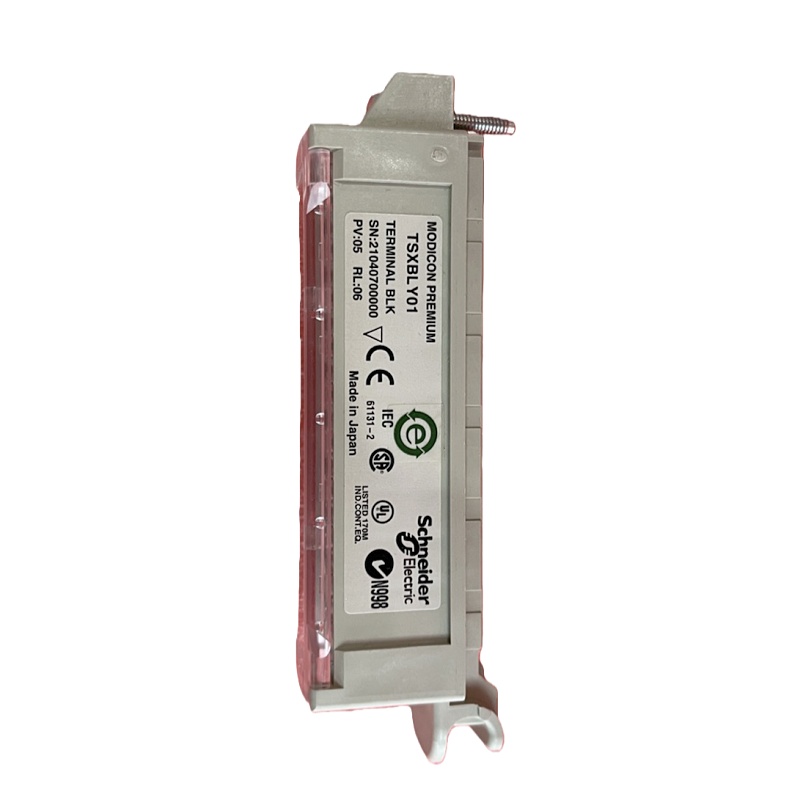

Schneider TSXBLY01

The TSXBLY01 is a screw-type terminal block designed by Schneider Electric for Modicon® Premium series analog and discrete I/O modules. It enables reliable connection of external field devices to I/O modules, facilitating signal acquisition and output.

Key Specifications

• Wiring Method: Screw connection for secure electrical contact
• Pin Count: 20 pins, supporting multi-channel signals
• Compatible Modules: Modicon® Premium series I/O modules such as TSXAEY414, TSXASY410, etc.
• Operating Temperature: 0 °C – 55 °C
• Relative Humidity: 5% – 95% (non-condensing)
• Environmental Adaptability: Storage temperature -25 °C – 70 °C; operating altitude 0 – 2000 m
• Dimensions: 341.4 mm (width) × 151 mm (height)
• Weight: Lightweight and portable for easy on-site installation
• Certifications: CE, UL, and other international safety certifications

Product Features

• Reliable Screw Connection: Anti-loosening and anti-vibration design, suitable for harsh industrial environments
• High Compatibility: Directly compatible with multiple Modicon® Premium I/O modules, simplifying system design
• Environmental Resistance: Wide temperature/humidity range and electromagnetic interference (EMI) resistance, compliant with IEC 61131-2 and IEC 1000-4 series standards
• Modular Design: Enables quick replacement and maintenance, reducing downtime
• Lightweight Construction: Reduces overall system weight for easier transportation and installation

Structure and Composition

• Terminal Block: 20-pin screw terminals with reliable mechanical locking
• Plastic Housing: High-quality engineering plastic for insulation and protection
• Mounting Clips: Supports DIN rail installation, compatible with standard cabinets
• Identification Labels: Clear pin numbering and function markings for simplified on-site wiring

Typical Application Areas

• Industrial Automation: Signal connection between PLCs and field sensors/actuators
• Process Control: Acquisition of analog signals (temperature, pressure, flow, etc.)
• Discrete Control: Connection of digital signals (limit switches, relays, contactors, etc.)
• Machine Vision & Robotics: On-site wiring for high-speed I/O interactions
• Energy Management: Power system applications (power distribution monitoring, inverter interfaces, etc.)

Installation and Maintenance Guidelines

Installation

1. Secure the terminal block to the DIN rail and ensure the mounting clips are fully engaged before wiring.

Wiring

1. Use a screwdriver to insert the conductor of the corresponding signal wire into the pin and tighten the screw to the appropriate torque to prevent loosening.

Inspection

1. After wiring, use a multimeter or dedicated tester to check continuity and polarity of each pin.

Protection

1. In humid or dusty environments, install protective covers or use waterproof junction boxes.

Regular Maintenance

1. Inspect screw tightness every 6-12 months.
2. Remove oxide layers or dust from terminal surfaces to ensure reliable contact.

Replacement

1. The modular design allows direct removal and replacement of faulty terminal blocks without disassembling the entire I/O module.
