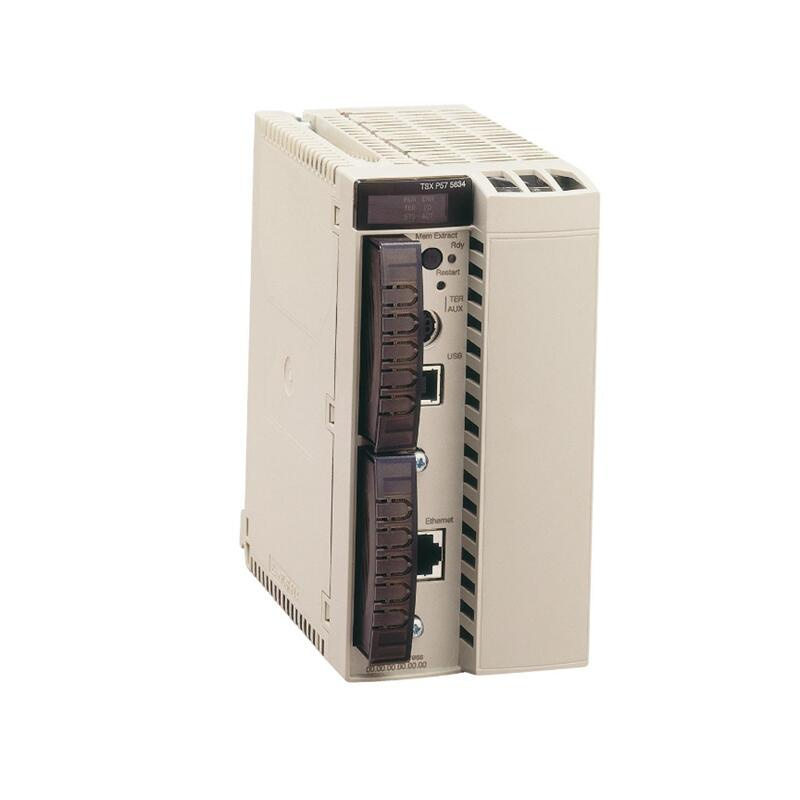

Schneider TSXP5710M

The TSXP5710M is a Premium Processor from Schneider Electric’s Modicon TSX series, belonging to the TSX Premium module family. Equipped with a 32-bit ARM Cortex-A8 processor, it is engineered for high-performance and reliable industrial automation control. Supporting multiple fieldbuses and Ethernet communication, this processor delivers high-speed, precise logic operations and data acquisition even in harsh factory environments.

Key Technical Specifications

• Processor Architecture: 32-bit ARM Cortex-A8, maximum clock speed of 600 MHz
• Memory: 256 MB built-in DDR3 RAM, expandable via external SD card or eMMC storage
• Input/Output: 8 digital inputs, 8 digital outputs (relay or transistor type optional), and 4 analog inputs/outputs (0-10 V / 4-20 mA)
• Communication Interfaces: Ethernet (10/100 Mbps) + Modbus TCP, EtherNet/IP, PROFINET, CANopen, Profibus DP (via optional communication modules)
• Power Supply: 100-240 VAC, power consumption approx. 26 W (with TSX PSY2600 power supply)
• Operating Temperature: -20 °C to +60 °C, compliant with IEC 60730-1 safety standard
• Dimensions: 3U × 84 mm × 120 mm (standard rack size), directly mountable to TSX racks or bases

Product Features

• High-Performance Computing: Powered by ARM Cortex-A8, supporting multi-tasking Real-Time Operating System (RTOS) and IEC 61131-3 programming languages.
• Modular Design: Adopts TSX Premium modular structure with hot-swappable sub-modules for CPU, I/O, and communication, enabling quick on-site replacement and expansion.
• Rich Communication Capabilities: Built-in Ethernet combined with optional communication cards enables multi-protocol interconnection, meeting cross-plant and cross-system data exchange needs.
• Robust Safety & Redundancy: Supports dual-system hot standby, Watchdog, built-in safety functions (safety I/O, emergency stop), and IEC 61508 SIL 2 safety certification.
• Easy Integration: Compatible with Schneider EcoStruxure Control Expert (formerly Unity Pro) development environment, providing comprehensive libraries, diagnostic tools, and remote monitoring interfaces.

Structure & Composition

• CPU Motherboard: Core processing unit integrating processor, memory, system bus, and power management.
• I/O Sub-modules: Digital, analog, relay/transistor output modules, freely combinable based on on-site requirements.
• Communication Sub-modules: Optional plug-in cards for Ethernet, PROFINET, Modbus TCP, CANopen, etc.
• Rack/Base: Standard 3U rack or wall-mounted base with heat sinks and fans for thermal stability during long-term operation.
• Power Supply Module: TSX PSY2600 (100/240 VAC → 24 VDC, 26 W) provides regulated power output.

Typical Application Areas

• Discrete Manufacturing: High-speed motion control and process monitoring for packaging, printing, food and beverage production lines.
• Process Industry: Continuous monitoring and safety protection scenarios in chemical, petroleum, metallurgical industries, etc.
• Building Automation: Energy management, HVAC, and lighting control systems for large commercial buildings.
• Energy & Power: Distribution automation, substation monitoring, and microgrid management.
• Transportation Infrastructure: Real-time control for subway, light rail, and airport baggage handling systems.

Installation & Maintenance Guidelines

On-site Preparation

• Ensure the cabinet or wall-mounted base complies with 3U standards and reserve sufficient heat dissipation space.
• Power wiring must adhere to local electrical codes (100-240 VAC) with reliable grounding.

Module Assembly

• Install the CPU motherboard first, then insert required I/O and communication sub-modules sequentially, securing with dedicated clips for firm connection.

Wiring Inspection

• Use shielded signal cables for digital I/O and shielded twisted-pair cables for analog signals.
• Perform insulation resistance and ground continuity tests after completing all wiring.

Software Configuration

• Use EcoStruxure Control Expert for hardware mapping, variable definition, and program downloading.
• Verify logic in a simulation environment before initial power-on.

Functional Testing

• Check CPU, I/O, and communication status via the built-in diagnostic page after power-on.
• Execute point-by-point I/O testing and communication connectivity verification.

Routine Maintenance

• Inspect fans and heat sinks for dust accumulation every 6 months.
• Regularly back up project files and system parameters.
• Monitor CPU temperature, memory usage, and error logs via remote diagnostic functions.

Troubleshooting

• For hardware failures, first remove and replace the corresponding sub-module via hot-swapping.
• If the system fails to start, use a USB boot disk for firmware recovery or contact an authorized Schneider service center.
