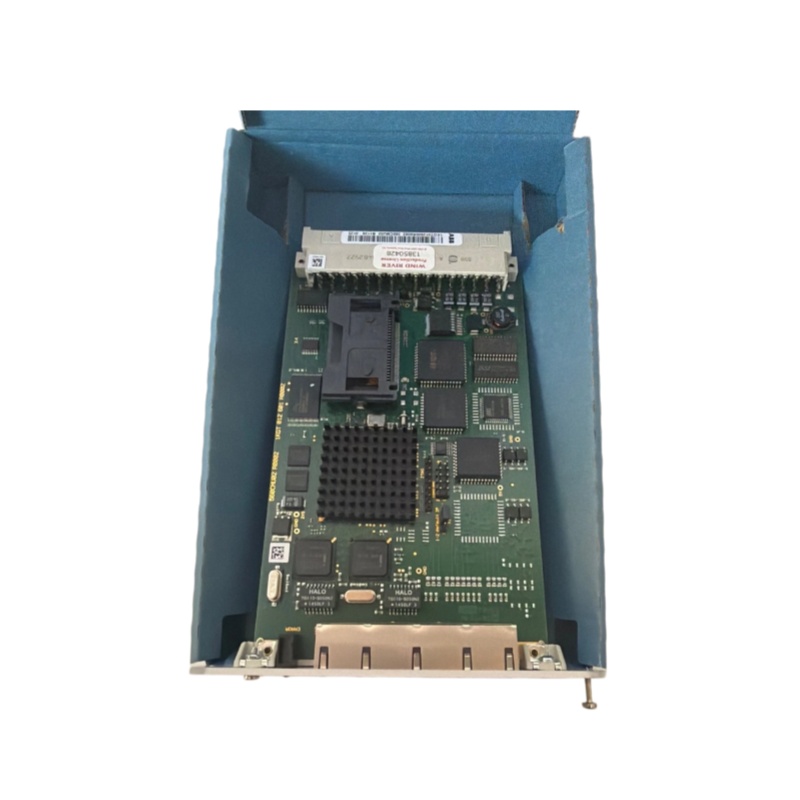

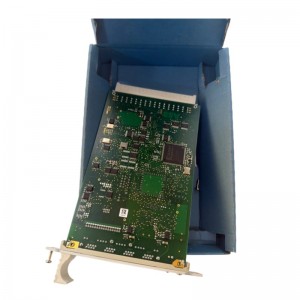

ABB 560CMU02 1KGT012600R0002 Communication Module (CMU)
ABB 560CMU02 1KGT012600R0002
1. Product Overview
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Processor
|
32-bit CPU (ARM Cortex A8 AM3352 Controller)
|
|
Serial Interface
|
4 pcs (RS-232 or RS-485)
|
|
Ethernet Interface
|
2 pcs (10/100BaseT)
|
|
USB Interface
|
1 pc
|
|
SPB Bus
|
Supports SPB I/O Bus
|
|
Real-Time Clock (RTC)
|
Battery-Backed RTC
|
|
Dimensions
|
140mm × 203mm × 58mm
|
|
Weight
|
0.29kg (Gross Weight) / 0.21kg (Net Weight)
|
|
Protection Level
|
Industrial-Grade Protection Design
|
3. Product Features
- High-Speed Processing Capability: Equipped with a 32-bit CPU, supporting complex control logic and real-time data processing.
- Multi-Protocol Support: Compatible with mainstream industrial communication protocols such as Modbus and Profibus.
- Advanced Security Functions: The R0002 version is equipped with a security chip and has advanced network security functions.
- Battery Backup: Built-in battery-backed real-time clock to ensure accurate time after power failure.
- Non-Volatile Storage: System configuration is stored in a flash card to ensure the configuration is valid after power-on.
- Flexible Configuration: Communication ports can be independently configured as SPB I/O bus interfaces.
4. Structure and Composition
- Central Processing Unit (CPU): Composed of a control unit, an arithmetic unit and a storage unit.
- Communication Circuit: Responsible for serial and Ethernet communication management.
- SPB I/O Bus Controller: Mainly controls the communication of I/O modules.
- Memory: Non-volatile flash memory stores system configuration.
- Battery Module: Provides backup power for RTC.
5. Application Fields
- Industrial automation control systems
- Power grid automation and distribution systems
- Building automation systems
- Heating, Ventilation and Air Conditioning (HVAC) systems
- Lighting control systems
- RTU560 Remote Terminal Unit systems
6. Installation and Maintenance
6.1 Installation Points
- The module occupies two slots in the RTU560 rack.
- It needs to be installed in an industrial-grade protective environment to adapt to harsh working conditions.
- The connection of communication interfaces must comply with RS-232/RS-485 or Ethernet standards.
6.2 Maintenance Recommendations
- Regularly check the battery status to ensure the RTC time is accurate.
- Perform remote diagnosis and maintenance.
- Regularly check the connection status of communication interfaces.
- Keep the industrial environment clean to prevent dust accumulation.
————————————————————————————————————-
