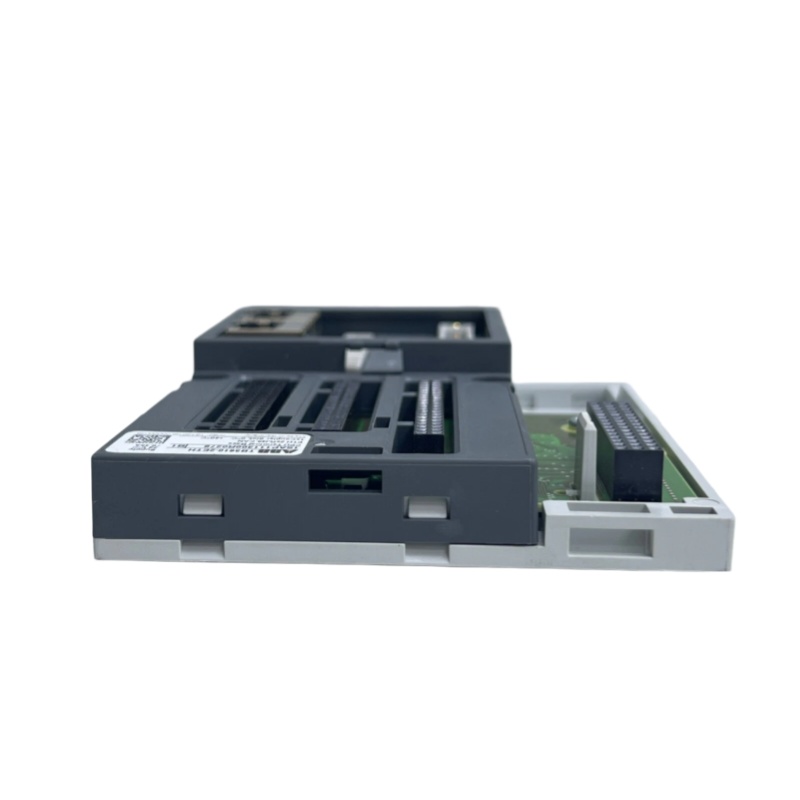

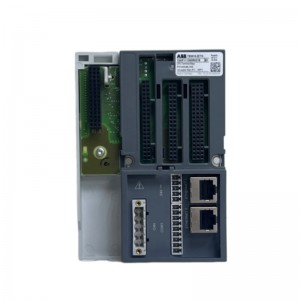

ABB TB5610-2ETH-1SAP111300R0278 Terminal Base
ABB TB5610-2ETH-1SAP111300R0278
Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
TB5610-2ETH
|
|
Product Number
|
1SAP111300R0278
|
|
Series
|
AC500 V3
|
|
Processor Module Slot
|
1
|
|
Communication Module Slot
|
1
|
|
Ethernet Interface
|
2 RJ45
|
|
Serial Interface
|
1 COM Port
|
|
CAN Interface
|
1
|
|
Power Input
|
24V DC
|
|
Terminal Type
|
Spring Terminals
|
|
Mounting Method
|
DIN Rail or Metal Plate
|
|
XC Version
|
Suitable for Extreme Environmental Conditions
|
Product Features
- Modular Design: Equipped with 1 communication expansion slot, which can connect Ethernet, PROFIBUS and other modules to meet different communication needs.
- High-Speed Communication Capability: Equipped with 2 Ethernet RJ45 interfaces and CAN interface, supporting high-speed data processing and communication.
- High Reliability: Suitable for complex automation control systems and operates stably in harsh environments.
- Spring Terminals: Convenient wiring, easy maintenance and expansion.
- Compatibility: Fully compatible with AC500 V3 processor module PM56xx-2ETH series.
- Optional XC Version: Provides XC version suitable for extreme environmental conditions.
Structure and Composition
- Processor Module Installation Position: Used to install processor modules such as PM5630-2ETH, PM5650-2ETH, PM5670-2ETH.
- Communication Module Slot: 1 slot, supporting expansion of communication modules such as CM579-ETHCAT.
- Interface Panel: Includes 2 Ethernet RJ45 interfaces, 1 COM port, and CAN connector.
- Power Connection: 24V DC power input terminal.
- Spring Terminal Block: Used for connecting sensor/actuator lines.
- DIN Rail Mounting Mechanism: Can be directly fixed on standard DIN rails.
Application Fields
- Fan Control: Automation control of wind power generation fans
- Solar Tracking: Solar panel tracking control of photovoltaic systems
- Marine Automation: Marine control systems
- Tunnel Automation: Tunnel monitoring and control systems
- Traffic Control: Traffic signal and management systems
- Packaging Machinery: Automated packaging production lines
- Printing Machinery: Printing equipment control
- Robot Control: Industrial robots and automated robotic arms
Installation and Maintenance
Installation Steps
- Snap the terminal base into the DIN rail.
- Install the processor module PM56xx-2ETH onto the terminal base.
- Install the communication module into the expansion slot if needed.
- Connect the sensor/actuator lines to the spring terminals.
- Connect the external process power supply (if required).
- Connect the programming cable (ETH port of CPU to PC).
Maintenance Notes
Installation Requirements:
- Installation and maintenance must be carried out in accordance with technical rules and standards (such as EN 60204-1).
- Only qualified personnel are allowed to operate.
Confirmation Before Use:
————————————————————————————————————-
