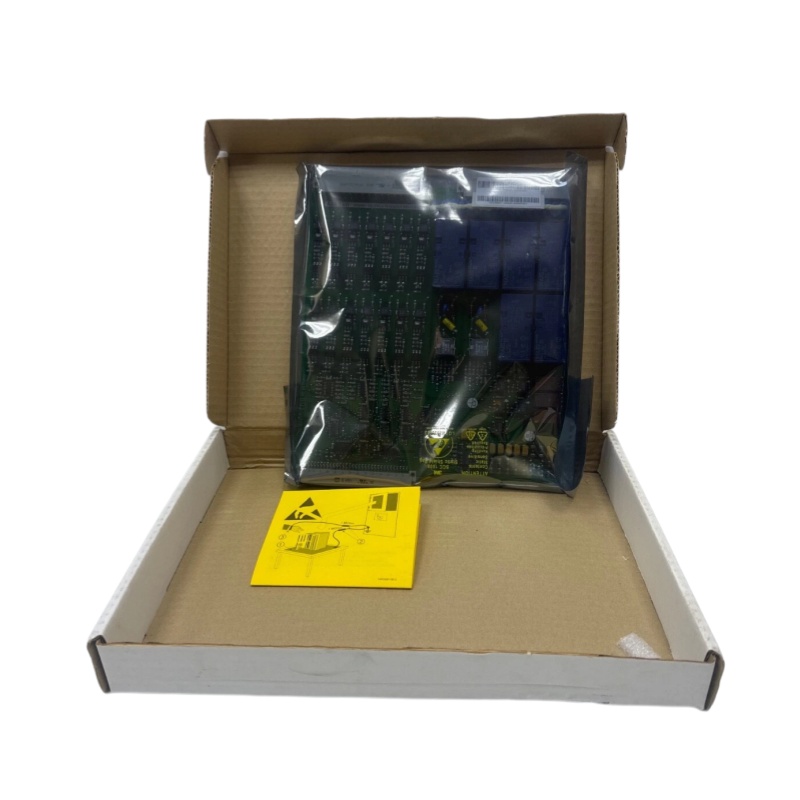

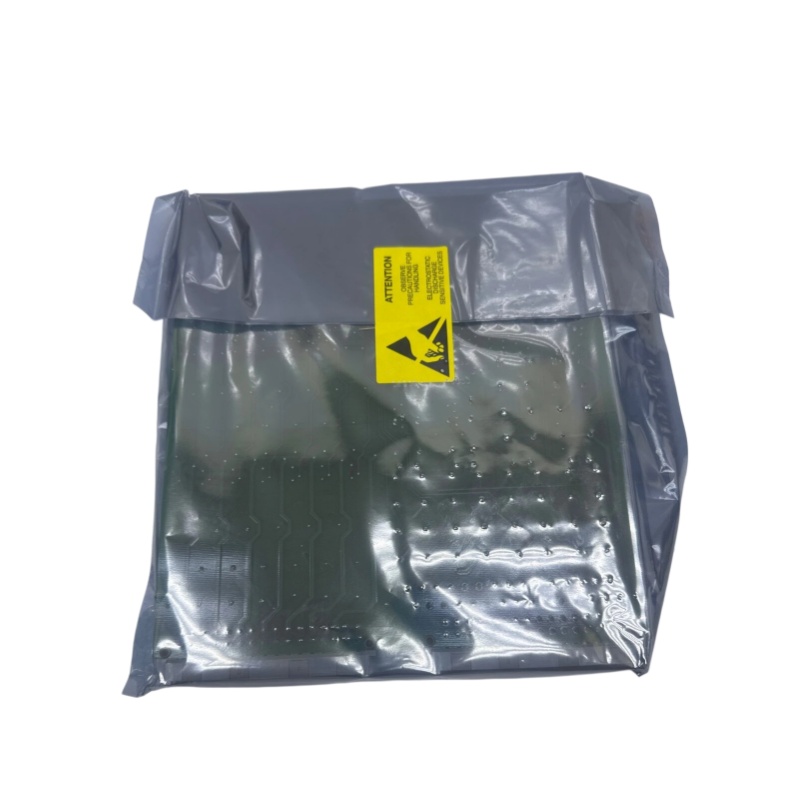

ABB T&D 1VCF701839801

Product Parameters

Product Features

• Integrated Automation: Integrates protection, control and PLC logic functions into one unit.
• Flexible Communication: Supports multiple protocols for easy integration with SCADA and substations.
• Plug-in Design: Facilitates debugging, installation and disassembly, enabling quick and safe maintenance.
• Modular Structure: Modular design simplifies installation and maintenance.
• High Reliability: Designed specifically for medium and high voltage applications to ensure reliable operation.
• Compatibility: Compatible with single busbar, double busbar and dual-system wiring modes.
• Reduced Wiring: LON protocol integration reduces the need for hard wiring between terminals.
• Arc Protection Function: Some models are equipped with arc protection function.

Structure and Composition

• Protection Relay Main Body: Core protection function module.
• Input Interface: Connects voltage transformers and current transformers.
• Output Contacts: Trip contacts and alarm outputs.
• Communication Interface: Industrial standard communication protocol interface.
• Human-Machine Interface (Optional): Some models support HMI display unit.
• Auxiliary Relay Board: Supports auxiliary relay functions such as KA-4.
• Power Supply Module: Standard DC/AC input power supply.

Application Fields

• Substation Protection: Used for feeder protection in medium-voltage substations.
• Transformer Protection: Protection, control and monitoring of power transformers.
• Overhead Line Protection: Protection of medium-voltage overhead lines.
• Motor Protection: Protection and control of three-phase asynchronous motors.
• Reactive Power Compensation: Protection and control of shunt capacitor banks.
• Industrial Switchgear: Protection of power distribution systems in industrial environments.
• Marine Environment: Applications in harsh environments such as offshore platforms.
• Various Power Grids: Supports ungrounded neutral, arc suppression coil grounded and partially grounded networks.

Installation and Maintenance

Installation Notes

• Professional Operation: Installation must be performed by professionally trained power system engineers.
• Safety Regulations: Strictly comply with high-voltage electrical safety regulations and ABB relevant technical manuals.
• System Compatibility Confirmation: Confirm system compatibility before installation.
• Correct Wiring: Ensure correct wiring of voltage transformers and current transformers.
• Environmental Conditions: Ensure the operating temperature is within the range of -25°C to +55°C.
• Protective Measures: Select IP40 or IP54 protection class according to the on-site environment.

Maintenance Points

• Regular Inspection: Check operating status, indicator lights and communication status.
• Wiring Inspection: Regularly check if the wiring terminals are loose.
• Function Test: Regularly test whether the protection function works normally.
• Communication Test: Verify whether the communication interface function is normal.
• Software Upgrade: Perform firmware upgrade according to ABB’s recommendations.
• Cleaning and Maintenance: Keep the equipment clean to prevent dust accumulation.
