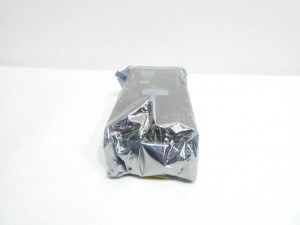

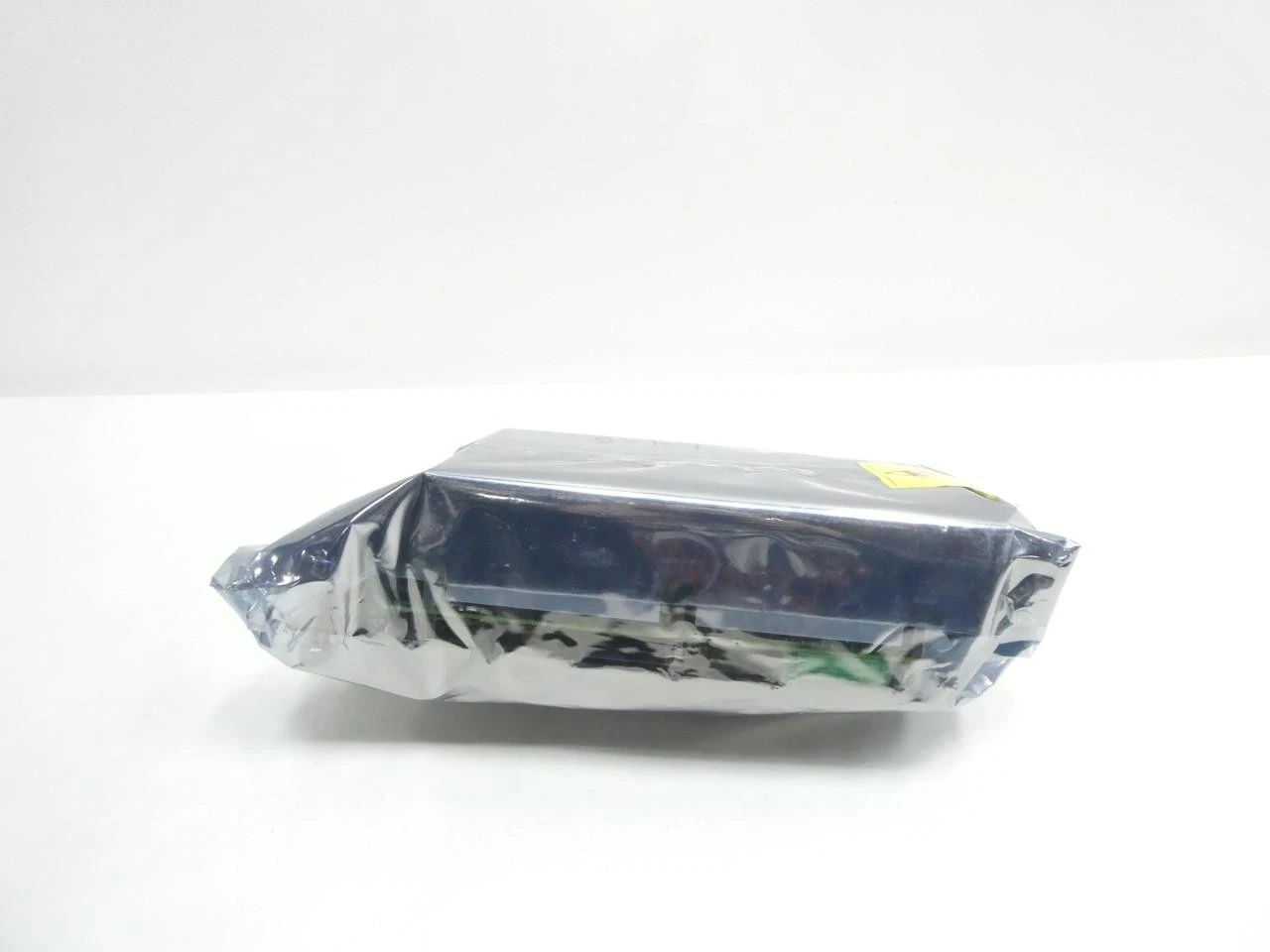

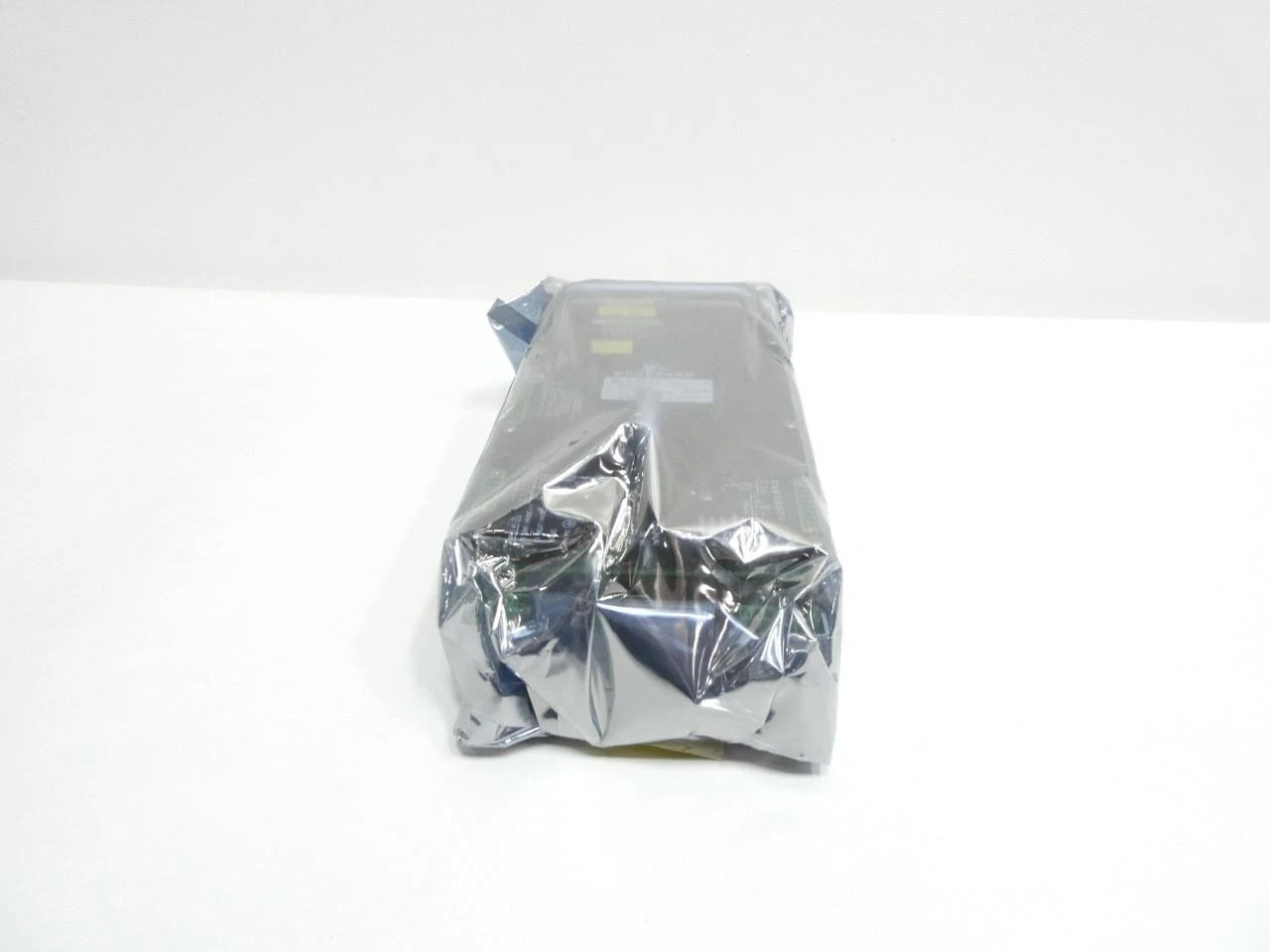

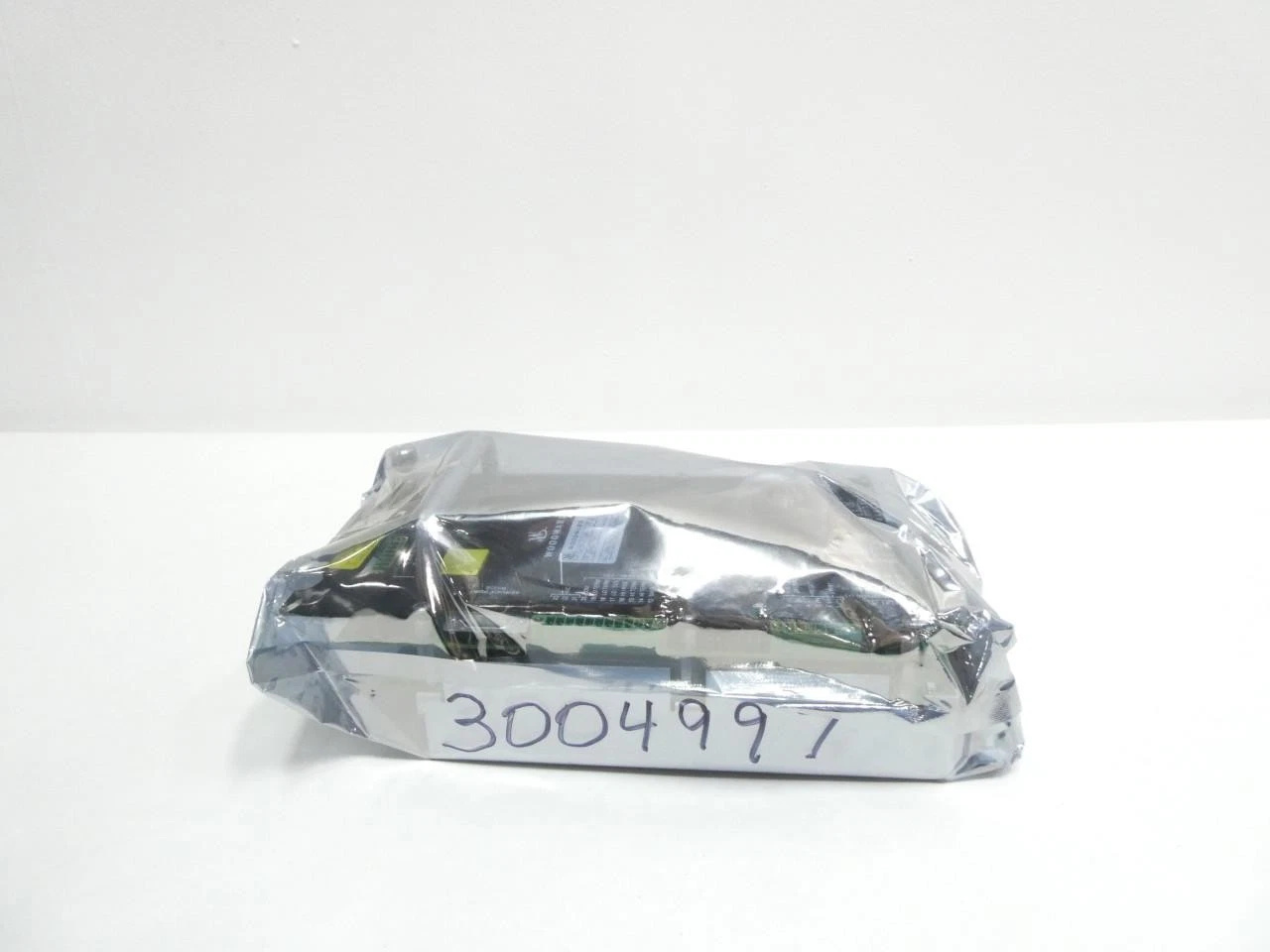

Woodward 5437-1124

Woodward 5437-1124 is a protection/safety module launched by Woodward, and it belongs to the Protech Gii series. This module is mainly used for rapid detection of abnormal conditions such as over-speed and over-current in industrial systems and triggering protection actions to ensure the safe and reliable operation of equipment.

Main Parameters

• Operating Voltage: 24 V DC (common power supply specification)
• Power Consumption: Approximately 5 W
• Operating Temperature Range: -40 °C ~ +80 °C, suitable for harsh environments
• Protection Level: IP67, dust-proof and waterproof
• Dimensions: Approximately 127 mm × 89 mm × 32 mm, with a weight of about 0.5 kg
• I/O Configuration: 24-channel analog/digital input, supporting fieldbuses (such as Modbus, EtherNet/IP)
• Communication Protocols: Modbus, EtherNet/IP, facilitating integration with upper-level systems

Product Features

• High Reliability: Adopts industrial-grade components and has an IP67 protection level, enabling long-term operation in harsh environments.
• Fast Response: The response time for over-speed/over-current detection is at the millisecond level, which can cut off the power supply at the initial stage of a fault to prevent equipment damage.
• Easy Installation: Features a modular design, adopts standard DIN rail mounting, and is equipped with matching screws and terminal blocks for simple on-site wiring.
• User-Friendly HMI: Equipped with LCD/LED indicators, providing fault codes and status displays for convenient on-site operation and maintenance.
• Multiple Communication Methods: Supports fieldbuses and Ethernet, enabling remote monitoring and centralized management.
• Strong Compatibility: Can be seamlessly integrated with other Woodward controllers, drives, and third-party PLC systems.

Structure and Composition

• Power Supply Module: Provides a regulated 24 V DC power supply and has over-voltage and under-voltage protection functions.
• Signal Acquisition Unit: Has 24 analog/digital input channels, equipped with filtering and isolation circuits.
• Processing Core: Based on a high-performance microprocessor, it realizes real-time signal analysis and protection logic.
• Communication Interfaces: Includes Modbus RS‑485, Ethernet port (RJ45), and optional fieldbus cards.
• Human-Machine Interface (HMI): Front-panel LCD/LED display, providing local status indication and parameter setting.
• Output Relays: High-power relays or solid-state relays, used to cut off the protected circuit.

Typical Application Fields

• Power plants (gas turbines, steam turbines)
• Oil and natural gas processing and transportation systems
• Water treatment and sewage treatment facilities
• Protection of motors, pumps, and compressors in industrial manufacturing production lines
• Key subsystems of aerospace and military equipment
• Any automated system that requires high-reliability safety protection

Installation and Maintenance Points

• Installation Location: Choose a cabinet or rail box with good ventilation and no strong magnetic field interference to ensure the protection level is not affected.
• Wiring Specifications: Follow the module wiring diagram, use shielded cables for connecting analog signals, and adopt isolated terminals for digital signals.
• Power Supply Check: Confirm that the power supply voltage is stably maintained at 24 V DC, and install filter capacitors if necessary.
• Parameter Configuration: Set thresholds, delays, and alarm methods through the local panel or upper-level software. It is recommended to conduct a complete functional verification during the first commissioning.
• Regular Inspection: Check the tightness of wiring connections, wear of relay contacts, and dust accumulation on heat sinks every 6 ~ 12 months.
• Firmware Update: If a new version of firmware is released, it is recommended to update it during the shutdown window to obtain the latest functions and security patches.

————————————————————————————————————-
