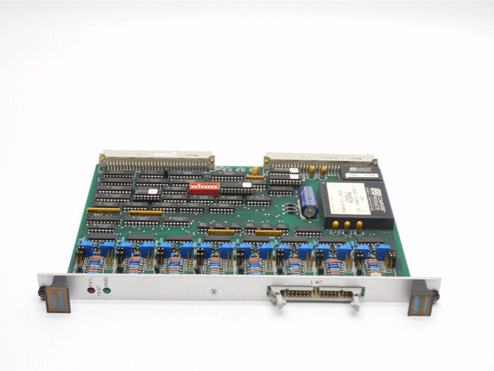

Xycom 70100-001 Industrial Control Module
Xycom 70100-001
The XYCOM 70100-001 is a VME bus-based industrial control module, specifically designed for I/O expansion, data acquisition, and signal conditioning in automation systems. Featuring a modular design, reliable power management, and versatile analog/digital interfaces, it meets the high-reliability requirements of harsh industrial environments.
Key Technical Specifications
- Bus Standard: VME-64
- Power Supply: Regulated 5V main power with built-in overcurrent/overvoltage protection
- Analog I/O: Integrated high-precision AD/DA conversion circuits supporting multiple analog input/output channels; noise suppression achieved through layered wiring design
- Digital I/O: Multiple independent digital input/output channels with programmable pull-up/pull-down resistors
- Processing Core: CPU/FPGA control core responsible for bus protocol processing and local signal conditioning
- Indicator Lights: Front-panel indicators for power, communication, and fault status, enabling quick on-site diagnostics
Product Features
- Modular Structure: Separate main PCB and analog I/O sub-board for easy maintenance and upgrades
- High Reliability: Complies with VME mechanical strength requirements, equipped with heat dissipation channels and dust-proof design, suitable for harsh industrial environments
- Low-Noise Design: Layered wiring and shielding technology reduce signal interference and improve acquisition accuracy
- Easy Integration: Compatible with common PLCs and industrial PCs, supporting plug-and-play functionality via standard VME-64 bus
Structure and Composition
- Main PCB: Houses VME interface chips, CPU/FPGA control core, and power management module
- Analog I/O Sub-board: Responsible for signal conditioning and AD/DA conversion, adopting layered wiring to minimize noise
- Power Management Module: Provides regulated 5V power and overcurrent/overvoltage protection
- Front-Panel Indicators: Display power, communication, and fault status
- Chassis/Backplane: VME-compliant mechanical structure with reliable heat dissipation channels
Typical Application Fields
- Industrial automation control systems
- Data acquisition and monitoring stations
- Process control and instrumentation systems
- I/O expansion for robotics and CNC equipment
Installation and Maintenance Guidelines
Installation
Insert the module into a VME-64 compliant backplane slot, ensure secure engagement, and verify that the contact surface between the backplane and module is free of dust.
Power Supply Check
Confirm the power cable is securely connected, verify the stability of the 5V regulated output, and measure the output voltage with a multimeter if necessary.
Indicator Monitoring
After startup, observe the front-panel indicators. If a fault light illuminates, refer to the fault manual for troubleshooting.
Regular Maintenance
- Inspect and clean heat dissipation channels every 6 months to prevent blockages from dust
- Check and tighten the connecting wires of the analog sub-board
- For function expansion or performance optimization, download the latest firmware via the VME bus; always back up the original configuration before upgrading
————————————————————————————————————-
