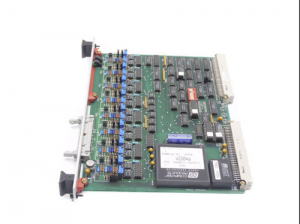

XYCOM 95212B-001 VME-bus Circuit Board
XYCOM 95212B-001
1. Overview
The XYCOM 95212B-001 is a universal I/O expansion module under the XYCOM series. It adopts a standardized Universal Signal Processing Platform (USPP) structure, enabling the acquisition and output of digital and analog signals, and is compatible with a variety of industrial control hosts. This model is listed in the product catalogs of many domestic and foreign automation supporting suppliers.
2. Technical Specifications
- Operating Voltage: 24 V DC (power supply)
- Signal Type: Digital I/O (TTL/CMOS), optional 24 V relay output
- Number of Channels: Regular configuration includes 16 – 32 digital input/output channels (the specific number of channels varies slightly with sub – models)
- Response Time: ≤ 1 ms (for digital I/O)
- Operating Temperature: -20 °C ~ +70 °C
- Dimensions: Compliant with USPP standard chassis dimensions (approximately 3U height)
- Interface: Compatible with buses such as VME, PXI, and PCIe (realized through backplane or adapter card)
3. Product Features
- Modular Design: Utilizes a standard USPP chassis, allowing for quick plug – and – play and facilitating system expansion.
- Multi – bus Compatibility: Supports various industrial buses like VME, PXI, and PCIe, making it compatible with different control platforms.
- High Reliability: Adopts industrial – grade components, featuring anti – interference and anti – vibration capabilities, suitable for harsh on – site environments.
- Flexible I/O Configuration: Digital input and output can be freely mapped via software to meet various control logics.
- Plug – and – Play: Comes with original packaging and an anti – static, moisture – proof box from the factory, enabling rapid on – site deployment.
4. Structure and Composition
- Chassis (USPP): Features a metal shell that provides electromagnetic shielding and heat dissipation.
- Motherboard: Equipped with digital I/O interface chips, buffer circuits, optocoupler isolation, etc.
- Terminal Block: Screw – type or spring – type terminals, supporting the connection of various wire gauges.
- Indicator Lights: Provide status indication (power, communication, fault) for easy on – site monitoring.
- Heat Sink: Adopts a passive heat dissipation design to ensure thermal stability during long – term operation.
5. Typical Application Fields
- Industrial Automation: PLC expansion for production lines and I/O expansion for robots.
- Process Control: Process monitoring and control in chemical, metallurgical, energy, and other industries.
- Transportation Systems: Rail transit and intelligent traffic signal control.
- Building Automation: Centralized management of air conditioning, lighting, and security systems.
- Scientific Research Experiments: Signal acquisition for laboratory automation platforms and testing equipment.
6. Installation and Maintenance
Installation Steps
- Confirm the bus compatibility (VME, PXI, etc.) between the chassis and the host.
- Insert the module into the corresponding backplane slot and ensure the buckle is securely fastened.
- Connect the power cable (24 V DC) and check if the indicator lights work normally.
- Use the terminal block to connect the on – site sensor and actuator cables to the corresponding I/O channels.
- Perform channel mapping and parameter configuration in the control software.
Daily Maintenance
- Regularly check the tightness of the terminal block to prevent signal failure caused by looseness.
- Clean the dust on the surface of the chassis to maintain the ventilation of the heat sink.
- Monitor the status of the indicator lights and promptly troubleshoot power or communication faults when abnormal lights appear.
- If module replacement is required, first cut off the power, pull out the old module in reverse order, replace it with a new one, and then reset it.
————————————————————————————————————-
