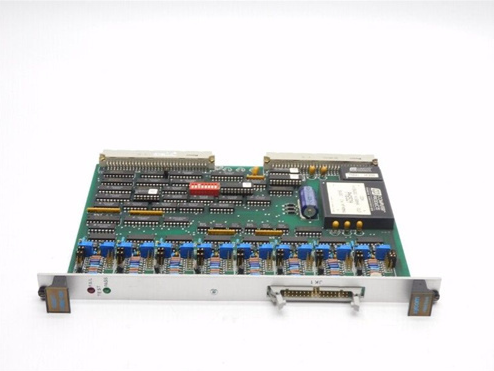

XYCOM xvme-085 70085-001 Control Module
XYCOM xvme-085 70085-001
1. Overview
The XYCOM XVME‑085 is a high-reliability control module designed for industrial automation applications. Featuring a low-power consumption chip design, it supports multiple communication interfaces (RS‑485, Ethernet, and XVME) and can operate stably in a wide temperature range of -20 ℃ to 60 ℃. It is ideal for field devices that require precise control and monitoring.
2. Specifications
- Operating Voltage: 24 V DC
- Protection Class: IP65
- Operating Temperature: -20 ℃ to 60 ℃
- Communication Interfaces: RS‑485, Ethernet (10/100 Mbps), XVME bus
- Dimensions: Approximately 150 mm × 100 mm × 50 mm
- Power Consumption: Low-power design, suitable for long-term continuous operation
3. Product Features
- Low Power Consumption & Efficient Heat Dissipation: The passive heat dissipation structure reduces energy consumption and extends service life.
- Modular & Hot-Swappable: Supports quick plug-and-replace to minimize downtime for maintenance.
- Multi-Protocol Compatibility: Compatible with RS‑485, Ethernet, and XVME simultaneously, facilitating seamless system integration.
- High Protection Level: With an IP65 rating, it can adapt to harsh industrial environments.
4. Structure and Components
- Power Module: Provides regulated power supply with overvoltage/undervoltage protection.
- Communication Interface Board: Integrates RS‑485, Ethernet, and XVME interfaces in one unit.
- Processor Unit: Based on a low-power chip to enable real-time control functions.
- Heat Dissipation Device: Passive heat sink ensures thermal balance during long-term operation.
- Housing: Metal structure that meets the IP65 protection standard.
5. Application Fields
- Industrial Automation Control Stations: Local control and monitoring for machine tools, packaging, printing, and other equipment.
- Process Control: Real-time on-site data collection and regulation in chemical, energy, metallurgical, and related industries.
- Machine Vision/Robotics: Enables closed-loop control when paired with servo drives.
- Building/Facility Management: Centralized monitoring systems for HVAC, lighting, security, and other building facilities.
6. Installation and Maintenance
Installation Key Points
- After powering off, fix the module to the cabinet or guide rail, ensuring unobstructed heat dissipation channels.
- Connect the power and communication cables according to the wiring diagram and verify that all interfaces are securely inserted.
Maintenance Key Points
- Regularly inspect the power supply, interface connections, and heat sinks for dust accumulation.
- Replace faulty modules via hot-swapping to avoid overall system shutdown.
- Record operation logs and update firmware in a timely manner to obtain the latest functions and security patches.
————————————————————————————————————-
