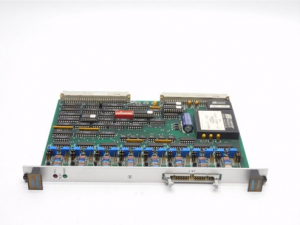

XYCOM XVME-240 Digital I/O Module
XYCOM XVME-240
Introduction
The XVME‑240 is a 6U double‑slot VME‑bus digital I/O module manufactured by XYCOM. It provides 80 TTL‑level I/O channels (8 groups of 10‑bit ports) and is suitable for high‑speed data acquisition and control systems.
Key Functions
It enables the input, output and status flagging of multi‑channel digital signals. It also supports the hardware offloading of time‑consuming tasks such as counting and timing for the host CPU.
Technical Specifications
- Form Factor: 6U double‑slot VME‑bus card
- Number of Channels: 80 TTL channels (8 × 10‑bit ports)
- Electrical Characteristics: TTL level (0 V/5 V), with a maximum current of 20 mA per channel. It supports single‑ended/differential input modes (depending on specific firmware).
- Power Supply: +5 V, +12 V, +24 V (provided by VME‑bus)
- Operating Temperature: 0 °C ~ +55 °C (industrial grade)
- Reliability: Complies with VME‑bus standards for anti‑interference and anti‑shock specifications
Product Features
- High‑Density I/O: 80 channels are integrated on a single card, enabling compact wiring.
- Hardware Counting/Timing: The on‑board 68000 CPU (or equivalent microcontroller) can independently complete time‑consuming tasks such as counting and timing offline, reducing the burden on the host.
- Fast Response: TTL‑level low‑latency I/O, suitable for real‑time control.
- Modular Design: Plug‑and‑play, supporting hot swapping (in compliance with VME‑bus specifications).
- Reliable Industrial‑Grade Packaging: Dust‑proof and moisture‑proof, suitable for harsh environments.
Structure and Composition
- Motherboard: Includes VME‑bus interface circuit, power distribution, and clock/reset logic.
- I/O Expansion Board: Features an 8 × 10‑bit port array. Each port is equipped with an input buffer, output driver, and status flag register.
- Control Chip: The internal microprocessor (such as the 68000 series) is responsible for caching I/O data, counting, and flag processing.
- Connectors: Standard 0.1‑inch pin headers or terminal blocks, facilitating on‑site wiring.
Application Fields
- Industrial automation control systems (PLC, DCS)
- Laboratory data acquisition and test instruments
- Digital signal interfaces for military and avionics systems
- Process control and monitoring (chemical industry, energy sector)
- Any embedded platform requiring a large number of discrete digital I/O
Installation and Maintenance
Installation
Insert the module into the corresponding 6U double‑slot position on the backplane of a VME‑bus compliant chassis. Ensure the card slot latch is in place before powering on.
Wiring
According to the terminal block layout, connect the TTL signal wires to the corresponding ports. Pay attention to maintaining the shielding and grounding of the signal wires.
Configuration
Load the corresponding firmware or driver through the VME‑bus host software to complete the parameter settings such as I/O direction and flag bits.
Maintenance
Regularly check the contact status of the terminal blocks and the dust cover. In case of a fault, use the VME‑bus self‑test function to locate the faulty card. Always power off before replacing the module.
————————————————————————————————————-
