XYCOM XVME-957 Processor Module
XYCOM XVME-957

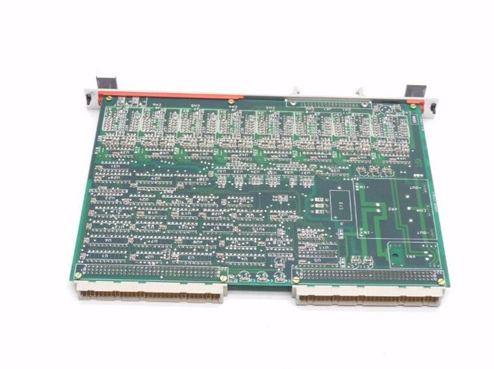

The XYCOM XVME-957 is an industrial-grade high-capacity storage subsystem based on the VMEbus. It is specifically designed to provide hard disk and floppy disk storage for VMEbus PC/AT processor modules such as the XVME-655 and XVME-675. Featuring a double-height slot design, the product occupies only one VME slot and can be directly inserted into a standard VME backplane. It is compatible with operating systems including Windows NT, QNX, and VxWorks.
Main Technical Specifications
- Operating Voltage: 220 V AC ±10%
- Storage Media: 2.5-inch IDE hard disk + 3.5-inch 1.44 MB floppy disk (some models are equipped with a 1.44 MB floppy disk drive)
- Memory: 128 MB DDR3 (for some configurations)
- Temperature Range: -40 °C ~ 85 °C, suitable for harsh industrial environments
- Reliability: MTBF > 100,000 hours, compliant with the IEC 61131-3 industrial standard
- Interfaces: Dual-channel CAN bus, VMEbus master/slave interface, optional RS-422/RS-485 serial ports
Product Features
- High Reliability: Industrial-grade design, wide temperature operating range, and long service life (MTBF > 100,000 hours).
- High Compatibility: Seamless matching with VME PC/AT processor modules such as the XYCOM XVME-655 and XVME-675, supporting multiple real-time operating systems.
- Compact Footprint: Double-height slot design that occupies only one VME slot, saving chassis space.
- Flexible Storage: Provides dual storage of high-capacity IDE hard disks and floppy disks to meet the needs of data backup and rapid recovery.
- Industrial-Grade Power Supply and Protection: 220 V AC input with overvoltage and overcurrent protection, suitable for industrial power environments.
Structure and Composition
- Chassis: Metal protective enclosure, double-height VME slot specification.
- Storage Unit: 2.5-inch IDE hard disk drive and 1.44 MB floppy disk drive.
- Control Circuit: VMEbus interface chip, CAN controller, and power management module.
- Heat Dissipation System: Heat sink and fan (depending on the specific model) to ensure stable operation in high-temperature environments.
Typical Application Fields
- Industrial Automation: Local data storage and log recording for PLC, DCS, and SCADA systems.
- Robot Control: High-speed caching of real-time motion commands and status data.
- Data Acquisition and Monitoring: Historical data archiving for sensor networks and process monitoring systems.
- Image Processing: Local image caching and offline analysis for machine vision systems.
- Petrochemical and Power Monitoring: Providing reliable storage in high-temperature and strong electromagnetic interference environments.
Installation and Maintenance Points
Installation
- Insert the XVME-957 into a double-height slot that meets the VMEbus standard, ensuring the slot latches are properly in place.
- Connect the power cable (220 V AC) and check that the grounding is good.
- According to system requirements, use a standard VMEbus cable to connect to the main processor module.
Configuration
- After starting the system, install the corresponding driver in the operating system (such as Windows NT, QNX). The driver is usually available on the CD provided with the product or via a download link.
- Confirm hard disk recognition in the BIOS/system settings, and perform partitioning and formatting if necessary.
Daily Maintenance
- Regularly check the power supply and heat dissipation devices to ensure the fan operates normally and prevent overheating.
- Monitor the hard disk health status (SMART) and back up data properly to prevent data loss due to hard disk failure.
- Clean the dust inside the chassis to maintain good ventilation.
Troubleshooting
- If the system fails to recognize the hard disk, first check whether the VMEbus connection is secure, then confirm that the power supply is normal.
- For floppy disk drive failures, replace the floppy disk or check the read/write head of the floppy disk drive.
- In case of frequent power failures or error codes, it is recommended to contact the original factory technical support, and provide the product serial number and fault log for remote diagnosis.
————————————————————————————————————-
