XYCOM XVME400

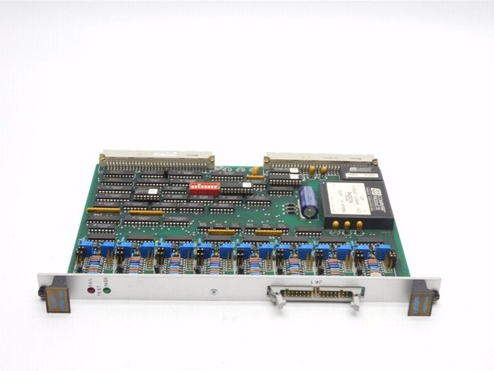

The XYCOM XVME‑400 (along with its counterparts XVME‑401, XVME‑490, and XVME‑491) is a four-channel serial I/O module compliant with the VMEbus (IEEE 1014) standard. They feature a single-height, single-width form factor (XVME‑400/401) or double-height, single-width design (XVME‑490/491), and can be directly inserted into VME‑P1 (single-height) or P1 + P2 (double-height) backplanes. Equipped with two Zilog Z8530 Serial Communication Controllers (SCCs), the modules offer RS‑232C (400/490) or RS‑422A/RS‑485 (401/491) interfaces. They support asynchronous, synchronous, and bit-oriented protocols, with maximum baud rates of 57.6 KB/s (asynchronous) and 500 KB/s (synchronous).

Key Technical Specifications

• Power Requirements: +5 V typ 1.1 A (400/490) / 1.4 A (401/491), +12 V typ 100 mA. Maximum current ratings are 1.3 A (400/490) and 1.6 A (401/491) respectively.
• Operating Temperature: 0 °C ~ 65 °C (operating), -40 °C ~ 85 °C (non-operating).
• Dimensions: Single-height modules 3.9 in × 6.3 in (approx. 99 mm × 160 mm), double-height modules 9.2 in × 6.3 in (approx. 234 mm × 160 mm).
• Interfaces: Four front-panel RS‑232C (400/490) or RS‑422A/RS‑485 (401/491) connectors (JK1, JK2), plus corresponding VME‑P2 connections (490/491).
• Compatibility: Complies with VMEbus A16:D08(O) DTB slave specifications, supporting interrupt vector D08(O) (dynamic) and I(1)-I(7) interrupt signals.

Product Features

• Modular Plug-and-Play: Utilizes standard VME slots and supports hot-swapping, simplifying on-site replacement and maintenance.
• Low Power Consumption & High Heat Dissipation: Incorporates low-power chips and passive cooling structure, ensuring low energy consumption and heat generation for enhanced reliability.
• Multi-Protocol Support: The Z8530 SCC provides multiple communication modes including asynchronous, word synchronous, and bit-oriented, compatible with various industrial protocols.
• Dual Bus Channels: Single-height modules offer direct serial ports via front-panel JK interfaces; double-height modules route I/O to VME‑P2 for easy wiring in high-density chassis.
• Two-Year Warranty: All XVME‑400/401/490/491 series come with a two-year warranty covering parts and labor.

Structure and Composition

• Front Panel: Four serial ports (RS‑232C or RS‑422A/RS‑485), each equipped with RTS, CTS, DCD control signals (DTR available on select models).
• Main Control Board: Two Z8530 SCCs, address/data buffers, bus cycle control, and power regulation modules.
• Backplane Interface: 96-pin VME‑P1 (single-height) or P1 + P2 (double-height) connectors for transmitting address, data, and control signals.
• Power Management: Internal 5 V/12 V voltage regulators meeting VMEbus power supply specifications.
• Heat Dissipation Structure: Combined metal heat sinks and ventilation holes for passive cooling.

Typical Application Areas

• Industrial Automation Control: Serial data acquisition and device communication for PLCs, DCS, and process control systems.
• Test and Measurement Instruments: Multi-channel instrument control for laboratory or on-site testing equipment.
• Aerospace and Defense: Real-time control and data links requiring high reliability.
• Manufacturing Production Lines: Serial interface aggregation for robots, CNC machine tools, and sensor networks.
• Energy and Power: Remote monitoring and command issuance for power plants and distribution automation systems.

Installation and Maintenance Guidelines

• Installation Preparation: Ensure the corresponding VME‑P1 (single-height) or P1 + P2 (double-height) slot in the chassis is empty, and use plastic guide cards to position the module.
• Insertion/Removal Operation: Hold the module with the front panel handle facing down, gently push it into the backplane until all 96-pin connectors are fully engaged, and confirm the latch is secured.
• Power Check: Before powering on, verify that the power voltage is within the range of 5 V ± 5% and 12 V ± 5%, and ensure the current does not exceed the rated value.
• Hot-Swapping Notes: Perform replacement only when the system is in hot-swap mode and the bus is not in critical data transmission to avoid bus errors.
• Troubleshooting: Use VMEbus interrupt vectors and status registers to check the module’s self-test results; in case of communication errors, first inspect the grounding and shielding of RS‑232/RS‑422 cables.
• Regular Maintenance: Remove dust from the module’s heat sinks, check for oxidation on connector contacts, and use contact cleaner if necessary.
