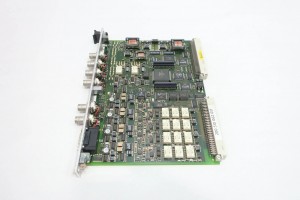

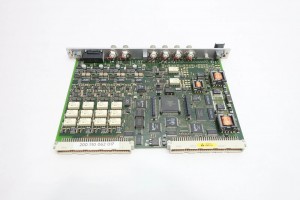

Vibro Meter 200-510-111-013

Vibro Meter 200-510-111-013 is a mechanical protection and vibration monitoring module under Vibro Meter. Featuring a modular design, it can be directly integrated into rotating machinery protection systems or industrial automation platforms. By real-time collecting signals such as vibration, displacement, and rotational speed, it provides machine health diagnosis and fault early warning, helping users achieve high equipment availability and reduced maintenance costs.

Key Technical Specifications

• Size/Installation: DIN rail standard size, compatible with conventional cabinets
• Operating Temperature: -20 ℃ ~ +60 ℃
• Input Channels: 4 dynamic channels (vibration/displacement), 2 auxiliary channels
• Output Mode: Configurable relay output, supporting digital/analog signals
• Sampling Rate: Programmable, meeting high-speed vibration monitoring requirements
• Power Supply: 24 V DC, low power consumption, suitable for on-site installation
• Certifications: Compliant with industry standards, holding CE, ATEX, and other certifications

Product Features

• Early Fault Warning: Real-time monitoring of multiple parameters including vibration and displacement enables early detection of faults.
• Modularity & High Compatibility: Adopts standardized cards, seamlessly connecting with other Vibro Meter series (such as VM600 IOC4, CMC16) and common PLC/DCS systems.
• Multi-channel Density: Single card supports 4 vibration channels, suitable for multi-axis equipment or complex mechanical systems.
• Flexible Output Methods: Supports various industrial communication protocols such as relay, 4-20 mA, and Modbus, facilitating secondary system integration.
• Reliability & Environmental Resistance: Uses high-quality components, ensuring long-term stable operation in harsh industrial environments (high temperature, dust, vibration).

Structure & Composition

• Main Control Board (MPC4): Responsible for signal acquisition, digital signal processing, and fault determination.
• Front-end Sensor Interface: Provides connection points for sensors such as accelerometers, displacement meters, and velocity meters.
• Power Supply/Protection Module: Built-in overvoltage, undervoltage, and short-circuit protection circuits.
• Communication Interfaces: Includes RS-485, Modbus TCP, digital I/O ports, etc.
• Mounting Bracket: Compliant with DIN rail standards, supporting hot-swappable installation.

Typical Application Fields

• Power Plants: Vibration monitoring and early warning for steam turbines and generator sets.
• Petrochemical Industry: Condition monitoring for pumps, compressors, and heat exchangers.
• Heavy Industry & Manufacturing: Key equipment such as large motors, gearboxes, and compressors.
• Marine & Offshore Platforms: Reliable operation of offshore generator sets and propulsion systems.
• Other Scenarios Requiring Machine Health Diagnosis: Key mechanical equipment in industries such as steel, papermaking, and mining.

Installation & Maintenance Guidelines

• Installation: Fix via DIN rail, ensuring the card is placed horizontally. Check if terminal connections are secure before connecting the power supply.
• Wiring: Select corresponding input ports according to sensor types (accelerometer, displacement, etc.). Follow grounding and shielding principles to prevent electromagnetic interference.
• Configuration: Set sampling rate, threshold values, alarm logic, etc., through Vibro Meter’s configuration software (or PLC/DCS parameterization interface). It is recommended to use an oscilloscope or dedicated calibrator for baseline calibration during initial commissioning.
• Daily Inspection: Check power supply and wiring integrity monthly. Regularly review alarm logs to confirm if threshold settings still match equipment operating conditions.
• Maintenance: The module features a solid-state design, requiring basically no component replacement. If an abnormal alarm occurs and self-inspection fails to locate the issue, the entire card can be replaced.
• Safety: Comply with on-site safety regulations; disassemble only after powering off. In environments with high temperature or corrosive media, the use of protective enclosures is recommended.
