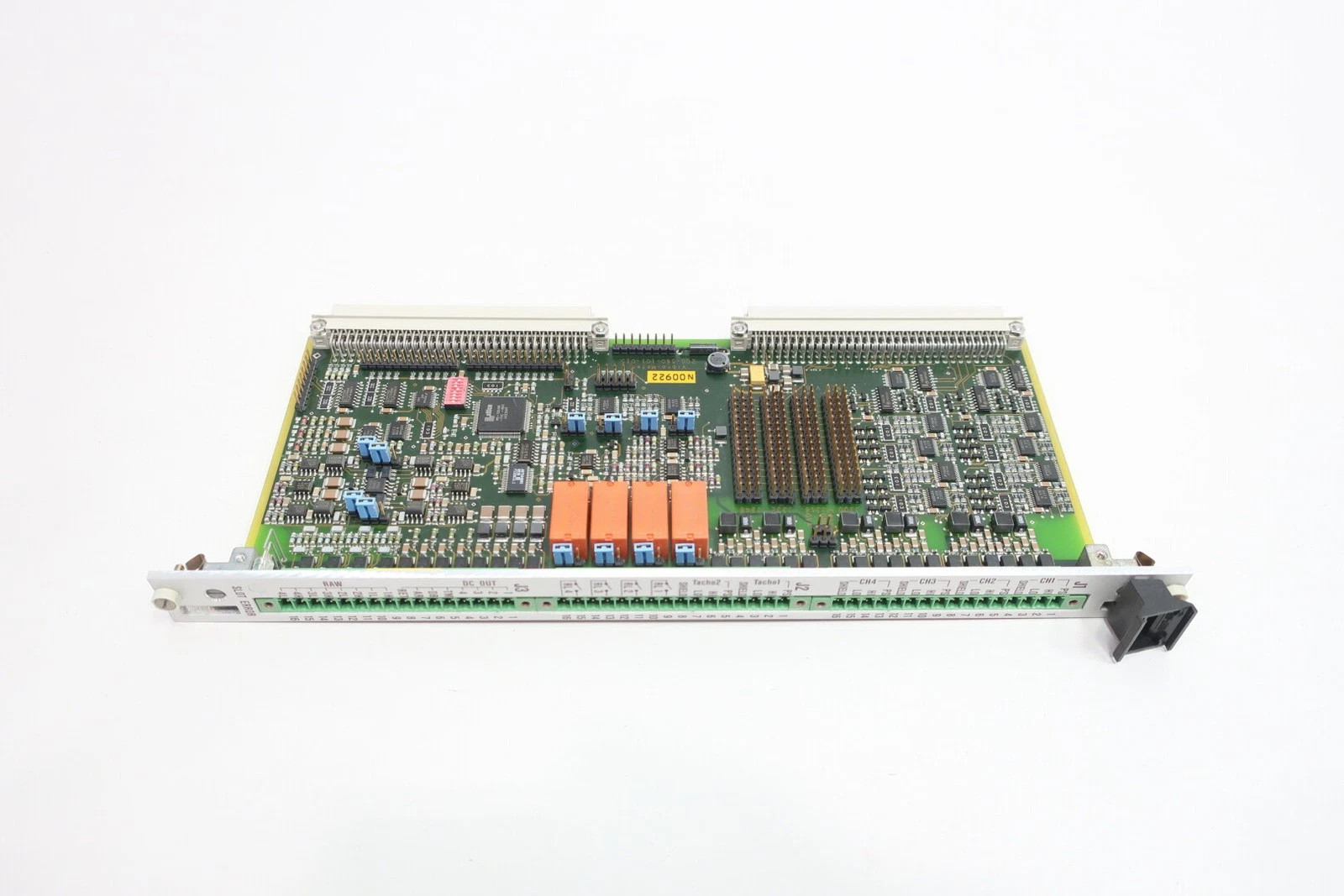

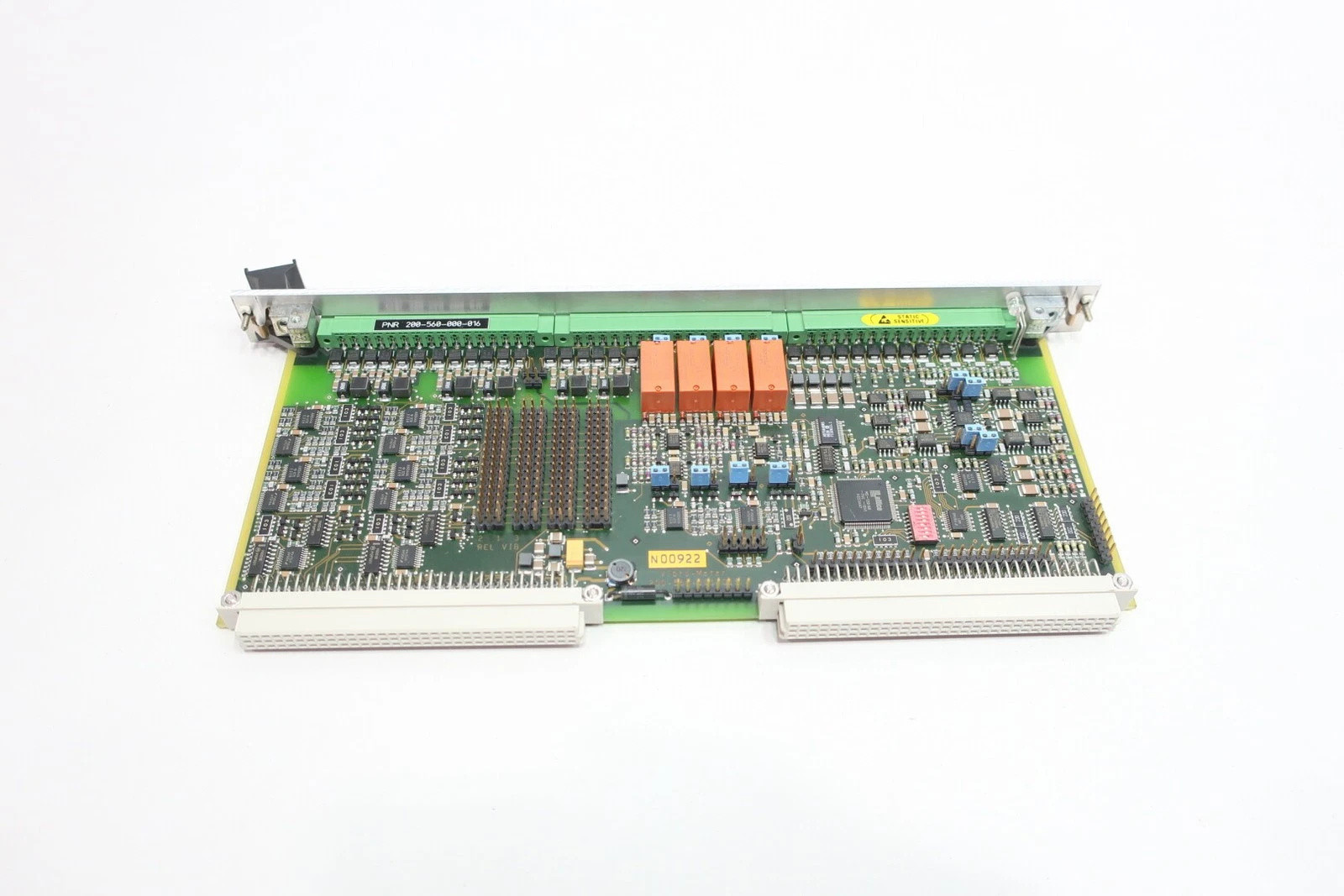

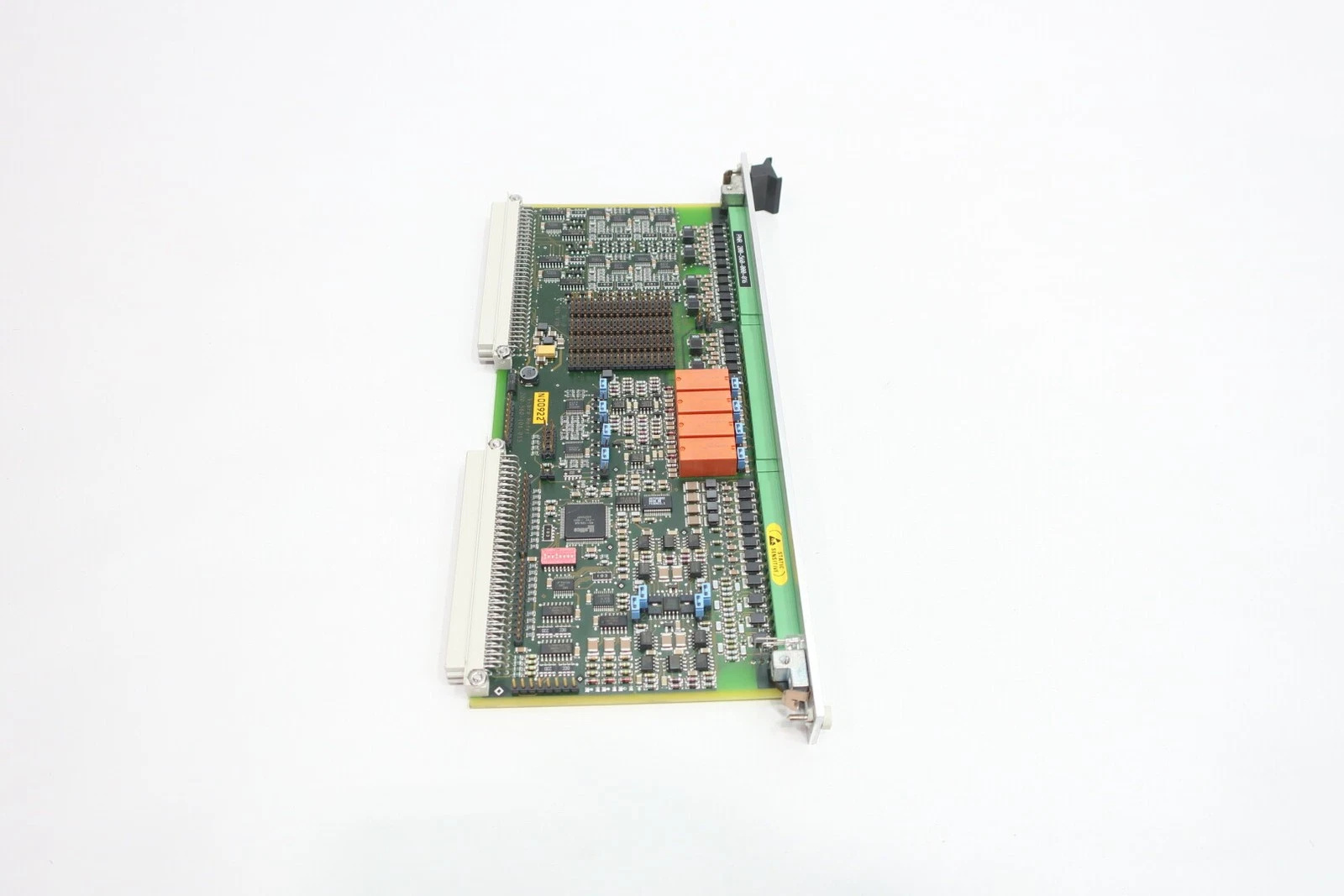

Vibrometer 200-560-000-016 VM600 Series Module
Vibro Meter 200-560-000-016
Overview
Vibro-Meter 200-560-000-016 is a module of the VM600 series under the Vibro-Meter brand owned by Prüfrex. Specifically designed for mechanical protection, it can real-time collect, process, and output mechanical vibration and speed signals, which are used for safety monitoring and fault diagnosis of industrial equipment. This module is often used with the VM600 rack and belongs to the Input/Output Card (IOC4T) type.
Main Specifications
- Model: 200-560-000-016 (compatible with 200-560-101-015)
- Input Channels: 4 dynamic signal inputs + 2 tachometer inputs
- Connection Method: Terminal block, 48-pin screw terminal
- Housing Material: Aluminum alloy; dimensions approximately 130 mm × 130 mm × 70 mm; weight approximately 1 kg
- Installation Method: Flange mounting, can be directly installed on the VM600 rack, also supports wall-mounted or bracket-type on-site installation
- Protection Class: IP67, suitable for harsh industrial environments
- Operating Temperature: 0 °C ~ +65 °C; Storage Temperature: -40 °C ~ +85 °C
Product Features
- High Safety: Adopts advanced fault diagnosis algorithms to detect potential faults in a timely manner and prevent major safety accidents.
- High Reliability: Passes strict testing and certification to ensure long-term stable operation.
- Multi-Channel & High Precision: 4 dynamic channels and 2 speed channels support high-resolution vibration and speed measurement.
- Modular Design: Facilitates quick on-site installation, maintenance, and replacement.
- Strong Anti-Interference: The terminal block connection provides reliable electrical contact, suitable for industrial sites with high noise.
- IP67 Protection Class: Dustproof and waterproof, applicable to humid or dusty environments.
Structure and Composition
- Rack (VM600): Provides power supply, heat dissipation, and mechanical support.
- Input/Output Card (IOC4T): The core signal acquisition and processing unit, including a 48-pin terminal block.
- Signal Front-End Module: Optional interface for accelerometer, velocity sensor, or tachometer.
- Power Supply & Communication Interface: Supports 24 V DC power supply and is compatible with digital signal output of upper systems such as PLC/DCS.
Application Fields
- Oil and Gas
- Chemical Production
- Power Systems
- Metallurgy and Metal Processing
- Manufacturing Industries (e.g., papermaking, food and beverage, textile, rubber)
- Machinery Manufacturing, Automotive, Rail Transit and other industries requiring real-time vibration monitoring
Installation and Maintenance
Installation
Install via flange or screw terminal block, which can be directly inserted into the VM600 rack. Wall-mounted or bracket-type on-site installation is also available. Ensure the card slot and cable routing meet the requirements of the protection class.
Wiring
Connect the sensor signal wires to the corresponding dynamic or speed channels according to the wiring diagram, and use screw terminals to ensure firm connection.
Commissioning
After power-on, configure the channels (sensitivity, filtering, etc.) through the upper computer software, and perform a self-test to confirm all channels are normal.
Daily Maintenance
Regularly check the tightness of the terminal block, clean dust, and confirm the protection cover is intact. Perform anti-corrosion treatment on the housing. Calibrate the sensor when necessary to maintain measurement accuracy.
Troubleshooting
If signal abnormalities occur, first check the wiring, power supply, and terminal contact. If the problem persists, refer to the fault diagnosis manual for module replacement or factory repair.
————————————————————————————————————-
