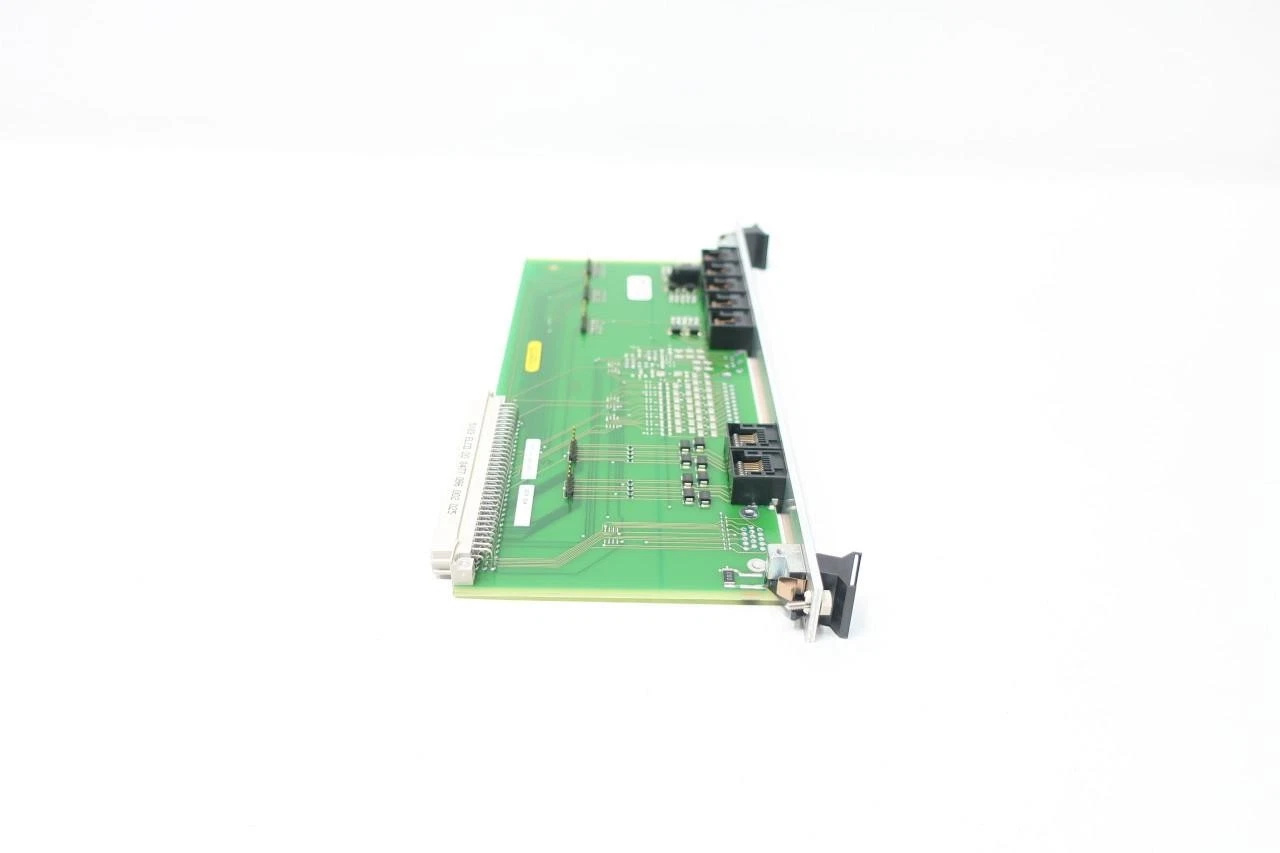

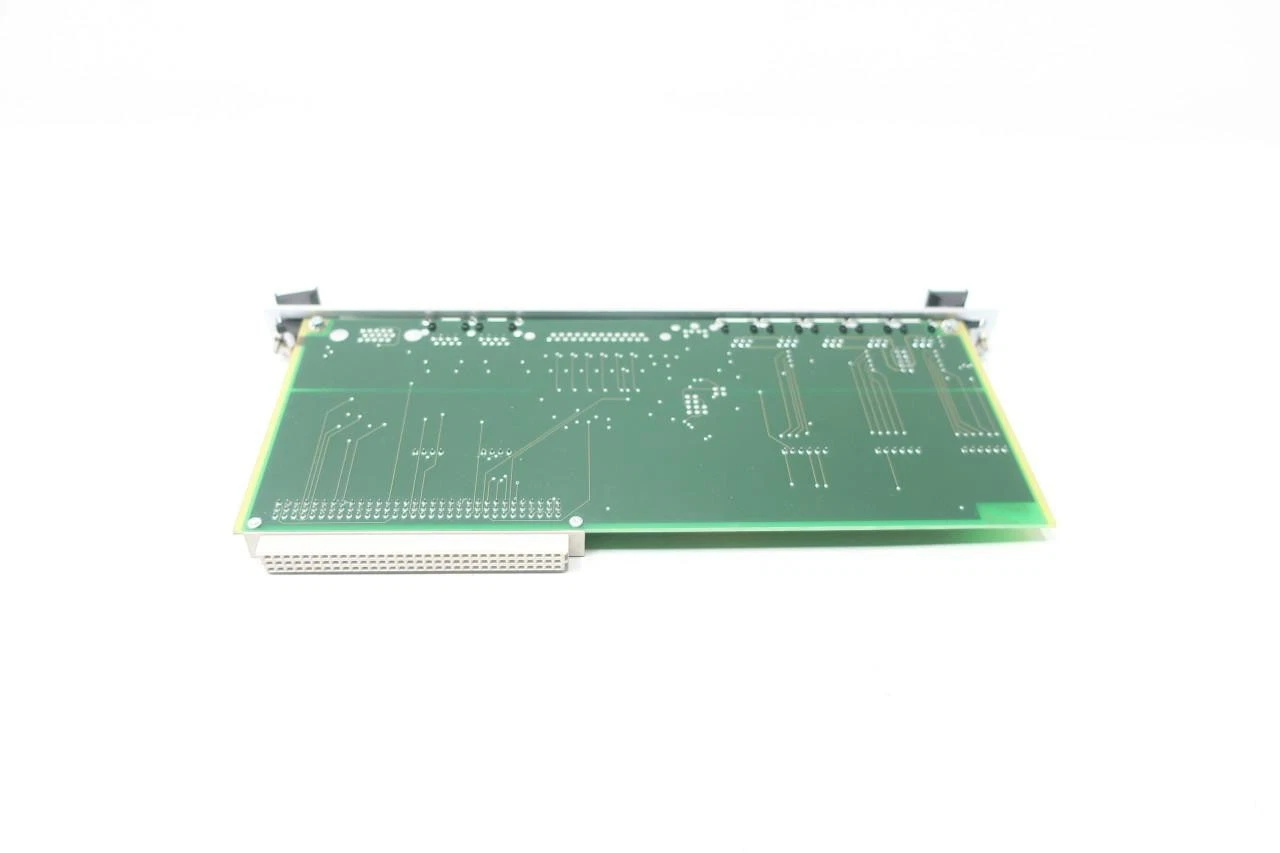

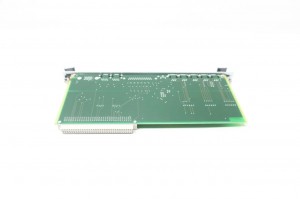

Vibro Meter 200-566-101-013 Digital Input/Output Module
Vibro Meter 200-566-101-013
1. Product Overview
Vibro Meter 200-566-101-013 belongs to the VM600 IOCN (Input/Output Communication Node) series. It adopts a digital input/output module design, enabling direct connection to on-site sensors (IEPE, ICP, Charge Sensor) and data upload to upper computers or SCADA systems via RS485/Modbus, 4-20 mA, or voltage signals. This realizes equipment health monitoring and early warning.
2. Key Technical Specifications
- Model/Part Number: IOCN 200-566-000-112 (Host) + 200-566-101-013 (Module)
- Input Signals: IEPE, ICP, Charge Sensor (optional)
- Frequency Response: 0.5 Hz ~ 20 kHz
- Output Modes: Voltage, 4-20 mA, Digital Signals
- Power Supply: 24 V DC ±10%, Power Consumption < 2.5 W
- Operating Temperature: -20 °C ~ +70 °C; Storage Temperature: -40 °C ~ +85 °C
- Dimensions: 120 mm × 100 mm × 45 mm; Weight: Approximately 0.5 kg
- Mounting Method: DIN rail or panel mounting, supporting modular stacking
- Protection Class: IP20, compliant with industrial standards such as IEC, UL, and CE
- Communication Interface: Optional RS485/Modbus; Ethernet (optional)
3. Product Features
- High Precision & Wide Frequency Band: The measurement range of 0.5 Hz – 20 kHz covers low-frequency mechanical vibration to high-frequency impact, meeting the needs of various equipment.
- Modular Flexibility: I/O channels can be added or reduced based on on-site requirements. It supports both DIN rail and panel mounting for easy system expansion.
- Multiple Outputs: Simultaneous provision of analog voltage, 4-20 mA, and digital Modbus, compatible with traditional control systems and modern industrial Internet platforms.
- Low Power Consumption Design: Typical power consumption < 2.5 W, suitable for long-term on-site monitoring.
- Reliability: Industrial-grade housing and protection design, resistant to interference and temperature fluctuations, suitable for harsh environments.
4. Structure & Composition
- Host (IOCN 200-566-000-112): Provides power supply, communication bus, and module slots.
- Function Module (200-566-101-013): Includes 4 dynamic input channels, 2 auxiliary channels, configurable digital output relays, and signal conditioning circuits.
- Connection Terminals: Dedicated terminals for sensor connection, supporting screw crimping or quick clamping.
- Indicators: Power, communication, and fault indicators for quick on-site diagnosis.
5. Typical Application Fields
- Vibration monitoring of steam turbines and generator sets in power plants
- Pumps, compressors, and centrifuges in oil and gas refining facilities
- Mixing tanks, conveyors, and bearing systems in chemical production lines
- CNC machine tools and stamping equipment in mechanical manufacturing workshops
- Other industrial equipment requiring condition monitoring (e.g., fans, screw conveyors, etc.)
6. Installation & Maintenance Guidelines
Installation
- Select DIN rail or reserved panel slots to ensure the module is firmly fixed.
- Use shielded cables for sensor wiring to avoid electromagnetic interference; fasten the connection terminals securely.
- Connect the power cable to a 24 V DC power supply and energize after checking the polarity.
Commissioning
- Confirm normal module communication (RS485/Modbus) via upper computer or handheld debugger.
- Calibrate sensor sensitivity and perform zero correction based on the reference values recommended by the equipment manufacturer.
Daily Maintenance
- Regularly check the connection terminals for looseness and corrosion.
- Clean dust on the module surface to maintain heat dissipation and ventilation.
- Perform a functional self-test every six months, record the status of fault indicators, and update the firmware (if available).
Troubleshooting
- Communication Abnormality: Check the RS485 bus termination resistor and cable shielding; confirm consistent baud rate settings.
- Sensor Failure: Perform a self-test on the module before replacing the sensor to confirm if the input channel is normal.
- Power Failure: Verify the output of the 24 V DC regulated power supply and check the fuse or overcurrent protection.
————————————————————————————————————-
