Vibro Meter 200-570-101-014 Vibration Measurement Module
Vibro Meter 200-570-101-014

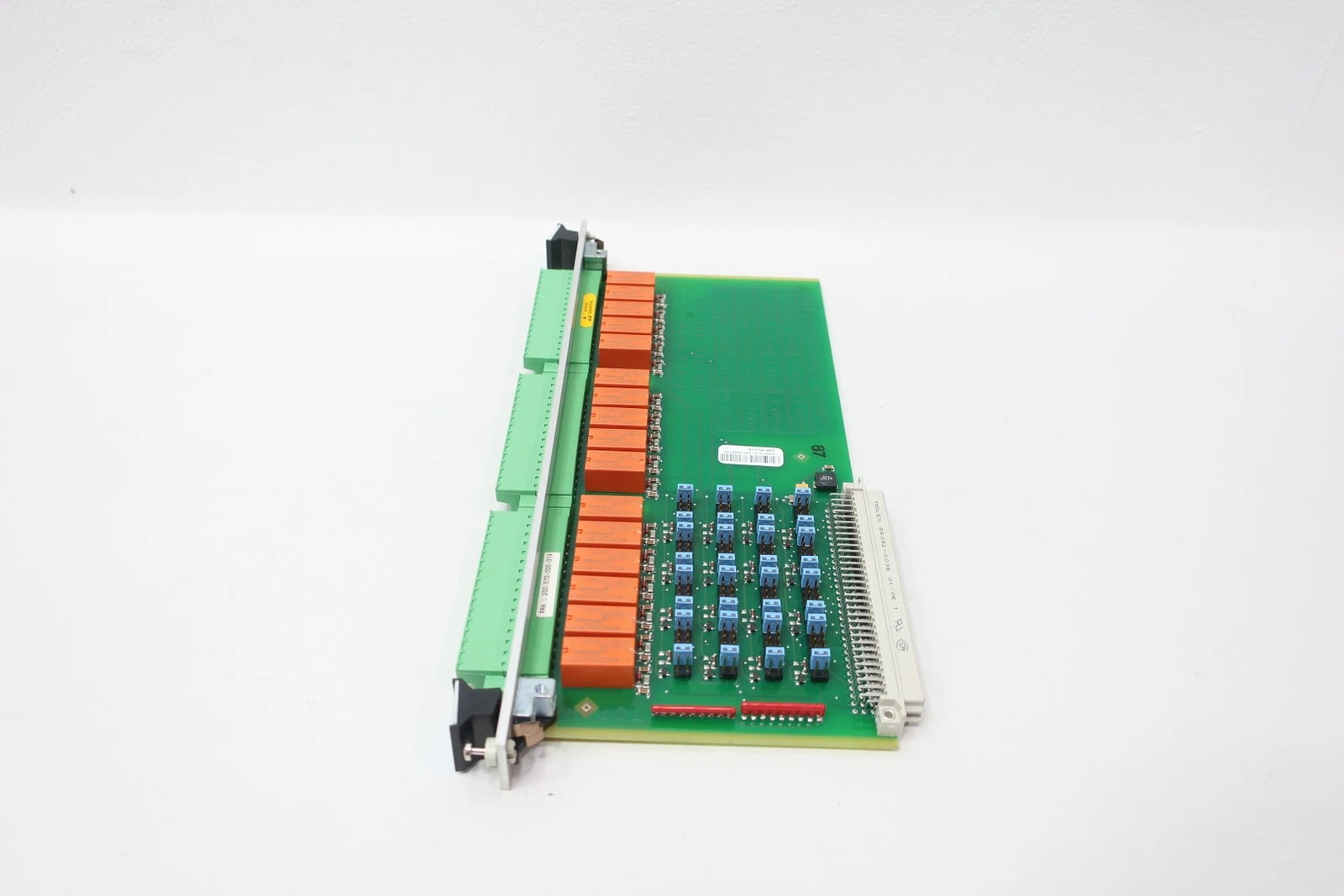

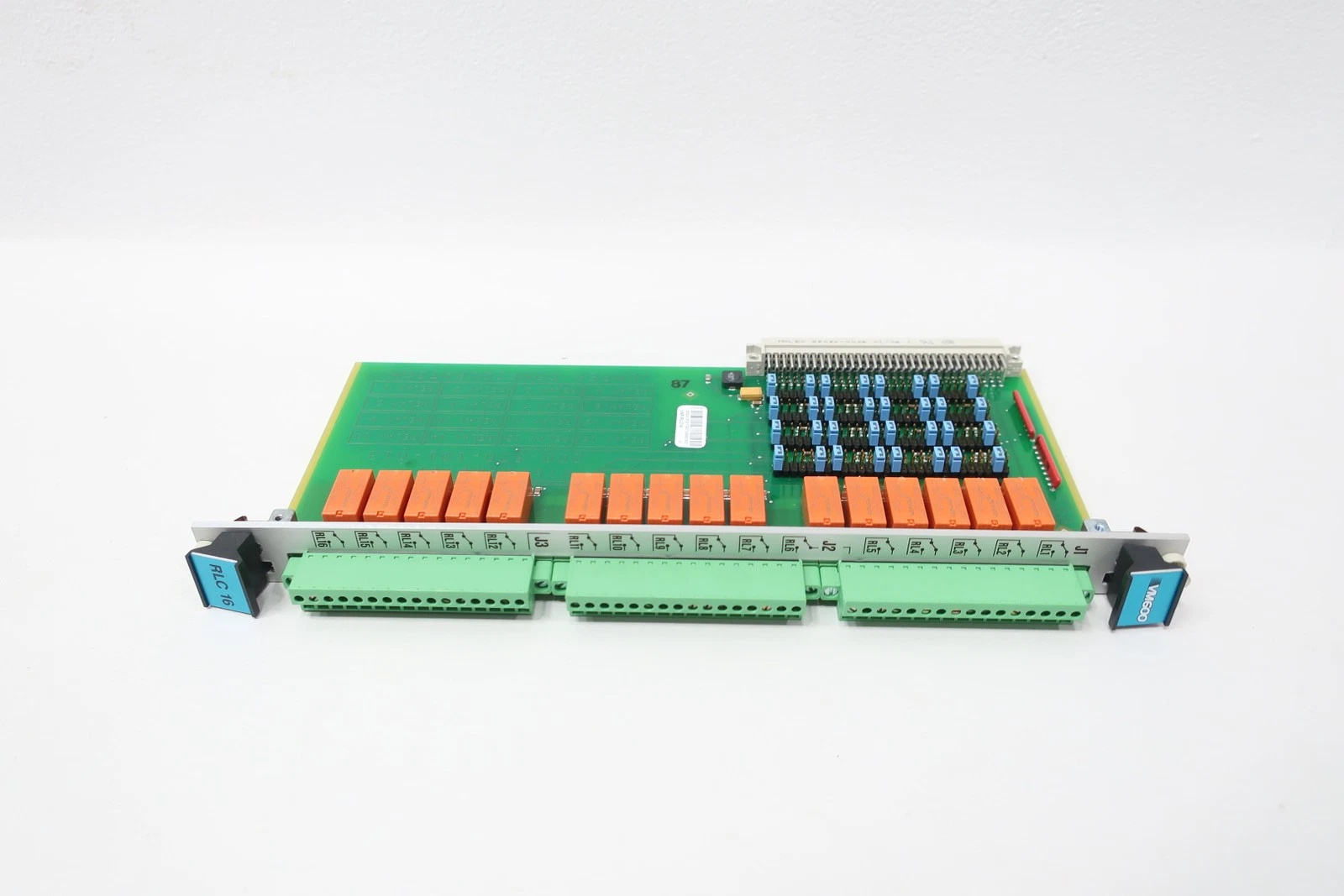

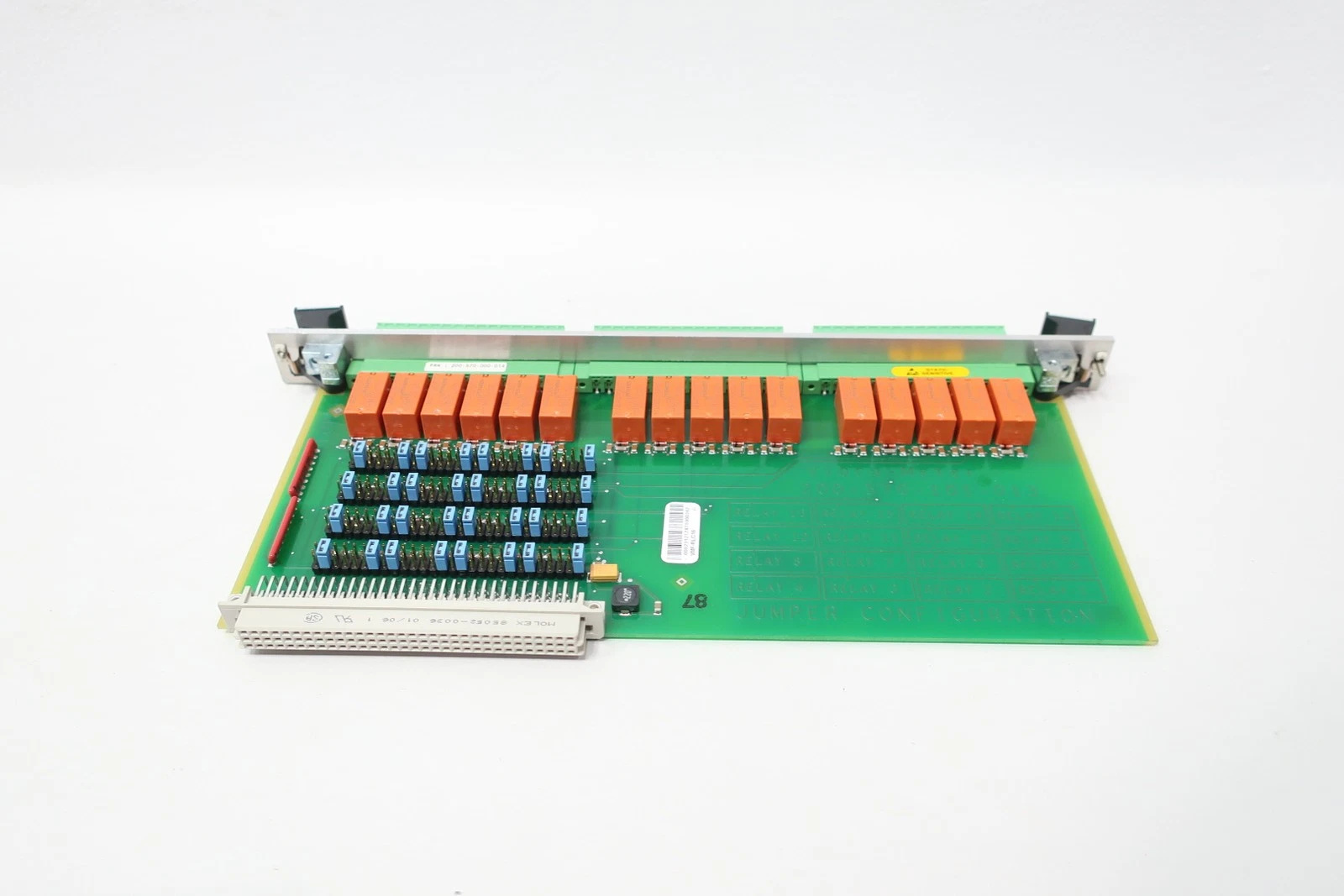

Vibro-Meter 200-570-101-014 is a vibration measurement module belonging to the VM600 series, specifically designed for condition monitoring of rotating machinery in industrial settings. Built on the 1900 series platform, it integrates digital signal processing (DSP) technology to real-time collect, analyze, and transmit vibration data, enabling fault diagnosis and predictive maintenance.
Key Specifications
- Measurement Range: Vibration velocity up to 1000 mm/s, acceleration up to 50 g
- Resolution: 16-bit ADC for high-resolution measurements
- Frequency Response: Wide frequency band, suitable for low to high-frequency vibration monitoring
- Power Supply: 24 V DC, compliant with industrial on-site power standards
- Communication Interface: RS-485 (with NAMUR-compliant relay functionality) for remote alarm and status transmission
- Protection Class: IP65, dust and water resistant for harsh environment adaptation
- Operating Temperature: -10 ℃ ~ +60 ℃
Product Features
- High Precision & Sensitivity: Equipped with 16-bit ADC and low-noise front-end circuitry, ensuring measurement error within ±1%.
- Modular Design: Flexible combination with other VM600 series modules (e.g., temperature, pressure, flow) to expand I/O channels.
- NAMUR Compliance: Relay outputs compatible with on-site instrument systems, supporting two-level alarms and maintenance information transmission.
- Compact & Lightweight: Miniaturized design facilitates on-site installation and mobility.
- User-Friendly Interface: Intuitive local display and buttons for on-site data collection, storage, and export.
- High Reliability: DSP technology enhances anti-interference capability, suitable for high-noise industrial environments.
Structure & Composition
- Main Unit: Includes sensor interface, ADC, DSP chip, communication module, and power management system.
- I/O Interfaces: Multiple vibration sensor (accelerometer/velocimeter) inputs, relay outputs, and RS-485 communication port.
- Mounting Bracket: Standard threaded base for secure installation on equipment bases or enclosures.
- Power Module: Internal voltage regulation circuit accepting 24 V DC power supply.
Typical Applications
- Steam turbines and gas turbines in power plants
- Pumps, compressors, and centrifuges in petrochemical industry
- Rotating equipment in heavy industries such as steel, coal, and mining
- Transportation (e.g., marine main engines, rail vehicles)
- Any scenario requiring vibration health monitoring of rotating machinery
Installation & Maintenance Guidelines
- Installation Location: Mount sensors close to key components like measured bearings or machine bodies, ensuring rigid fixation to avoid errors from loosening.
- Wiring: Follow the module wiring diagram to correctly connect vibration sensors, power cables, and RS-485 bus; verify protective grounding.
- Calibration: Perform zero-point calibration before initial use; conduct regular functional verification with standard vibration sources.
- Software Configuration: Set measurement range, alarm thresholds, and data sampling rate via VM600 upper computer software.
- Daily Inspection: Regularly check the integrity of the protective housing, cable wear, and relay output functionality.
- Fault Diagnosis: Built-in fault log accessible via RS-485 for download and analysis on upper computer systems.
————————————————————————————————————-
