Vibro Meter 200-570-101-013 Vibration Monitoring Module

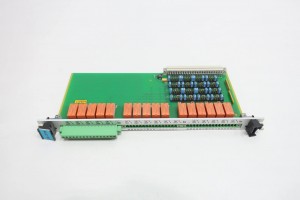

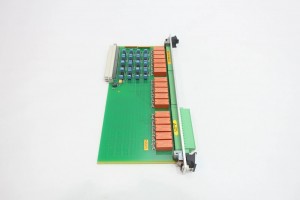

Vibro Meter 200-570-101-013
Overview
This model belongs to Vibro‑Meter’s VM600 series, specifically designed to provide high-sensitivity vibration monitoring for rotating machinery, pumps, fans, and similar equipment. It features a 16-bit high-resolution ADC, boasting a wide frequency band (2 Hz–10 kHz) and low noise performance for accurate measurement of vibration velocity, acceleration, and displacement. The modular design enables flexible combination, supporting remote alarm, data logging, and multi-channel acquisition.
Key Specifications
- Model: 200‑570‑101‑013
- Input Channels: 4 analog channels
- Digital Output: 4 configurable relay outputs
- Measurement Range: Vibration velocity up to 1000 mm/s, acceleration up to 50 g
- Sampling Rate: Configurable to meet high-speed signal capture requirements
- Operating Temperature: -20 ℃ ~ +70 ℃; Storage Temperature: -20 ℃ ~ +85 ℃
- Dimensions/Weight: Approximately 140 mm × 105 mm × 40 mm, 0.5 kg
- Power Supply: DC 5-30 V, maximum output current 0.5 A (≤ 0.8 A per 4 points)
Product Features
- High-Precision Measurement: 16-bit ADC combined with digital signal processing technology enables multi-dimensional analysis of frequency, amplitude, phase, and other parameters.
- Multi-Channel Acquisition: Connects to multiple sensors simultaneously to meet complex monitoring needs.
- Flexible Configuration: Customize sampling rate, alarm thresholds, output logic, etc., via supporting software.
- Powerful Data Processing: Built-in algorithms for spectrum, envelope, and time-domain statistics, supporting real-time diagnosis.
- Industrial-Grade Reliability: Anti-interference and anti-vibration capabilities, compliant with NAMUR relay standards, suitable for harsh environments.
- Remote Alarm: Configurable alarm time, distance, and detection direction, supporting network or local relay output.
Structure and Composition
- Main Unit Module: Includes ADC, DSP, communication interfaces (Ethernet/RS‑485), and power management.
- Analog Input Card: 4-channel analog signal acquisition, compatible with 4-20 mA and 0-10 V interfaces.
- Digital Output Card: Configurable relay or transistor outputs for triggering alarms or controlling external devices.
- Housing: Metal or high-strength plastic housing with protection level meeting industrial on-site requirements.
- Software Platform: PC client or web interface for parameter setting, data visualization, and report generation.
Application Fields
- Vibration monitoring of rotating machinery in power plants, oil and gas refineries, and chemical production lines.
- Vibration early warning for key equipment such as pumps, fans, and compressors.
- Structural health monitoring of bridges and buildings (via acceleration/displacement sensors).
- Condition monitoring of precision machine tools and automated production lines.
- Any industrial scenarios requiring real-time vibration analysis to prevent equipment failures.
Installation and Maintenance Guidelines
- On-Site Wiring: Ensure analog signal lines are well-shielded to avoid electromagnetic interference; use IEC-standard wiring for power cables.
- Calibration: Perform zero calibration and sensitivity calibration after installation using manufacturer-provided calibration tools or standard vibration generators.
- Parameter Configuration: Set sampling rate, alarm thresholds, and output logic via software; verify on a test bench before on-site deployment.
- Regular Inspection: Check connection tightness, housing integrity, and sensor status every 6 months; replace aged sensors or cables if necessary.
- Firmware Upgrade: Monitor manufacturer-released firmware versions and update promptly to access new features and security patches.
- Fault Logging: Use the built-in logging function to store alarm and diagnostic data for later analysis and traceability.
————————————————————————————————————-
