Bently Nevada 3500-61 Pwa 163179-02G Electronic Module

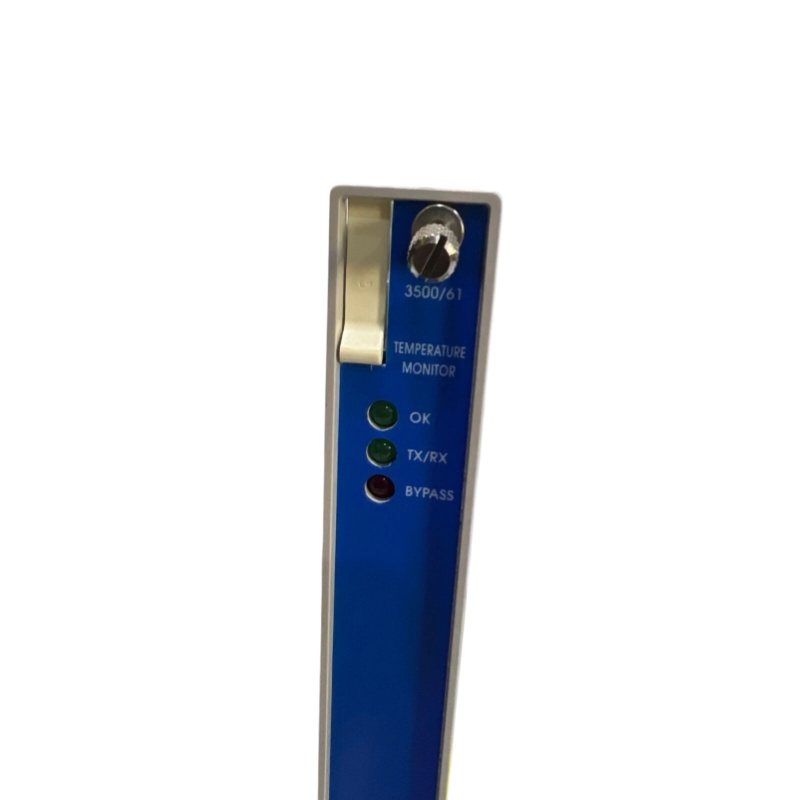

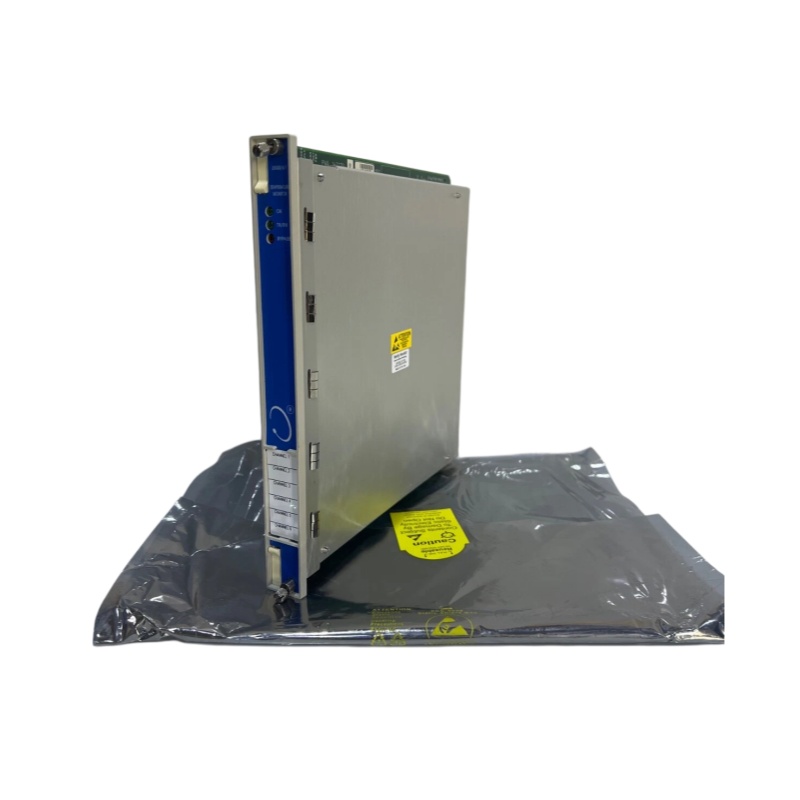

Bently Nevada 3500-61 Pwa 163179-02G
1. Overview
Bently Nevada 3500-61 Pwa 163179-02G This is an electronic module for process variable monitoring, usually installed in the 3500/61 mainframe rack. It is a standard component in the Bently Nevada 3500 series monitoring system, used to monitor the temperature of industrial equipment (such as bearings, oil tanks, generator sets, etc.).
______________________________________________________________________________________________
2. Core Parameters
|
Parameter
|
Description
|
|---|---|
|
Number of Channels
|
6 channels, each channel supports independent temperature monitoring
|
|
Sensor Type
|
Compatible with two types of inputs: RTD (Resistance Temperature Detector) and Thermocouple
|
|
Output Signal
|
Digital output (usually 4-20 mA or 0-10 V digital signal) with status light indication
|
|
Operating Voltage
|
24 V DC
|
|
Operating Temperature Range
|
-40°C to 85°C (environmental adaptation range)
|
|
Size/Weight
|
Approximately 140mm × 112mm × 76mm, weight about 1.8 kg
|
______________________________________________________________________________________________
3. Product Features
- High-precision Monitoring: The measurement accuracy can reach ±0.1%, which can capture small temperature fluctuations and ensure the safe operation of equipment.
- Multi-functional Alarm: Supports setting upper/lower temperature thresholds, which can trigger alarms or shutdown protection when the temperature is abnormal.
- Modular Design: Compact structure, easy to install in the 3500/61 rack, facilitating quick on-site replacement and maintenance.
- Strong Compatibility: Supports standard 4-20 mA analog output, which can be compatible with various industrial control systems.
______________________________________________________________________________________________
4. Structure and Composition
- Temperature Input Terminals: Used to connect RTD or thermocouple sensors.
- Electronic Processing Unit: Integrates A/D converter and microprocessor internally for signal collection and processing.
- Digital Signal Output Interface: Used to transmit the monitored temperature data to the mainframe or PLC.
- Status Indicator Light: Used to display the working status or fault indication of the module.
______________________________________________________________________________________________
5. Main Application Fields
- Power Industry: Temperature monitoring of key equipment such as generator sets, steam turbines, and transformers.
- Petrochemical Industry: Monitoring of heat-prone parts such as compressors, pumps, centrifuges, and oil tanks.
- General Industry: Temperature protection of mechanical equipment such as motors, gearboxes, and bearings.
______________________________________________________________________________________________
6. Installation and Maintenance Recommendations
- Installation Position: It should be installed in the designated slot of the 3500/61 mainframe to ensure close combination with the rack to avoid the impact of vibration.
- Electrical Wiring: Follow the wiring diagram on the backplane of the module to connect the sensor and power cord, and pay attention to distinguishing the wiring polarity of RTD and thermocouple.
- Regular Calibration: It is recommended to calibrate the sensor once a year or every two years to maintain the high precision of ±0.1%.
- Troubleshooting: The diagnostic alarm of the monitoring system (such as light flashing) can usually indicate module failure or sensor open/short circuit, which needs to be checked in time.
————————————————————————————————————-
