Bently Nevada PWA 138607-01AB Data Interface Module
Bently Nevada PWA 138607-01AB

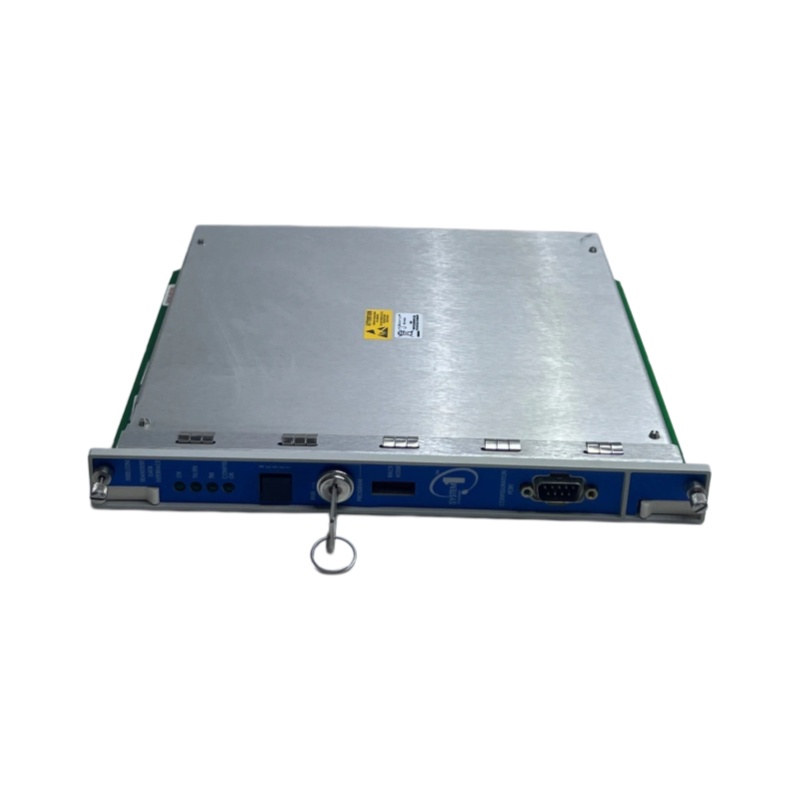

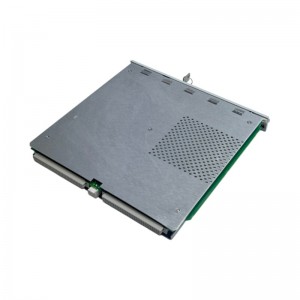

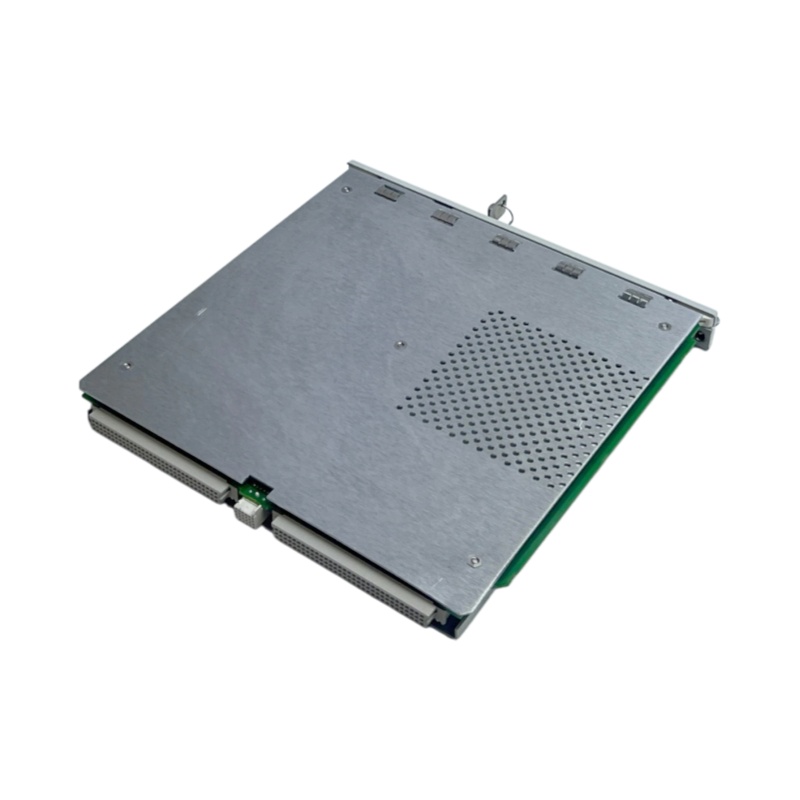

The 138607-01AB is a key data interface module in the Bently Nevada 3500 series monitoring system. It is mainly responsible for digitizing the on-site collected machine operation data (such as vibration, temperature, pressure, etc.) and transmitting it to the upper computer or cloud platform in real time for analysis through various industrial communication protocols (such as Ethernet, field bus).
______________________________________________________________________________________________
1. Core Parameters
|
Parameter Item
|
Specific Specifications
|
|---|---|
|
Model
|
3500/22M 138607-01AB (partially marked as 138607-01)
|
|
Power Consumption
|
10.5 Watts
|
|
Interface Type
|
USB-B, 10Base-T/100Base-TX Ethernet, 100Base-FX Fiber Optic Ethernet
|
|
Data Rate
|
Supports high-speed data transmission
|
|
Operating Temperature
|
-20℃ – 70℃
|
|
Storage
|
Equipped with data buffering function, supporting Transient Data recording
|
|
Dimensions
|
138mm x 138mm x 25mm (refer to similar module specifications)
|
______________________________________________________________________________________________
2. Product Features
- High Reliability: Adopts industrial-grade design with high protection level, capable of adapting to harsh industrial environments (such as high humidity, dust, vibration).
- High Performance: Can collect a large amount of data in real time, with strong data processing and caching capabilities, supporting fast transmission.
- Multi-Protocol Compatibility: Supports multiple communication methods such as USB, Ethernet and optical fiber, and can be seamlessly integrated with various PLC/DCS systems.
- Easy Integration: Specifically designed for the 3500 series monitoring system, with simple installation and convenient expansion of monitoring points.
______________________________________________________________________________________________
3. Structure and Composition
- Power Module: Supplies power to the module itself and external sensors.
- Signal Conditioning Module: Performs amplification, filtering, shaping and other processing on analog input signals.
- Data Processing Chip: The core Digital Signal Processor (DSP), responsible for calculation and data packaging.
- Communication Interfaces: Including RJ45 Ethernet port and USB interface.
- Front Panel Indicators: Status indicators (OK, TX/RX, TM) are used to monitor the module operation status.
______________________________________________________________________________________________
4. Application Fields
- Power Plants: Monitor key equipment such as steam turbines, generator sets and pumps.
- Petrochemical Industry: Monitor compressors, reactors, pipelines, etc.
- Aerospace: Monitor engines and transmission systems.
- Heavy Machinery: Such as large-scale manufacturing equipment, mining machinery, etc.
______________________________________________________________________________________________
5. Installation and Maintenance
- Installation: The module is usually installed in the Bently Nevada 3500 series rack. Ensure that the module is locked after being inserted into the rack, and the power cord and communication line are connected properly.
- Maintenance: It has an industrial-grade protection design. Daily maintenance mainly checks the firmness of the wiring and the cleanliness of the environment; the module itself usually does not require frequent disassembly and maintenance.
————————————————————————————————————-
