ABB 3BSE011180R1 SE071005AK PM511V08 Processor Module
ABB 3BSE011180R1 SE071005AK PM511V08
Overview

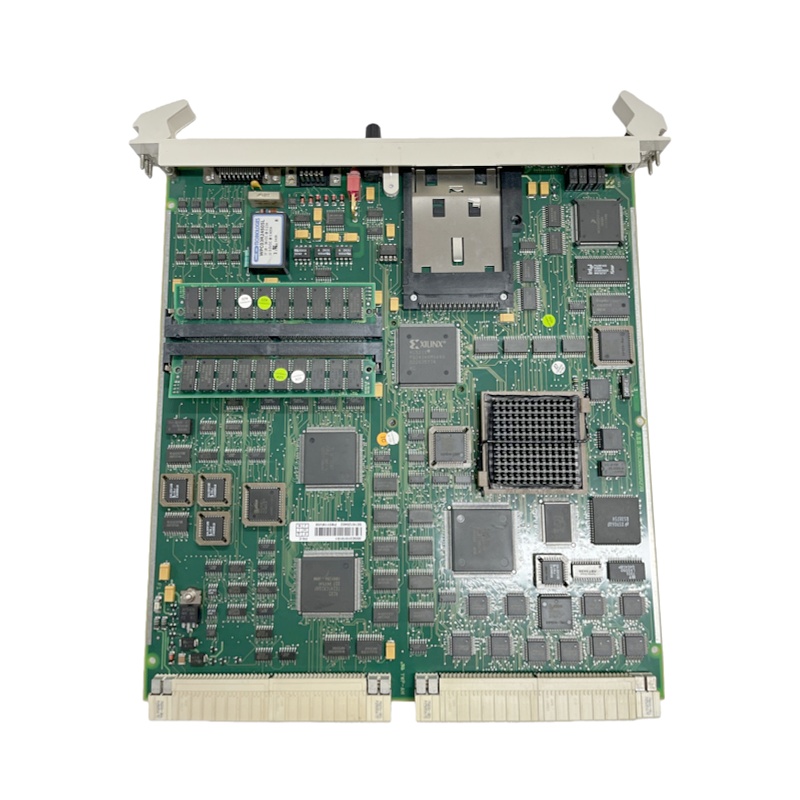

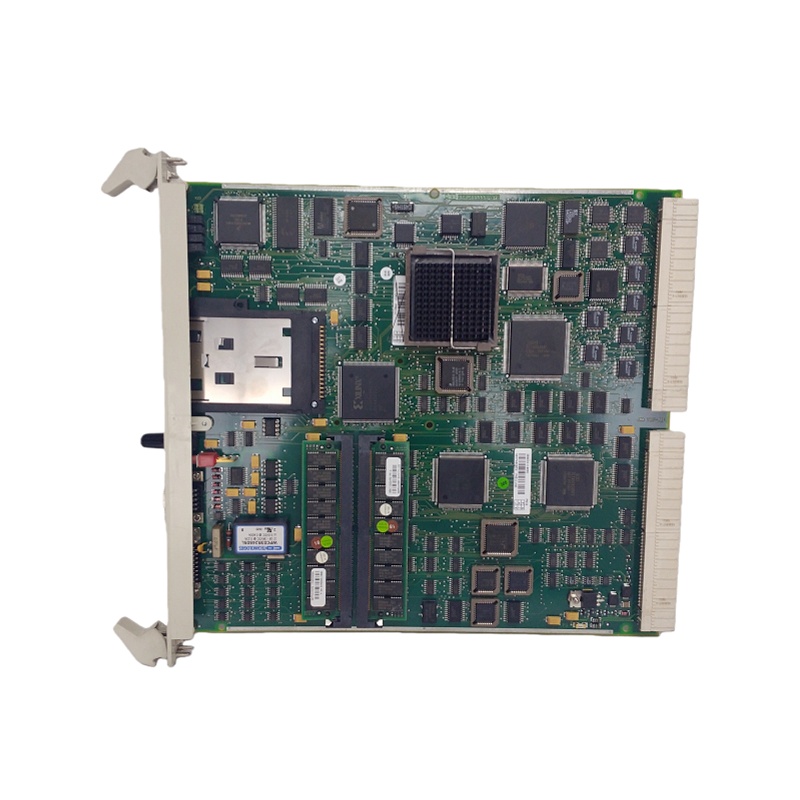

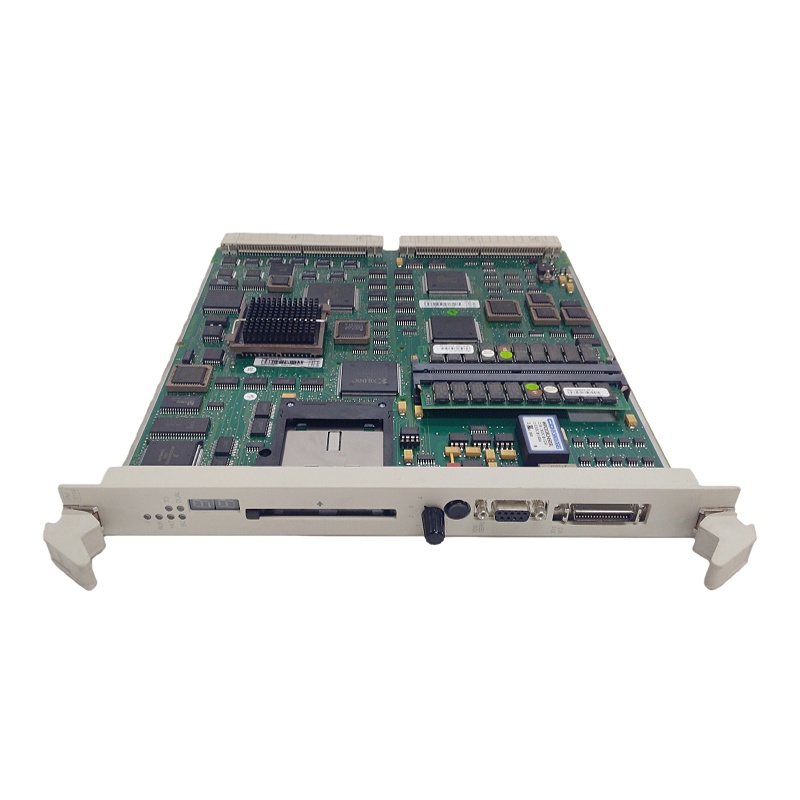

ABB PM511V08 (Part Number: 3BSE011180R1) is a high-performance processor module belonging to the ABB Advant OCS series. Engineered for industrial automation, process control, smart grid, and other critical scenarios, it boasts robust data processing capabilities and multi-protocol communication functionality.
Specifications
- Operating Voltage: 24 V DC, with a current consumption of approximately 0.5 A
- Processor: High-performance Motorola 68040 (or equivalent)
- Dynamic RAM: 8 MB with ECC (Error Correction Code) verification
- Storage: 64 MB Flash memory (replaceable via PCMCIA slot)
- Communication Interfaces: Ethernet, RS‑232, RS‑422/485, Modbus RTU, etc.
- Operating Temperature Range: -20 °C to +60 °C
- Dimensions: Approximately 100 mm × 50 mm × 30 mm, with a weight of around 200 g
Product Features
- High Performance: Equipped with a high-speed processor, it supports multi-channel analog communication and meets the demands of complex control tasks.
- Reliability: Features ECC memory, linear photoelectric isolation, and shock/vibration-resistant design, making it suitable for harsh industrial environments.
- Scalability: Comes with a PCMCIA slot that allows for functional expansion via flash memory card insertion.
- Easy Maintenance: The compact module supports hot-swapping for low maintenance costs, and detailed installation and maintenance guidelines are provided.
Structure and Components
- Central Processing Unit (CPU)
- Dynamic RAM and Flash storage areas
- PCMCIA slot (for flash memory cards)
- Multiple communication interfaces (Ethernet, RS‑232, RS‑422/485)
- 24 V DC power input module
- Enclosure and heat dissipation structure (compliant with industrial protection standards)
Application Fields
- Industrial automation control systems
- Process control and monitoring (e.g., power plants, substations and distribution stations)
- Smart grids and energy management
- Machine control and robotic systems
- Field instruments requiring high-precision analog data acquisition
Installation and Maintenance
Pre-installation Preparation
Ensure the control cabinet power is disconnected and verify that the DIN rail is securely fastened.
Wiring Key Points
Use shielded twisted-pair cables for Ethernet connections, with the shield grounded at a single point to reduce electromagnetic interference.
Software Verification
Utilize ABB Control Builder M to check module recognition, firmware version, and IP configuration.
Routine Maintenance
- Regularly clean dust inside the control cabinet to ensure proper ventilation and heat dissipation.
- Inspect the tightness of the backplane bus and connecting wires to prevent loosening or corrosion.
Troubleshooting
Locate anomalies through the module’s self-test function and diagnostic logs. If necessary, replace the PCMCIA flash memory card or reflash the firmware.
————————————————————————————————————-
