ABB REF630 1KHL160003R0001CR Measurement and Control Device
ABB REF630 1KHL160003R0001CR
1. Overview
The REF630 is a feeder protection and control device belonging to the ABB Relion® 630 series, which is specially designed for medium-voltage distribution networks and industrial power distribution systems. It provides comprehensive protection, measurement, monitoring and control functions, and supports communication protocols such as IEC 61850 and DNP3, enabling seamless integration with substation automation systems.
2. Technical Parameters
- Power Supply: 100–240 V AC or 48–250 V DC
- Operating Frequency: 50/60 Hz
- Analog Inputs: 4 current channels (1 A or 5 A) + 1 voltage channel
- RTD/mA Inputs: 8 channels
- Analog Outputs: 4 channels of 4‑20 mA
- Digital Inputs: 8 configurable channels
- Digital Outputs: 6 channels (including trip and alarm contacts)
- Measurement Accuracy: ±2 % for current, ±0.5 % for voltage
- Operating Temperature: -25 °C to +55 °C; Storage Temperature: -40 °C to +85 °C
- Weight: Approximately 3.5 kg
3. Product Features
- Scalable Functions and Flexible Configuration: Supports a variety of preset configurations, and functional modules can be added or removed according to user requirements.
- Multiple Protection Functions: Including directional earth fault, maximum current, thermal overload, phase unbalance, phase-to-phase short circuit, etc.
- High-Speed Fault Location: Suitable for radial, ring and mesh distribution structures.
- Rich I/O Interfaces: 8 RTD/mA inputs, 4 analog outputs and 6 digital outputs to meet complex on-site requirements.
- IEC 61850 Compatibility: Supports horizontal messaging such as GOOSE and MMS to achieve substation interoperability.
4. Structure and Composition

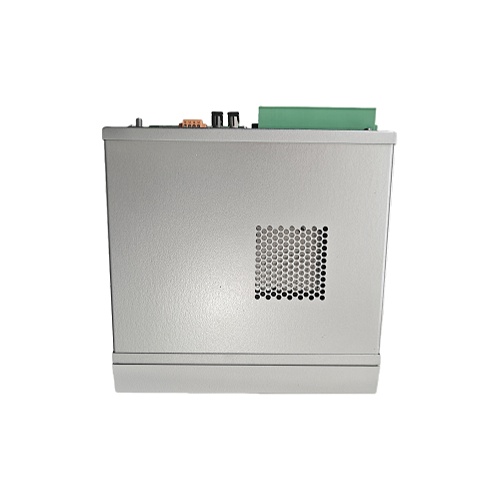

- Main Unit: Can be installed in 19-inch relay cabinets, wall-mounted or semi-flush enclosures.

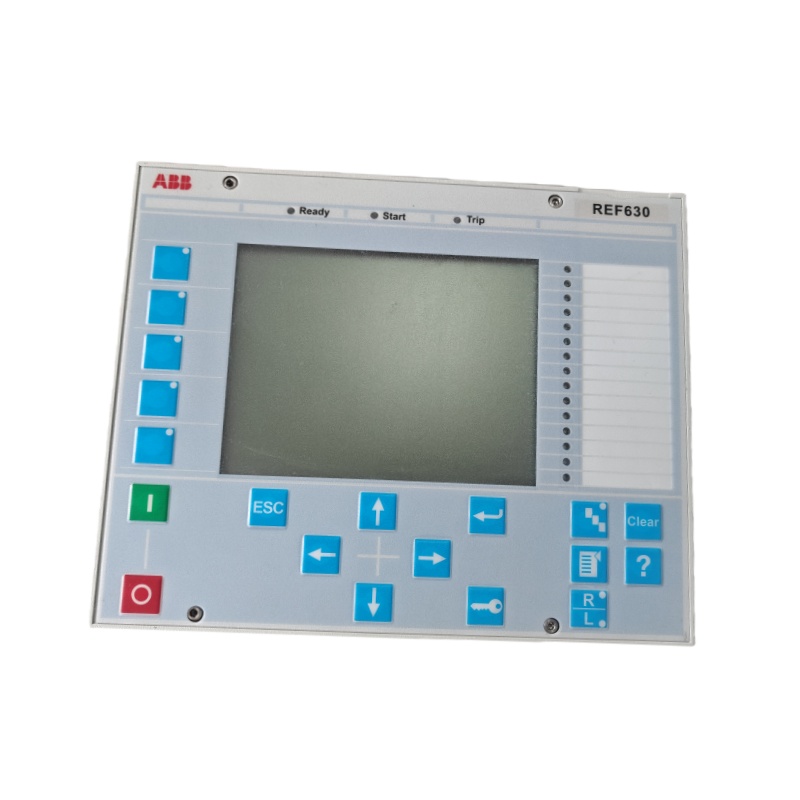

- Front Panel: Equipped with a graphic LCD screen, function keys and programmable buttons, providing a local operation interface.

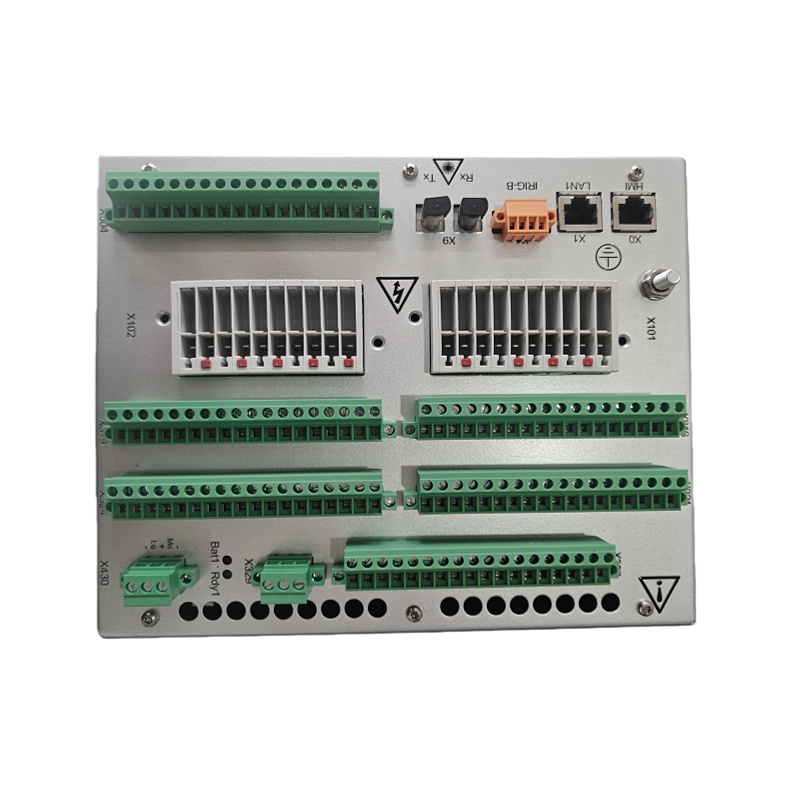

- Communication Module: With Ethernet/fiber optic interfaces, supporting IEC 61850, DNP3 and IEC 60870‑5‑103 protocols.
- Power Module, I/O Module and Protection Logic Module: All adopt pluggable design for convenient on-site maintenance and upgrading.
5. Application Fields
- Primary protection for feeder lines in distribution networks (overhead lines and underground cables)
- Radial, ring and mesh distribution systems
- Distribution networks with/without distributed generation
- Industrial power distribution rooms and substation automation
6. Installation and Maintenance
- Installation Method: Can be embedded in 19-inch cabinets, semi-flush mounted or wall-mounted, adapting to different on-site spaces.
- Wiring: Provides complete wiring diagrams, supporting the connection of multiple circuit breakers, disconnectors and earthing switches.
- Maintenance: The modular design facilitates on-site replacement; status monitoring, fault diagnosis and parameter adjustment can be carried out through the built-in HMI or remote SCADA system.
- Environmental Requirements: Operating temperature ranges from -25 °C to +55 °C, storage temperature ranges from -40 °C to +85 °C, and the protection level meets the conventional requirements of power distribution rooms.
————————————————————————————————————-
