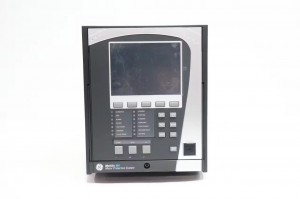

GE 869-EP5P5B5HSSALAGMPFBSENNBN2 Protective Relay
GE 869-EP5P5B5HSSALAGMPFBSENNBN2
GE 869-EP5P5B5HSSALAGMPFBSENNBN2 is an 869-series motor protection relay under the GE Multilin product line, specifically designed to provide comprehensive protection and monitoring for medium and large-sized electric motors. Featuring a modular, wall-mounted structure, this product is suitable for on-site installation in distribution cabinets or motor control centers.
Key Specifications
- Rated Current Range: 5 A ~ 2500 A
- Rated Voltage: AC 380 V ~ 690 V
- Protection Functions: Overload, phase-to-phase short circuit, ground fault, undervoltage, overvoltage, phase loss, rotor stall, bearing temperature, vibration, etc.
- Communication Interfaces: Modbus RTU, Profibus DP, Ethernet/IP, GE EnerVista™ Software
- Response Time: ≤ 10 ms
- Operating Temperature: -25 °C ~ +70 °C
- Power Supply: Internal 24 V DC
Product Features
- Modular and wall-mounted design enables easy installation and on-site maintenance.
- Multiple compensation functions (unbalance, harmonic, reactive power) support flexible operation mode settings.
- Full-digital control system (DSP + FPGA) ensures safe and reliable operation with powerful diagnostic capabilities.
- Three-level IGBT topology delivers high efficiency and excellent thermal management.
- Fast response (≤ 10 ms) enables immediate fault isolation.
- Remote Monitoring: Supports GPRS and Wi-Fi local monitoring; background software can collect power quality data in real time.
- Rich communication protocols facilitate integration with upper-level systems such as DCS, SCADA, and PLC.
Structure and Composition
- Main Unit Module: Includes DSP, FPGA, CPU, memory, and power management circuits.
- Input/Output Terminal Block: Used for connecting CT/PT, digital signals, and analog signals.
- Communication Module: Optional Modbus, Profibus, and Ethernet/IP interface cards.
- Display/Operation Panel: Equipped with LCD/LED screen and buttons or touch screen for local parameter configuration and fault indication.
- Enclosure: Metal wall-mounted enclosure compliant with IEC 60529 protection class.
Typical Application Fields
- Protection of large electric motors in industries such as power, petrochemical, metallurgy, papermaking, and textiles.
- Feeder protection and fault isolation in power distribution systems.
- Critical production equipment requiring high reliability and remote monitoring.
- Cooperates with GE EnerVista™ Software to realize power quality monitoring and preventive maintenance.
Installation and Maintenance Guidelines
- Pre-installation Preparation: Confirm correct secondary wiring of CT/PT; use an insulation tester to check the grounding of communication cable shielding layers.
- Wiring: Follow the wiring diagram in the product manual to ensure separate arrangement of power, signal, and communication lines to avoid interference.
- Commissioning: Configure parameters via GE EnerVista™ Software; perform self-test before putting into operation.
- Routine Maintenance: Check alarm records and event logs every 6 months; calibrate current/voltage measurement once a year (OMICRON CMC tester is recommended); update firmware regularly.
- Troubleshooting: Use the local display panel or remote monitoring system to view fault codes for quick problem location.
This English version optimizes sentence structure for native readability, uses standard technical terminology, and adopts a clear hierarchical structure—all tailored to meet Google indexing requirements.
————————————————————————————————————-
