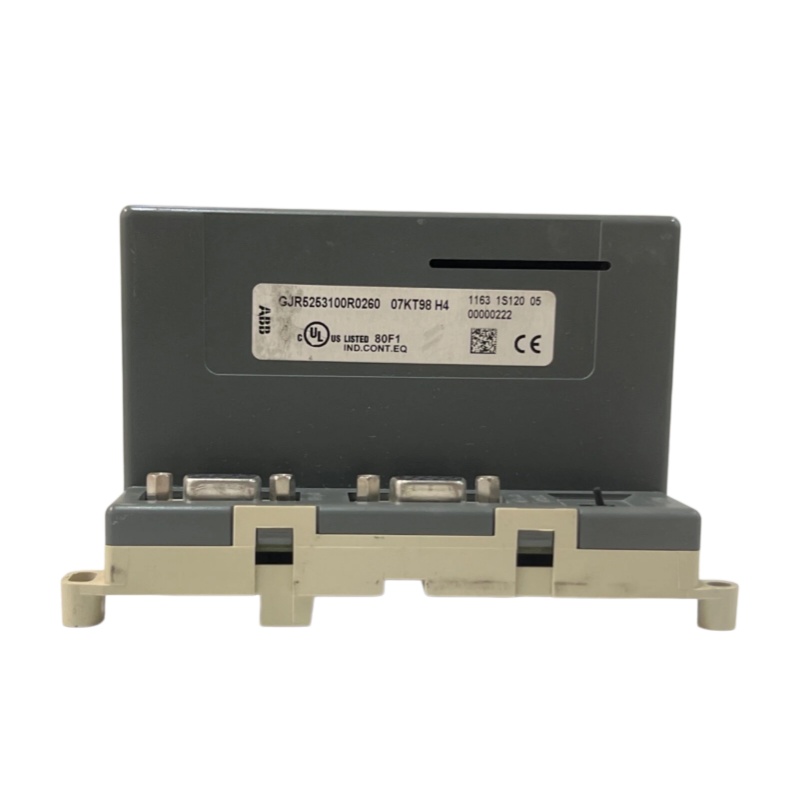

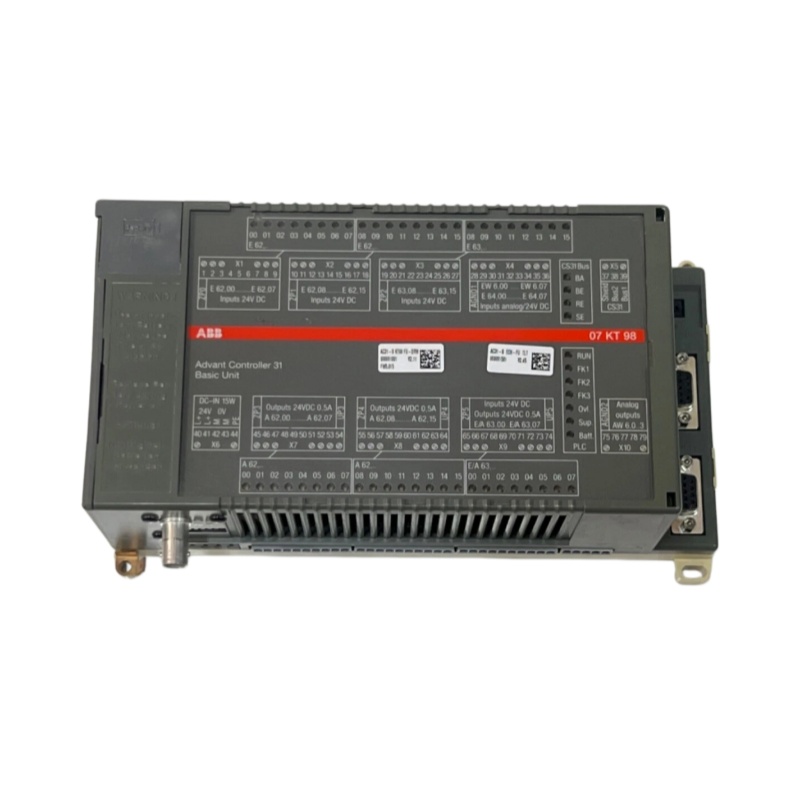

ABB 07KT98 H3

1. Product Overview

• Analog Output: 4 channels, supporting -10-10V, 0-20mA
• Digital Input/Output: Partial models support 8 digital input channels and 8 digital output channels

Communication Interfaces

• 2 × RS-485 communication ports
• 1 × Ethernet port

3. Product Features

• High Reliability: Equipped with advanced electronic and high-quality digital technologies to ensure stable and continuous operation of the industrial control system, effectively reducing system failure risks.
• Robust and Durable: Adopts aluminum alloy housing and premium industrial-grade materials, enabling long-term stable operation in harsh industrial environments such as high temperature, humidity and electromagnetic interference.
• Energy-saving Design: Features low power consumption with a rated power of 4.8W, realizing energy conservation and operational cost reduction with high economic efficiency.
• Modular Structure: Supports seamless integration with other industrial control modules, enabling flexible configuration to form a complete and customized industrial control system.
• Easy Installation: Compact and streamlined design, compatible with DIN rail mounting and wall mounting inside cabinets, adapting to diverse installation scenarios.
• Simple Configuration: The module is easy to install and configure, which minimizes equipment downtime and greatly simplifies daily maintenance and system debugging work.

4. Structure and Composition

Main Components

• Power Supply Unit: Adopts 24V DC power supply to provide stable and consistent operating voltage for the module and ensure reliable system operation.
• Analog Signal Processing Unit: Consists of 8 analog input channels and 4 analog output channels, responsible for collection and output of industrial analog signals.
• Digital Signal Processing Unit: Equipped with 8 digital input channels and 8 digital output channels to realize digital signal acquisition and control output.
• Communication Interface Unit: Integrated with RS-485 and Ethernet interfaces to support stable data transmission and remote communication of the control system.
• Housing: Made of high-strength aluminum alloy material with IP54 ingress protection rating, providing effective protection against dust and splash water.

5. Application Fields

• Industrial Manufacturing: Automatic production line control, industrial robot control systems
• Energy Industry: Power generation, energy transmission and distribution, renewable energy power system control
• Process Industry: Process monitoring and control for chemical, petroleum, metallurgical, pharmaceutical and other process industries
• Motor Control: Drive and automatic control of industrial motors
• Process Monitoring: Real-time temperature control, liquid level control, pressure monitoring and other parameter regulation
• Infrastructure: Power distribution system control for data centers, hospitals and commercial buildings
• Transportation Industry: Control systems for rail transit, marine transportation and other transportation equipment

6. Installation and Maintenance

Installation Guidelines

• Installation Methods: Supports standard DIN rail mounting and cabinet internal wall mounting
• Environmental Requirements: The applicable operating temperature ranges from 0 to 55℃; avoid installation in humid environments and areas with corrosive gas
• Wiring Specifications: Complete power supply and signal wiring strictly in accordance with the official electrical wiring diagram to ensure wiring safety and signal stability
• Heat Dissipation Requirements: Reserve sufficient ventilation and heat dissipation space around the module to avoid equipment overheating

Maintenance Guidelines

• Regular Inspection: Periodically check whether the wiring terminals are loose and whether the module indicator lights work normally
• Cleaning and Maintenance: Regularly remove dust on the module surface to keep the ventilation channel unobstructed
• Firmware Update: Perform official firmware upgrade appropriately to optimize module performance and expand functions
• Configuration Backup: Regularly back up system configuration parameters to facilitate rapid recovery in case of system failure

Precautions

• Ensure power off operation before installation and disassembly
• Do not plug or unplug the module in a live state to avoid equipment damage and safety hazards
• Store the module in a dry and dust-free environment when not in use
• The product is covered by the original manufacturer’s warranty service
