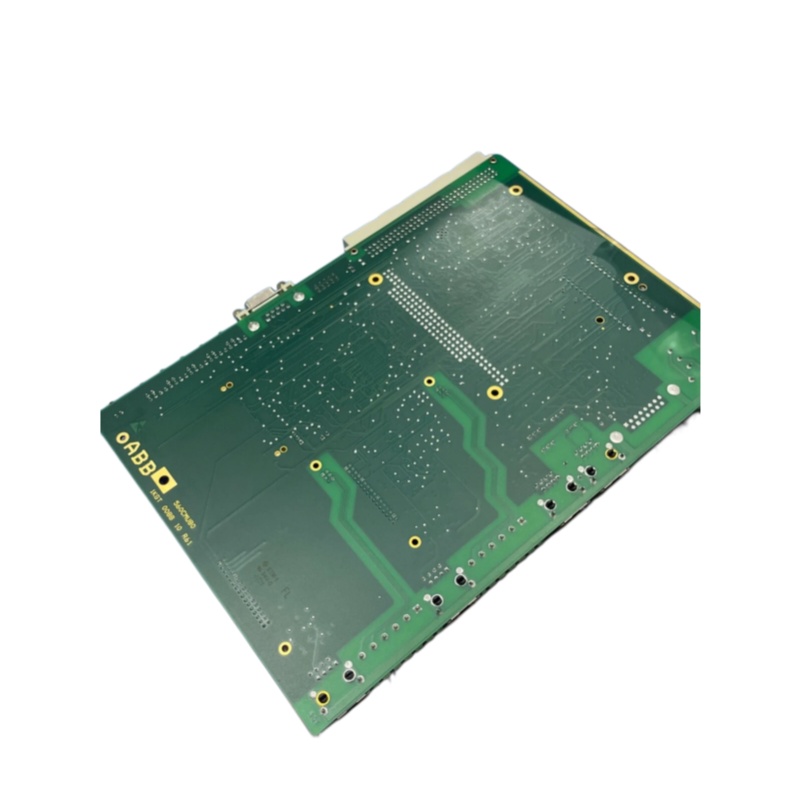

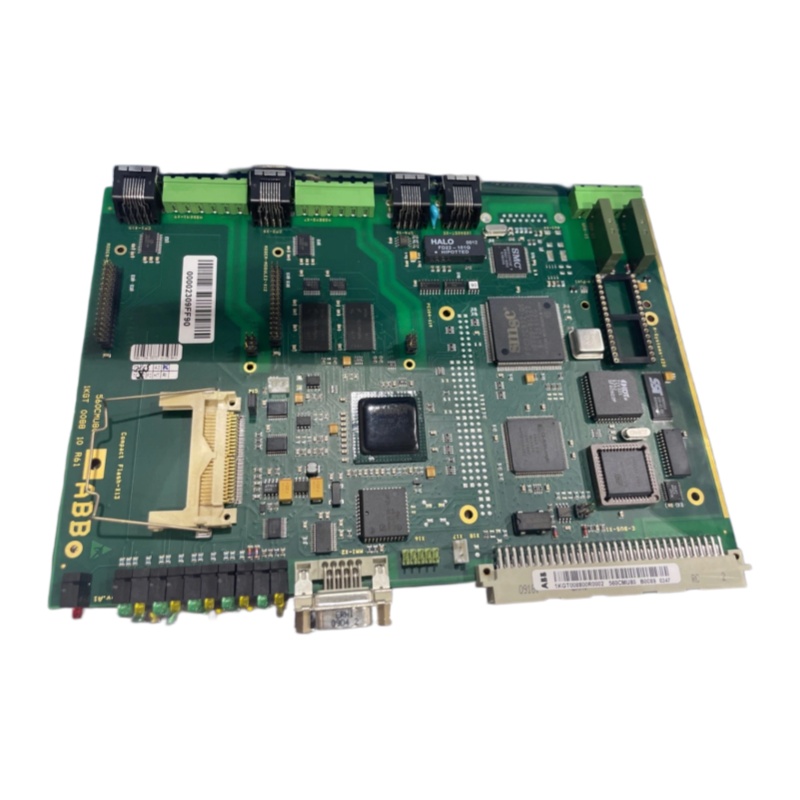

ABB 560CMU80 1KGT008800R0002

1. Product Overview

2. Technical Specifications

3. Structure and Composition

• Central Processing Unit: 32-bit RISC architecture CPU, responsible for field data acquisition, logical operation processing and multi-protocol conversion.
• Communication Interface Module: Integrates serial and Ethernet interface units to realize diversified industrial protocol conversion and data transmission.
• Storage Unit: Consists of RAM and Flash memory, used for system program operation, solidification and historical operation data recording.
• Power Management Module: Adopts standard DC power supply mode and supports power redundancy function to guarantee stable power supply.
• Interface Terminal: Professional terminals for connecting I/O buses and various external peripheral devices.
• Real-Time Clock Module: Built-in RTC unit with battery buffer function to ensure continuous time calibration and data retention.

4. Application Fields

• Power Automation: Power dispatching automation systems, substation remote monitoring and intelligent power grid operation management.
• Oil and Gas Pipeline Monitoring: Long-distance oil and gas pipeline data acquisition, remote control and pipeline operation status monitoring.
• Water Conservancy Telemetry: Water level monitoring, flow regulation and water quality data collection for water conservancy projects.
• Renewable Energy Stations: Remote monitoring and automatic control of wind power and photovoltaic power stations.
• Industrial Automation: Industrial process control, production line automation and mechanical equipment intelligent control.
• Smart City: Urban public infrastructure monitoring and intelligent traffic system operation management.
• SCADA Systems: Data acquisition, real-time monitoring and supervisory control of various industrial SCADA systems.

5. Installation and Maintenance

5.1 Installation Preparation

• Confirm that the installation environment is dry, well-ventilated and free of corrosive and interfering substances.
• Check the matching performance of the rack and slots to ensure no damage or abnormal contact.
• Prepare professional and compliant installation tools.

5.2 Installation Steps

• Insert the module into the designated slots (Slots 1-17) of the 560MPR03 rack.
• Ensure firm and reliable contact between the module and the backplane.
• Connect power cables and communication cables in accordance with standard specifications.
• Fix the module steadily with screws to avoid loose displacement.

5.3 Wiring Requirements

• Power Wiring: Follow the standard wiring specifications of the supporting power module strictly.
• Serial Port Wiring: Implement isolation protection measures for RS-232/RS-485 interfaces to prevent signal interference.
• Ethernet Wiring: Use shielded network cables to ensure stable and high-quality signal transmission.
• I/O Bus Wiring: Accurately connect cables to the corresponding I/O bus interfaces to avoid wiring errors.

5.4 Maintenance Guidelines

• Regularly check the status of module indicator lights to judge the operating state.
• Inspect all connecting cables for looseness, aging or damage.
• Monitor the module operating temperature to ensure it is within the normal range.

• Clean dust and dirt on the module surface to ensure good heat dissipation.
• Detect and verify the stability of power supply.
• Back up system programs and configuration data regularly to prevent data loss.
• Check the power level of the real-time clock backup battery and replace it regularly if necessary.
