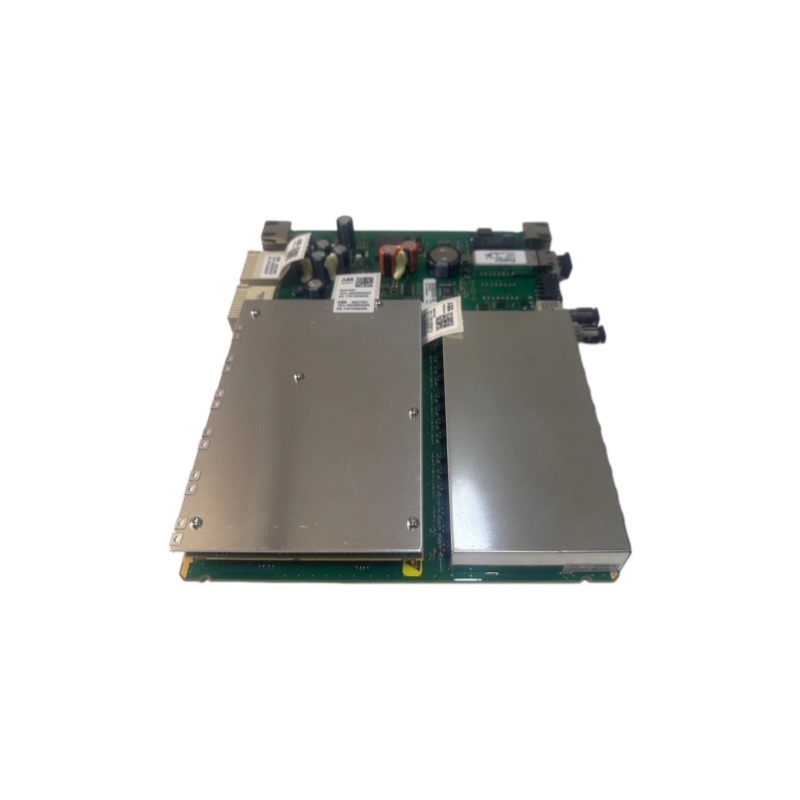

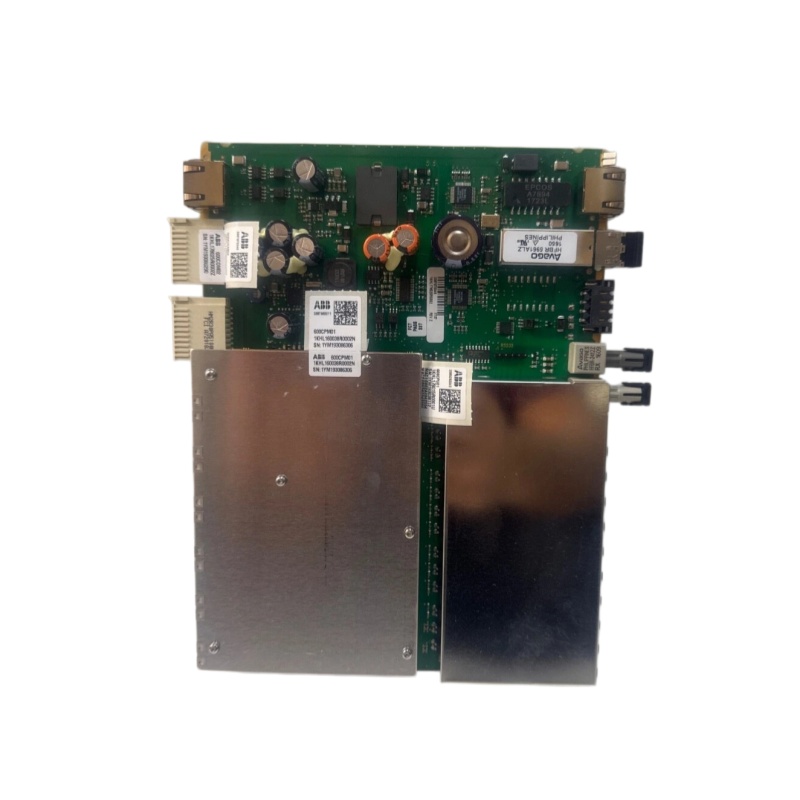

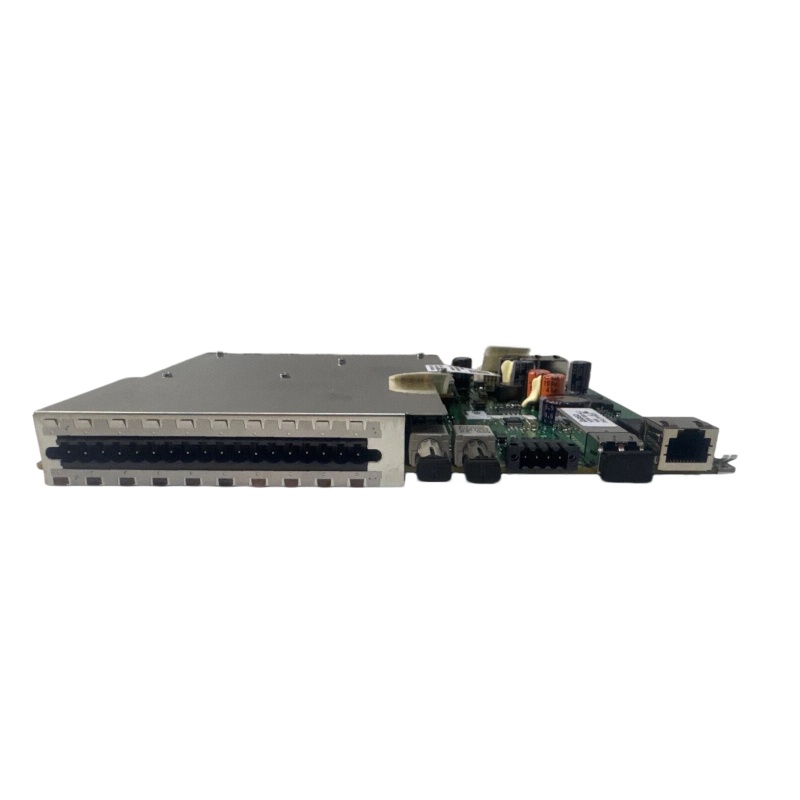

ABB 1KHL178025R0002 REV.Z Communication Module
ABB 1KHL178025R0002 REV.Z
1. Product Overview
2. Technical Parameters
|
Parameter Item
|
Specification
|
|---|---|
|
Order Number
|
1KHL178025R0002
|
|
Module Type
|
COM02 Communication Module
|
|
Product Series
|
ABB AC 500 PLC
|
|
Communication Interface
|
1-channel RS-232 + 1-channel RS-485 (independent channels)
|
|
Supported Protocols
|
Modbus RTU/ASCII (Master/Slave), CS31 (Slave Mode), Custom ASCII Protocol
|
|
Baud Rate
|
Adjustable
|
|
Operating Temperature
|
0°C to +55°C
|
|
Ingress Protection Rating
|
IP20
|
|
Dimensions
|
160mm × 100mm
|
|
Weight
|
0.68kg
|
|
Power Consumption
|
5W to 10W
|
|
Certifications
|
CE, UL, cUL
|
3. Product Features
- Dual Independent Communication Interfaces: Equipped with separate RS-232 and RS-485 channels, enabling simultaneous connection of different types of industrial devices to meet diverse communication demands.
- Multi-protocol Compatibility: Supports mainstream industrial communication protocols including Modbus RTU/ASCII and CS31, as well as custom ASCII protocols, delivering strong environmental adaptability and flexible application scenarios.
- Remote Configuration & Debugging: Communication libraries can be configured via Automation Builder software, supporting remote debugging functions and seamless access to SCADA systems for efficient system operation and maintenance.
- Intuitive Status Indication: Built-in LED indicators including RUN (Operation), COM (Communication) and ERR (Error) allow real-time equipment status monitoring and rapid on-site fault diagnosis.
- High Industrial Reliability: Designed for 24/7 continuous industrial operation, featuring a wide operating temperature range and high Mean Time Between Failures (MTBF) to ensure stable long-term operation.
- Low Power Consumption: Rated power consumption of 5W to 10W, which is energy-saving and highly suitable for embedded industrial application scenarios.
4. Structure and Composition
4.1 Physical Structure
- Installed on the I/O slots of the AC 500 main rack
- Powered by the CPU backplane bus
- Supports plug-and-play installation for convenient assembly and disassembly
4.2 Hardware Components
- RS-232 communication port
- RS-485 communication port
- LED status indication circuit
- Communication protocol processing chip
- Isolation protection circuit
4.3 Matching System Components
- CPM01 (1KHL160038R0002) – Processing Unit
- CPU01/CPU02 – Central Processing Unit
- BIO01 – Digital Input/Output Module
5. Application Fields
|
Application Field
|
Specific Applications
|
|---|---|
|
Industrial Automation
|
Large-scale production lines, automatic assembly lines, robot controllers
|
|
Power System
|
Substation automation, feeder protection, transformer monitoring, bus management
|
|
Process Control
|
Power plant control, industrial process monitoring, data acquisition systems
|
|
Building Automation
|
Pump station control systems, HVAC system monitoring
|
|
SCADA Integration
|
Access to SCADA systems as a Modbus slave station, edge computing platform connection
|
5.1 Typical Combined Application Scenarios
- Robot controllers (such as IRC5 and S4C+ series)
- Remote Terminal Units (RTU)
- Distributed I/O system expansion
6. Installation and Maintenance
6.1 Pre-installation Preparation
- Confirm the compatibility between the module firmware version and the host CPU
- Prepare an anti-static working environment to avoid static damage to electronic components
- Inspect the backplane slot integrity and verify stable power supply voltage
6.2 Physical Installation
- Insert the module into the reserved I/O slot of the AC 500 main rack
- Ensure firm and tight insertion to prevent poor contact caused by loose installation
- Adopt shielded cables for wiring to reduce electromagnetic interference and ensure stable communication
6.3 Communication Connection
- Connect RS-232 terminal devices (e.g., HMI human-machine interface)
- Connect RS-485 terminal devices (e.g., Modbus instruments, remote I/O modules)
- Check and confirm correct wiring polarity to avoid communication failure
6.4 Parameter Configuration
- Configure the communication library parameters via Automation Builder software
- Set core communication parameters including baud rate, data bits and stop bits
- Complete communication connection debugging and verify normal connection status
