ABB 3BSE042235R1

1. Product Overview

2. Technical Specifications

Interface Configuration

• Ethernet Port: 2 × 10/100/1000 Mbps
• Serial Port: 2 × RS-232/422/485
• USB Port: 2 × USB 2.0
• Serial Communication Port: RS422/RS485 with 25-pin D-sub connector

3. Product Features

• High-Resolution Display: Adopting advanced TFT-LCD technology and supporting 64K color reproduction, it delivers clear and sharp visual effects, fully meeting the display requirements of complex industrial operation interfaces.
• Multi-Touch Operation: Equipped with multi-touch function, it supports flexible and convenient human-computer interaction, optimizing operational efficiency.
• Superior Touch Screen Durability: The touch screen is made of polyester-on-glass material, which can withstand up to 1 million finger touch operations, ensuring long-term stable use in industrial scenarios.
• High Industrial Reliability: Designed with industrial-grade standards, it features excellent stability and durability, adapting to harsh industrial working environments such as dust, vibration and temperature fluctuation.
• Flexible Custom Configuration: It supports diversified configuration schemes and can be customized and adjusted according to personalized user application requirements.
• Powerful Communication Capability: It can realize efficient and stable data communication with various automation equipment including PLCs and AC 800M controllers, ensuring smooth operation of the entire automation system.
• Standard Safety Certification: Optional UL1604 certification is available, and the product complies with CE and RoHS environmental protection and safety standards, meeting global industrial compliance requirements.

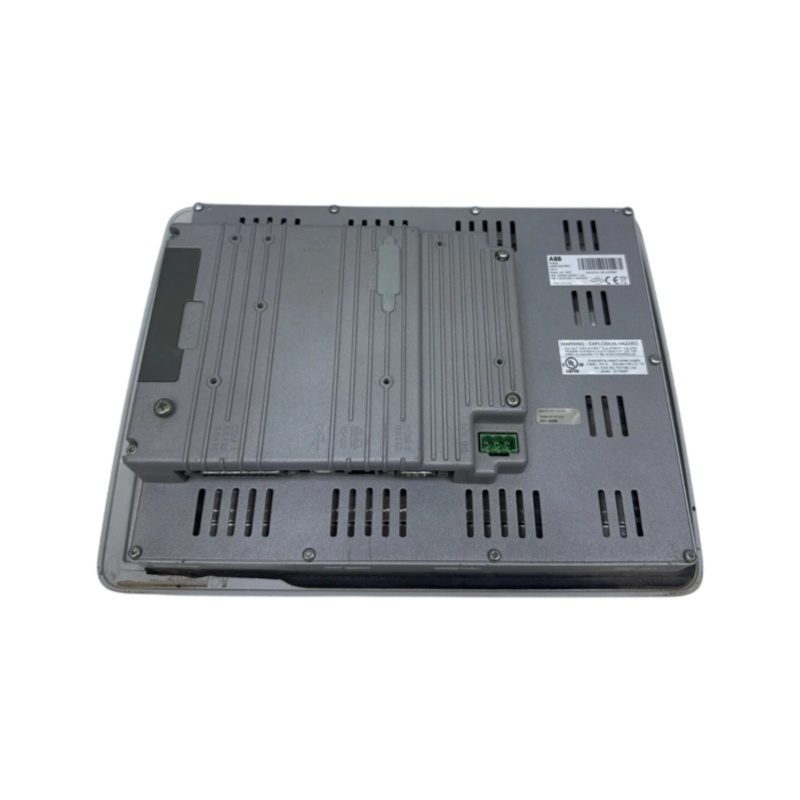

4. Structure and Composition

Main Components

• Display Module: 10.4-inch TFT LCD display screen
• Touch Layer: Resistive touch screen with Autotex F157/F207 protective coating
• Processor: Intel Atom E3826 processor
• Memory: 2 GB DDR3 RAM
• Storage: 8 GB SSD
• Housing: Industrial-grade metal shell, supporting panel mounting mode

Protection Recommendations

5. Application Fields

• Manufacturing Industry: Motor control, valve control and pump operation control
• Food & Beverage Industry: Automated monitoring and control of food processing and beverage production processes
• Pharmaceutical Industry: Real-time monitoring and data recording of pharmaceutical production processes
• Chemical Industry: Process control and status monitoring of chemical processing and production
• Textile Industry: Automated control and operation monitoring of textile production lines
• Control Cabinet & Power Distribution System: Intelligent monitoring of industrial and commercial power distribution systems

6. Installation and Maintenance

Installation Method

Maintenance Guidelines

• Regular Cleaning: Clean the panel screen regularly to remove dust, dirt and stains, ensuring optimal display clarity and sensitive touch response.
• Connection Inspection: Periodically check all connecting lines of the panel to eliminate hidden dangers such as loose wiring, aging and damage.
• Ventilation Inspection: Regularly inspect the ventilation condition inside the control cabinet to guarantee the equipment operates within the standard temperature range and avoid overheating failure.
• Shock Resistance Protection: Avoid severe impact and violent vibration on the equipment to prevent structural damage and functional failure.
• Fault Handling Specification: In case of abnormal operation, record the fault phenomenon in detail in a timely manner and contact professional technicians for maintenance. Do not disassemble or repair the equipment without authorization.
• Standard Maintenance Plan: Formulate and implement a regular maintenance plan in strict accordance with the official ABB maintenance manual to effectively extend the service life of the equipment and ensure long-term stable operation.
