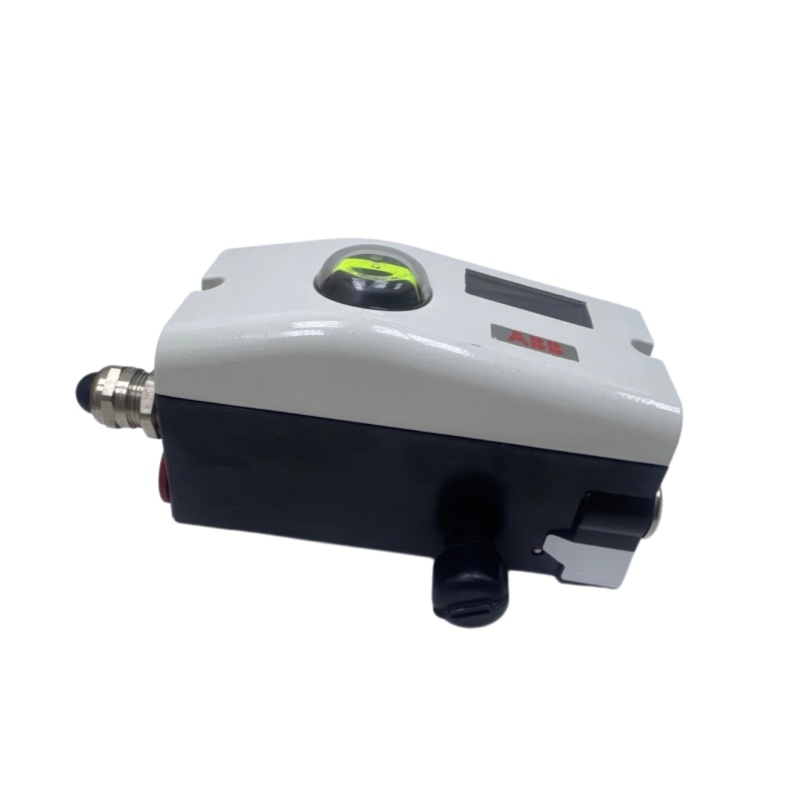

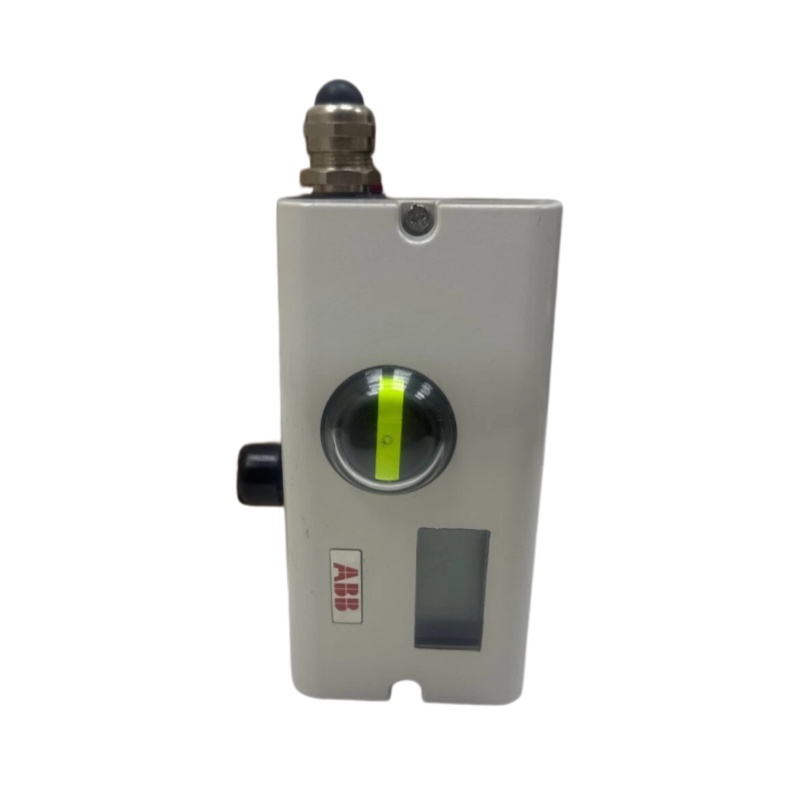

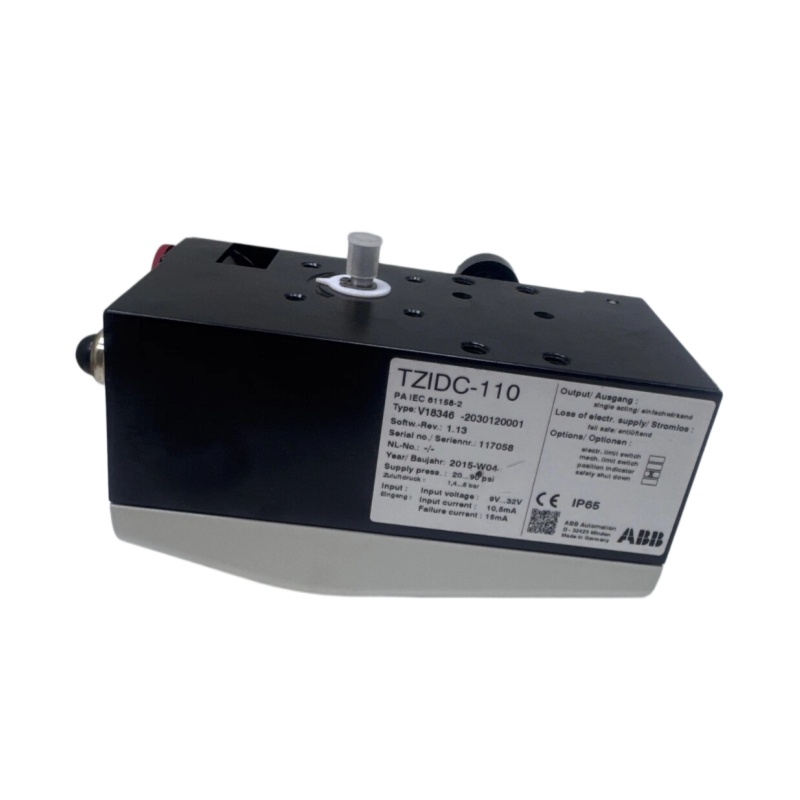

ABB TZIDC-110

1. Product Overview

2. Main Technical Parameters

3. Product Features

• Automatic Tuning Function: The positioner automatically determines optimal control parameters to adapt to on-site working conditions, ensuring superior control performance and significantly reducing commissioning time.
• Built-in Operation Panel: Equipped with a 2-line LCD display and four operation buttons, simplifying equipment commissioning, configuration and real-time process monitoring.
• High Reliability: Adopts anti-vibration structural design, maintaining stable and reliable operation under 10G @ 81Hz vibration conditions.
• Modular Structure: Plug-and-play modular design with compact structure and excellent cost-performance ratio.
• Low Air Consumption: Optimized airflow control algorithm reduces compressed air consumption and overall energy costs.
• Process Parameter Monitoring: Supports real-time monitoring of various process parameters and provides comprehensive equipment diagnosis functions.
• Adjustable Safety Position: Multiple valve safety position options are available, including safety open, safety close and safety hold modes.
• Global Certified: Authorized with a full range of international intrinsic safety certificates, including ATEX, IECEx, cFMus and EAC TR-CU-012.

4. Structure and Composition

• Positioner Main Unit: Adopts aluminum alloy housing, with enhanced anti-corrosion protection available for selected models.
• I/P Conversion Module: Single-acting fail-safe pneumatic conversion module, complete with O-rings and fixing screws.
• Position Sensor: Optional position sensor with a maximum rotation angle of 270°.
• Feedback Module: Optional analog feedback module or digital feedback module for diverse signal feedback requirements.
• Remote Sensor: Compatible with remote sensors supporting mechanical feedback or proximity switch feedback.
• Installation Kit: Standard NAMUR installation kit, applicable to stroke ranges from 20mm to 100mm.

5. Application Fields

5.1 Applicable Actuator Types

5.2 Industry Applications

• Process Industry: Petroleum refining, chemical reactor control, natural gas pipeline regulation
• Energy Industry: Power plant steam regulation, water treatment valve control
• Pharmaceutical & Food Industry: Precision flow control in sterile production processes
• General Scenarios: All types of process control actuators and valve systems

5.3 Environmental Adaptability

6. Installation and Maintenance

6.1 Installation Requirements

• Installation Mode: Supports integrated mounting and standard pneumatic actuator mounting.
• Connection Standard: Compliant with DIN/IEC 534 and VDI/VDE 3845 industrial standards.
• Wiring Method: Insert wire terminals into corresponding terminal blocks from the top during module installation, and tighten the screws manually.
• Compressed Air Requirements: Oil-free, water-free and dust-free instrument air must be used for operation in potentially explosive environments.

6.2 Maintenance Requirements

• Maintenance Personnel: All maintenance and repair work must be performed by qualified professional technicians.
• Spare Parts Ordering: Equipment type, model, serial number and NL code must be provided when ordering spare parts.
• Service Life Guarantee: Regular maintenance and adoption of original ABB spare parts can ensure and extend the equipment service life up to 10 years.
• Safety Specifications: All operations shall strictly comply with the technical parameters and special safety requirements specified in relevant certification documents.
