ABB 5SHY35L4520

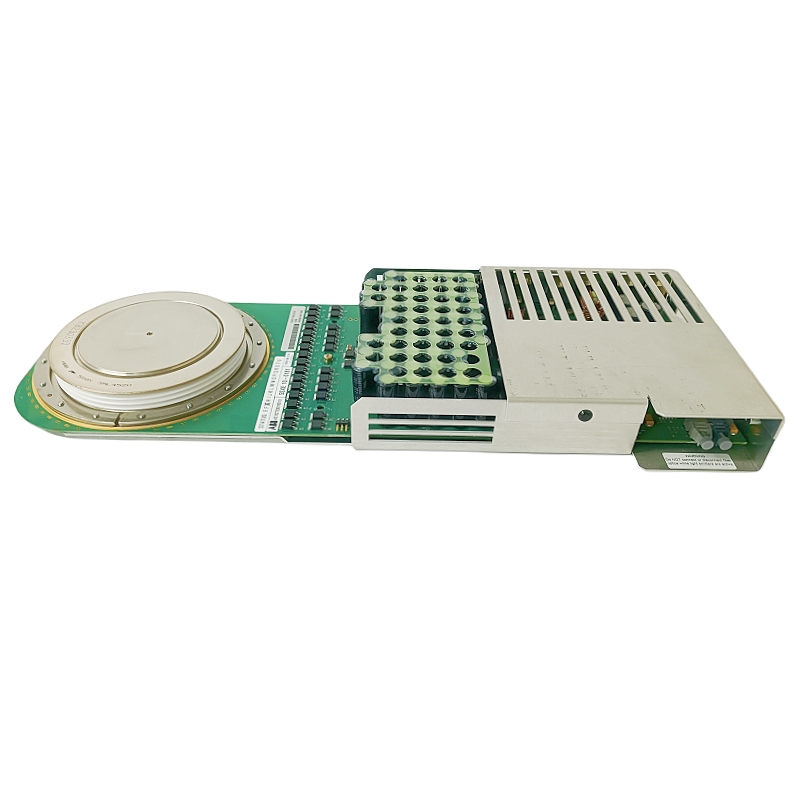

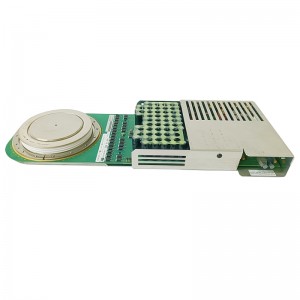

 5SHY35L4520 is a high-voltage power module manufactured by ABB, belonging to the asymmetric Thyristor (IGCT)/Insulated Gate Bipolar Transistor (IGBT) series. It is widely used in power electronics, industrial control, traction, renewable energy, and High-Voltage Direct Current (HVDC) applications. Featuring a compact structure, the module allows for easy installation and maintenance, while boasting high current/voltage withstand capacity and fast switching performance.

Key Specifications

• Rated Voltage: 4500 V
• Rated Current: 3500 A
• Maximum Voltage/Current: Up to 6000 V, 5250 A
• Switching Speed: Approximately 1 µs, with a switching frequency of up to 2 kHz
• Power Loss: Conduction loss < 2.5 V·A, switching loss < 5 V·µs
• Operating Temperature Range: -40 °C to +150 °C
• Package: TO-247, compatible with water-cooled or air-cooled heat sinks
• Dimensions/Weight: Approximately 439 mm × 173 mm × 41 mm, weight 2.9 kg

Product Features

• Asymmetric structure optimizes current sharing and voltage distribution.
• Low on-resistance and low switching loss enhance overall efficiency.
• High reliability and long service life, suitable for harsh industrial environments.
• Compact modular design facilitates on-site installation, maintenance, and replacement.
• Supports multiple communication interfaces (IEC 61850, Modbus, etc.) for easy integration.

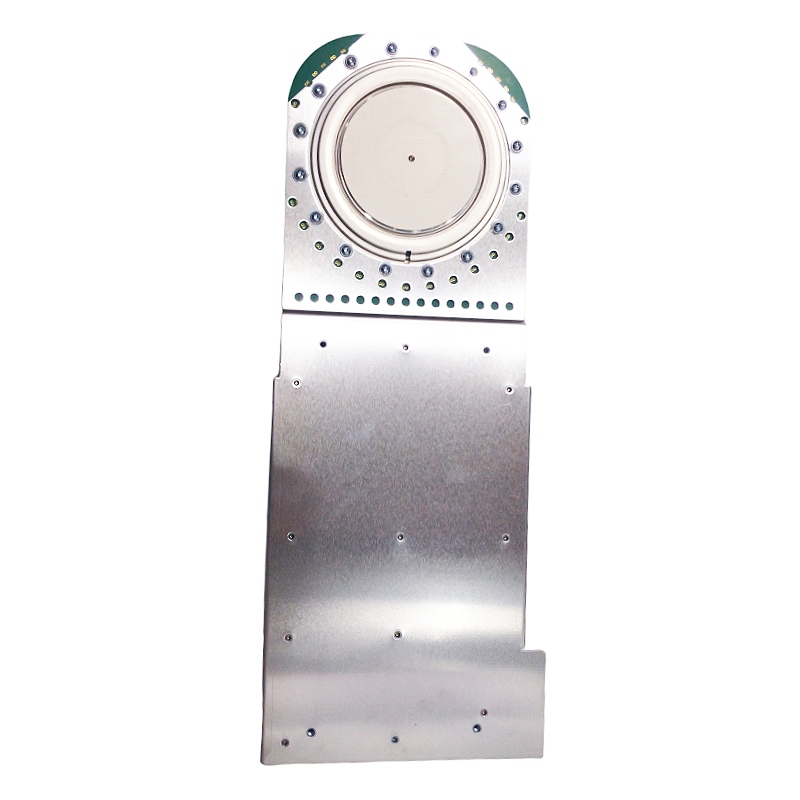

Structure and Composition

• IGCT/IGBT Chip: Core power semiconductor component.
• Heat Sink: Made of aluminum alloy or copper, paired with water-cooled/air-cooled systems.
• Package Housing: Metal casing provides electromagnetic shielding and mechanical protection.
• Terminal Block/Connector: Used for high-current/high-voltage wiring.
• Control/Drive Circuit: Includes gate drive, protection circuit, etc.

Typical Application Fields

• HVDC converter valves for high-voltage direct current transmission.
• High-power traction drives (railways, rail transit).
• Wind power, photovoltaic inverters, and other renewable energy systems.
• Industrial motor drives and frequency converters.
• Electric vehicle charging and discharging stations and power systems.
• High-voltage power distribution and power system protection devices.

Installation and Maintenance Guidelines

• On-site Inspection: Verify that cabinet space, heat dissipation conditions, and power supply matching meet specifications.
• Mechanical Fixing: Secure the module to reserved mounting holes with bolts to ensure reliability against vibration and impact.
• Electrical Wiring: Use copper bars or high-voltage cables that meet rated current requirements, strictly following phase sequence and grounding regulations.
• Heat Dissipation System: Select water-cooled or air-cooled solutions based on power density, and check the flow rate and temperature of the cooling medium.
• Commissioning and Testing: Conduct insulation resistance and ground continuity checks before power-on; verify gate drive waveforms, switching time, and power loss on-site after power-on.
• Maintenance: Regularly inspect heat sink surface cleanliness, replace cooling medium, and check terminal tightness; record operating parameters (temperature, load, current) for predictive maintenance.
• Safety: Wear insulating gloves during operation and comply with safety standards such as IEC 61850/IEC 60204.
