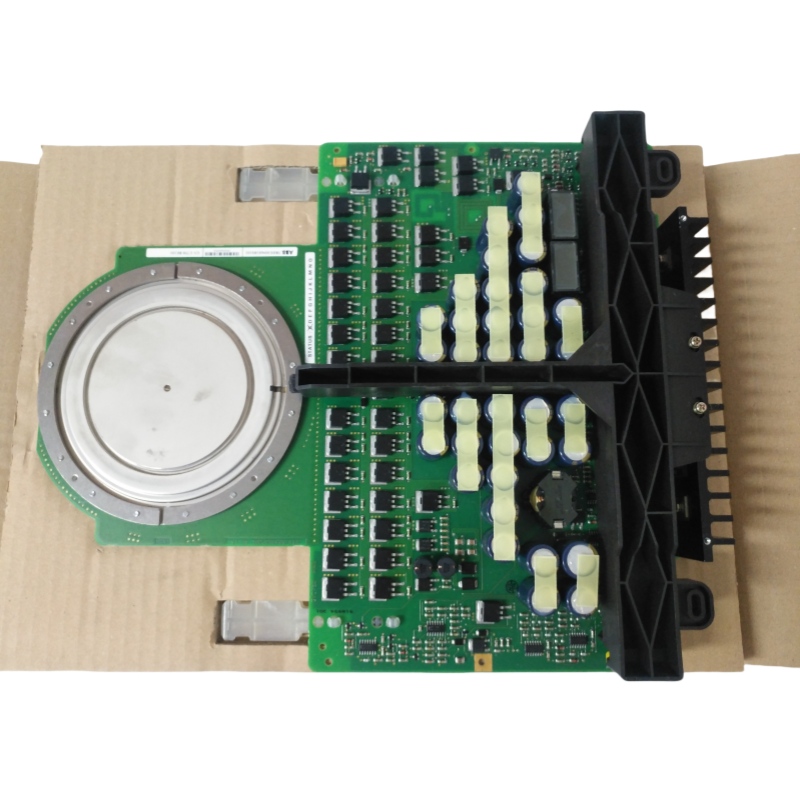

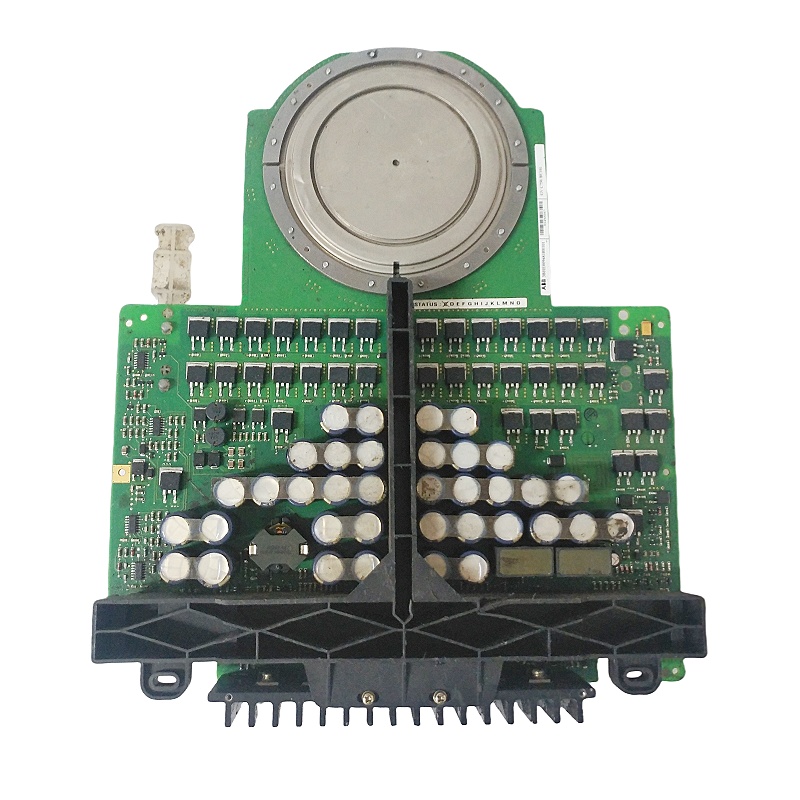

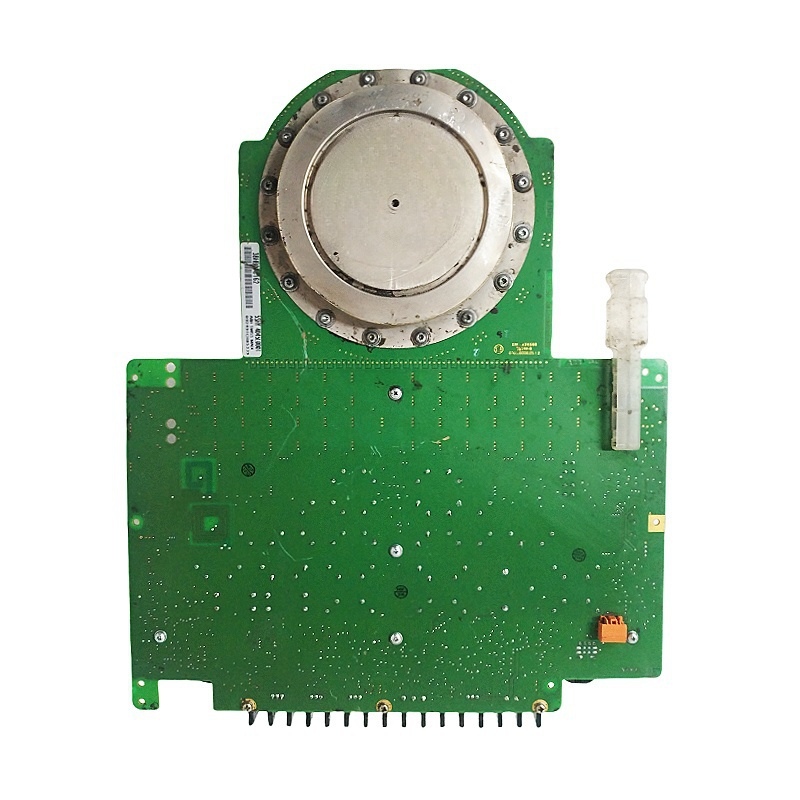

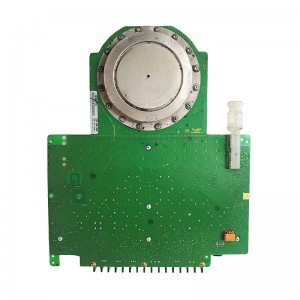

ABB 5SHY4045L0001 3BHB018162R0001 Insulated Gate Bipolar Transistor Module
ABB 5SHY4045L0001 3BHB018162R0001
1. Overview
ABB 5SHY4045L0001 3BHE009681R0101 is a high-power module/card from the ABB 5SHY series, widely used in power electronics, industrial automation, and high-voltage distribution systems. It integrates either IGCT (Integrated Gate-Commutated Thyristor) or Thyristor functionality, enabling high-speed switching, precise power control, and reliable current/voltage regulation.
2. Key Specifications
| Specification | Typical Value / Description |
|---|---|
| Rated Voltage | 4.5 kV |
| Rated Current | 4 kA |
| Switching Frequency | High frequency for fast switching operations |
| Forward Voltage Drop | Low forward voltage drop to enhance system efficiency |
| Operating Temperature | -25 ℃ ~ +70 ℃ |
| Protection Class | IP20 (card type) |
| Dimensions/Weight | Typical dimensions approx. 96 × 96 × 75 mm (varies by package), weight approx. 0.2 kg |
| Power Supply | 24 V DC ± 20% (control circuit) |
| Input/Output | 16 digital I/O channels, supporting Ethernet, RS-485, and other communication protocols |
3. Product Features
- High Power Density: Delivers 4 kA-class current in a compact size, ideal for high-power frequency conversion, drives, and grid regulation.
- Low Loss: Low forward voltage drop and high switching frequency reduce system energy consumption.
- Modular Design: Card-type structure allows quick assembly and replacement in standard guide rails or cabinets.
- Multiple Cooling Options: Natural cooling, forced air cooling, or liquid cooling available for on-site customization.
- Reliability: Complies with international standards such as IEC 61800-9-1, with IP20 protection for harsh industrial environments.
4. Structure and Composition
- Power semiconductor module (IGCT/Thyristor)
- Drive/control circuit (powered by 24 V DC)
- Connection terminals (screw-type or spring-type)
- Heat dissipation components (heat sink or cooling fan)
- Housing (plastic or metal, IP20 protection)
5. Application Fields
- High-Voltage Direct Current (HVDC) converter stations
- Large-scale variable frequency drives (e.g., wind turbines, pumps, compressors)
- Grid regulation and power control systems
- Industrial automation control cabinets (PLC, digital I/O expansion)
- Fast circuit breaking and protection in power systems
6. Installation and Maintenance Guidelines
- Installation Method: Standard DIN rail mounting or card insertion in cabinets, ensuring secure terminal contact.
- Power Connection: First connect the 24 V DC control power supply, then the high-voltage side, following the “low-voltage first” safety principle.
- Heat Dissipation Check: Verify proper operation of heat sinks or fans; install liquid cooling systems if necessary.
- Regular Inspection: Check terminal tightness, heat sink cleanliness, and housing integrity every 6–12 months.
- Fault Diagnosis: Use built-in diagnostic LEDs or read fault codes via PLC for quick anomaly localization.
————————————————————————————————————-
