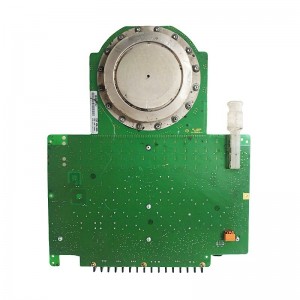

ABB 5SHY4045L0001 3BHB018162 Power Electronic Devices
ABB 5SHY4045L0001 3BHB018162
I. Product Overview

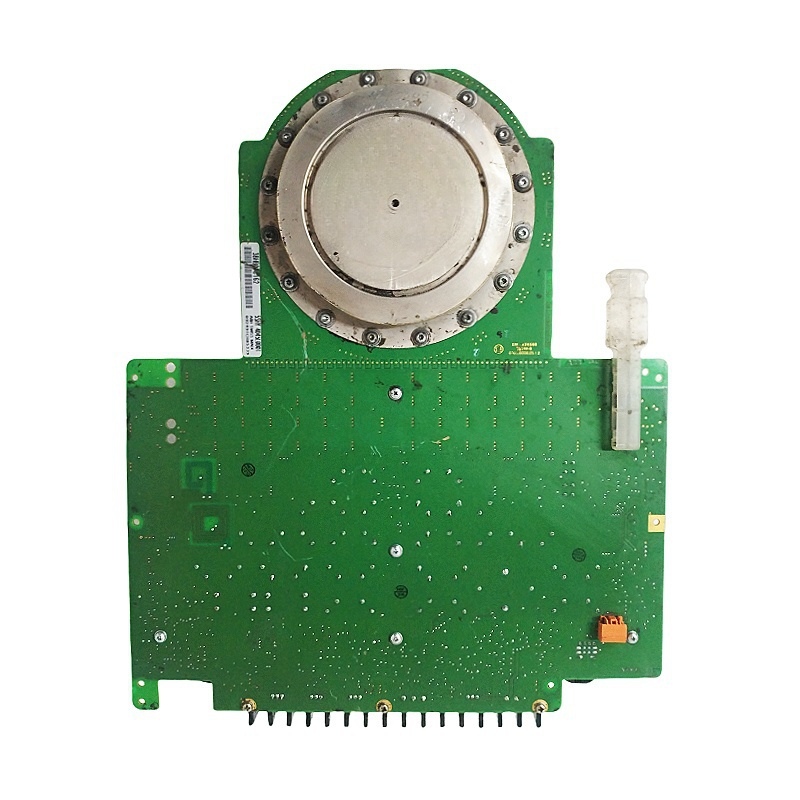

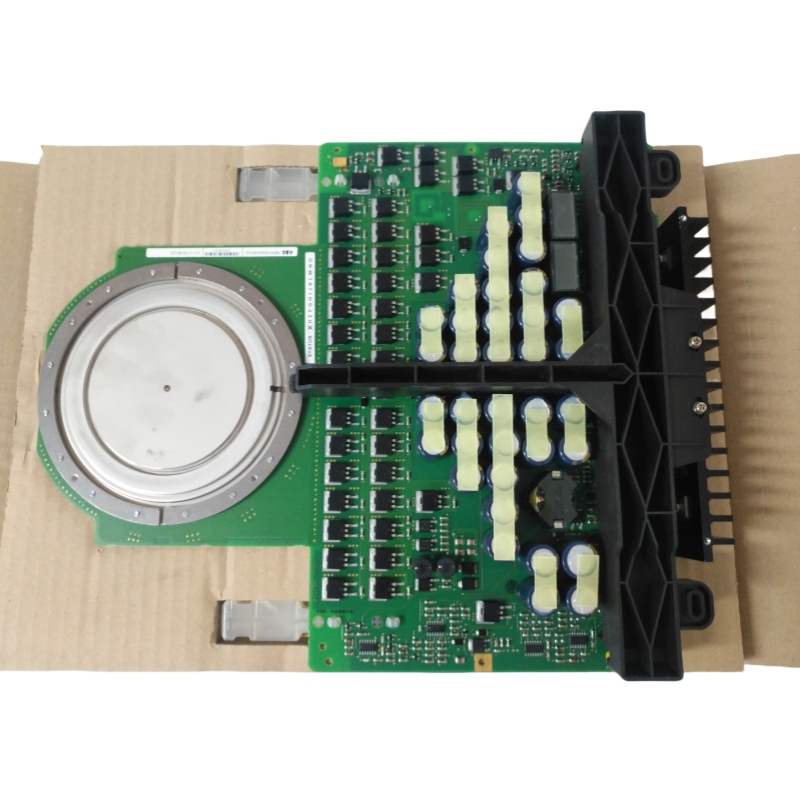

5SHY4045L0001 3BHB018162 is a compact, modular IGCT power electronic device that combines the high voltage withstand capability of GTO and the fast switching advantage of IGBT. It is suitable for industrial systems requiring high current, high voltage, and high-frequency switching. The module integrates drive circuits and protection functions internally, facilitating system integration and maintenance.
II. Main Technical Specifications
| Specification | Typical Value |
|---|---|
| Rated Current | 4000 A |
| Rated Voltage | 45 kV |
| Rated Short-Circuit Breaking Capacity | 50 kA |
| Switching Frequency | Up to approximately 1.6 kHz |
| Cooling Method | Water cooling or natural cooling |
| Protection Class | IP20 |
| Operating Temperature Range | -40 °C ~ +125 °C |
| Package Type | TO-247AB, module dimensions approx. 100 mm × 50 mm × 30 mm, weight approx. 4 kg |
| Drive Voltage/Current | Gate pulse voltage 15 V, gate pulse current 10 mA |
| Other Characteristics | Low on-state voltage drop, fast commutation, integrated free-wheeling diode, modular design |
III. Product Features
- High Power Density: Rated current up to 4000 A, capable of withstanding high current shocks.
- Fast Switching: Switching speed is about 10 times faster than traditional GTO, suitable for high-frequency applications.
- Low Conduction Loss: Integrated free-wheeling diode reduces dynamic power consumption by approximately 50%.
- Modular Design: Compact size, facilitating on-site installation, replacement, and maintenance.
- High Reliability: Adopts advanced packaging technology, resistant to high temperature and corrosion, suitable for harsh industrial environments.
- Integrated Drive and Protection: Built-in gate drive circuit and overcurrent/overvoltage protection simplify system design.
IV. Structure and Composition
- IGCT Main Body: Core commutation thyristor with a bipolar structure, achieving low on-state voltage drop and high blocking voltage.
- Gate Drive Unit: Provides required gate pulse voltage/current with built-in protection functions.
- Heat Dissipation System: Water-cooled or natural cooling heat sink to ensure controllable temperature during high-current operation.
- Connection Terminals: Screw-type or plug-in terminals supporting quick wiring.
- Housing: IP20 plastic or metal housing providing basic protection.
V. Typical Application Fields
- Medium-voltage frequency converters and FACTS systems (flexible AC transmission systems)
- Large industrial drives (such as high-power motors in steel, chemical, and mining industries)
- New energy grid connection (wind power and photovoltaic inverter)
- Rail transit (electric traction systems)
- High-power power supplies (such as electrolysis and welding)
VI. Installation and Maintenance Guidelines
On-site Inspection
- Confirm that the cabinet space meets the module dimensions and reserve sufficient heat dissipation channels.
- Verify that the power supply voltage, grounding, and lightning protection measures comply with the rated parameters.
Installation Steps
- Fix the module in the reserved mounting slot or bracket to ensure levelness.
- Connect power supply, load, and drive terminals according to the wiring diagram using screw-type or plug-in terminals.
- For water cooling, connect the cooling pipeline and check for tightness.
Commissioning
- Inspect all connections for firmness and absence of short circuits before power-on.
- Gradually increase the voltage, monitor the module temperature, gate current, and output waveform to ensure they are within the rated range.
Daily Maintenance
- Regularly check the heat dissipation system (cooling water or heat sink) for blockages and leaks.
- Inspect terminal tightness to prevent loosening due to vibration.
- Record key indicators such as operating temperature and switching times, and replace immediately if abnormalities are found.
Safety Precautions
- Always cut off the power supply and wear insulating gloves before operation.
- Do not disassemble the internal drive circuit or modify the module structure without authorization.
————————————————————————————————————-
