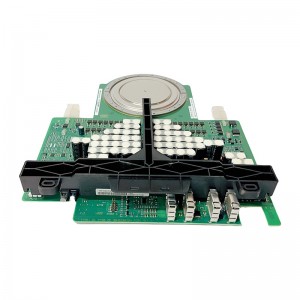

ABB 5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101

5SHY4045L0003 + 3BHB021400 is an industrial electrical component manufactured by ABB. It is typically used as an IGCT (Integrated Gate-Commutated Thyristor) module in high-voltage direct current (HVDC) transmission systems, power conversion equipment, or rack-mounted control systems. This combination provides power control, data logging, and communication functions in ABB’s VM600 series CPU rack controllers, making it suitable for harsh industrial environments.

Key Specifications

• Rated Voltage: Approximately 4.5 kV (VRRM)
• Rated Current: Approximately 1,200 A (IR)
• Maximum On-State Voltage Drop: 3.1 V; Off-State Voltage Drop: 5.0 V
• Maximum On-State Power Dissipation: Approximately 4,800 W; Off-State Power Dissipation: Approximately 1,500 W
• Switching Speed: dI/dt ≈ 500 A/µs
• Operating Temperature Range: -40 °C ~ +125 °C
• Dimensions/Weight: Typical module size is approximately 200 × 140 × 80 mm; weight is approximately 1.5 kg

Product Features

• High Reliability: Adopts IGCT technology with high-speed switching and low on-state loss, suitable for high-frequency and high-voltage applications.
• Robust Protection Functions: Built-in multiple protections such as overcurrent, overvoltage, and undervoltage to ensure system safety.
• Modular Design: Seamlessly integrable with other ABB rack-mounted controllers (e.g., VM600), facilitating on-site expansion and maintenance.
• Wide Temperature Adaptability: Operating range of -40 °C ~ +125 °C, applicable to extreme industrial environments.
• Communication Compatibility: Supports industrial protocols including EtherNet/IP, Profinet, and Modbus for easy system networking.

Structure and Composition

• IGCT Power Semiconductor (core switching component)
• Heat Dissipation System (air-cooled or forced cooling)
• Control and Protection Circuitry (including overcurrent and overvoltage detection units)
• Communication Interface Module (Ethernet, serial port, etc.)
• Rack Mounting Bracket (compliant with ABB standard rack dimensions)

Typical Application Fields

• High-Voltage Direct Current (HVDC) transmission systems
• High-power variable frequency drives and motor control
• Power modules in rack-mounted PLCs/controllers (e.g., VM600)
• Heavy industry automation (metallurgy, chemical industry, energy)
• Power protection devices requiring high-speed switching and high reliability

Installation and Maintenance Guidelines

Installation

• Fix according to ABB rack standards to ensure unobstructed heat dissipation channels.
• Strictly adhere to rated voltage/current specifications during wiring; use cables and junction boxes that meet IEC standards.
• Check port compatibility and network configuration before connecting communication interfaces.

Commissioning

• Perform insulation resistance and grounding checks before startup.
• Configure parameters and conduct function tests using ABB-provided programming software (e.g., Automation Builder).

Routine Maintenance

• Regularly inspect the operation status of cooling fans or cooling devices to prevent overheating.
• Monitor the operating current, voltage, and temperature of the module; replace abnormal components in a timely manner.
• Keep the module housing clean to avoid dust accumulation affecting heat dissipation.

Troubleshooting

• In case of overcurrent or overvoltage alarms, first check for short circuits or abnormalities on the load side.
• Use ABB diagnostic tools to read fault codes and replace corresponding components according to the manual.
• For communication failures, check network connectivity, IP configuration, and protocol compatibility.
