ABB 5SHY4045L0003 3BHB021400 3BHE019719R0101 GVC736BE101

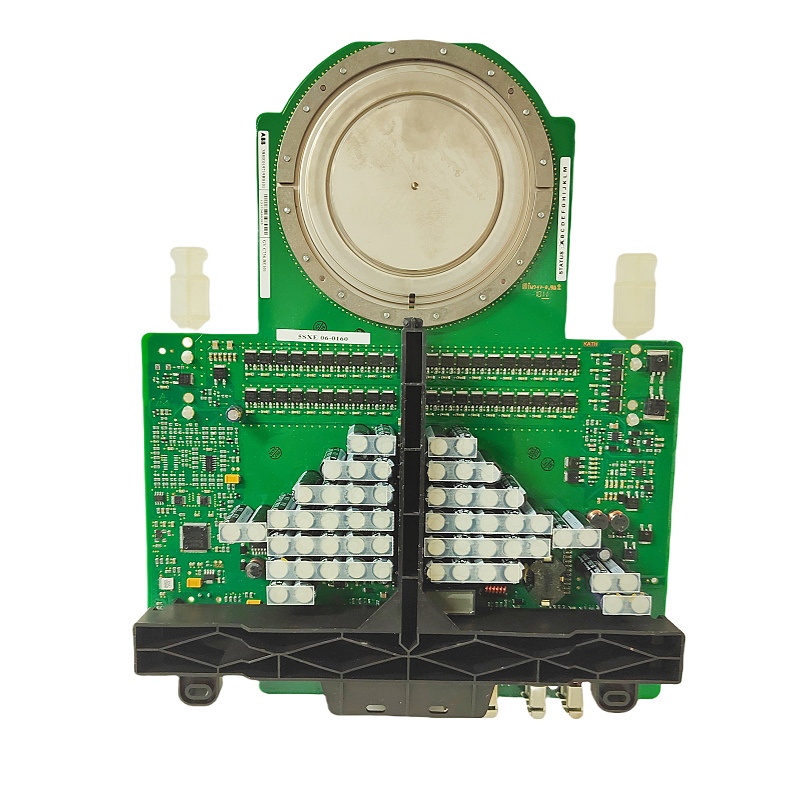

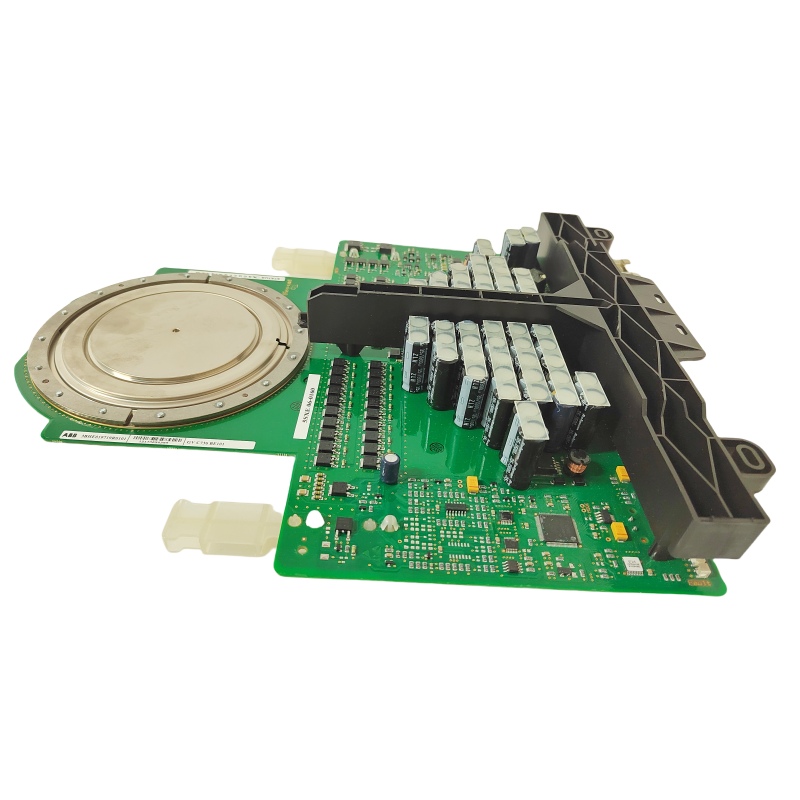

ABB 5SHY3545L0016 / 3BHB019719R0101 is a high-power semiconductor module manufactured by ABB. It belongs to the Integrated Gate-Commutated Thyristor (IGCT) series, specifically designed for high-current, high-voltage rapid switching applications. This module delivers reliable power conversion and protection functions in scenarios such as power transmission, renewable energy generation, and industrial control.

Key Specifications

• Operating Voltage: 24 V DC
• Rated Current: 5 A
• Rated Power: Approximately 540 kW
• Switching Speed: High-speed switching, combining the fast response of IGBT and the high blocking voltage of GTO
• Dimensions: Approximately 170 mm × 105 mm × 32 mm
• Protection Class: IP55
• Operating Temperature Range: -20 ℃ ~ +60 ℃

Product Features

• High Current/High Voltage Capacity: Withstands large currents and high blocking voltages, suitable for heavy-duty power systems.
• Fast Switching Performance: IGCT structure integrates the high speed of IGBT and the low on-state loss of GTO.
• Compact and Reliable: Compact design with excellent heat dissipation, ideal for cabinet or rail mounting.
• Versatile Interfaces: Supports relay output and analog/digital communication (HDMI interface available on some models).
• Easy Maintenance: Modular design facilitates replacement and on-site inspection.

Structure and Composition

• IGCT Core Chip: Enables high-speed gating and high blocking capability.
• Heat Sink: Ensures thermal management during high-power operation.
• Encapsulation Housing: Metal or aluminum alloy material, providing IP55 protection.
• Terminal Block: Screw terminals or plug-in terminals, supporting 16 channels of input/output.
• Control and Indication Unit: Includes light alarms, status indicators, etc.

Typical Application Fields

• Power transmission and distribution systems
• Renewable energy (wind power, photovoltaic) inversion and grid connection
• High-power motor drive and protection (soft start, star-delta start)
• Industrial automation and robot control systems
• Process control and logistics equipment

Installation and Maintenance Guidelines

• Installation Method: Fix via rails or cabinet mounting, ensuring unobstructed heat dissipation channels. Avoid direct exposure to high-temperature, humid, or corrosive environments.
• Wiring: Use screw terminals or dedicated plug-in terminals, strictly following rated current/voltage specifications. Check terminal tightness to prevent loosening.
• Heat Dissipation: Select appropriate heat sinks or air/water cooling systems based on power rating. Regularly clean dust from heat sink surfaces.
• Commissioning: Conduct insulation and grounding checks before power-on. Monitor output current, temperature, and alarm indicators after power-on to ensure the module operates within rated parameters.
