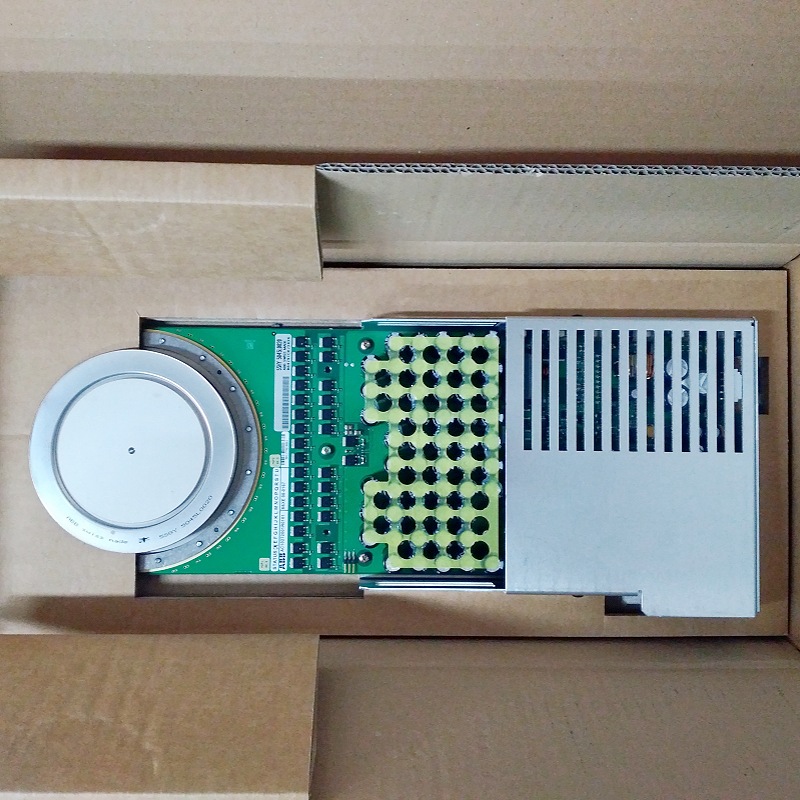

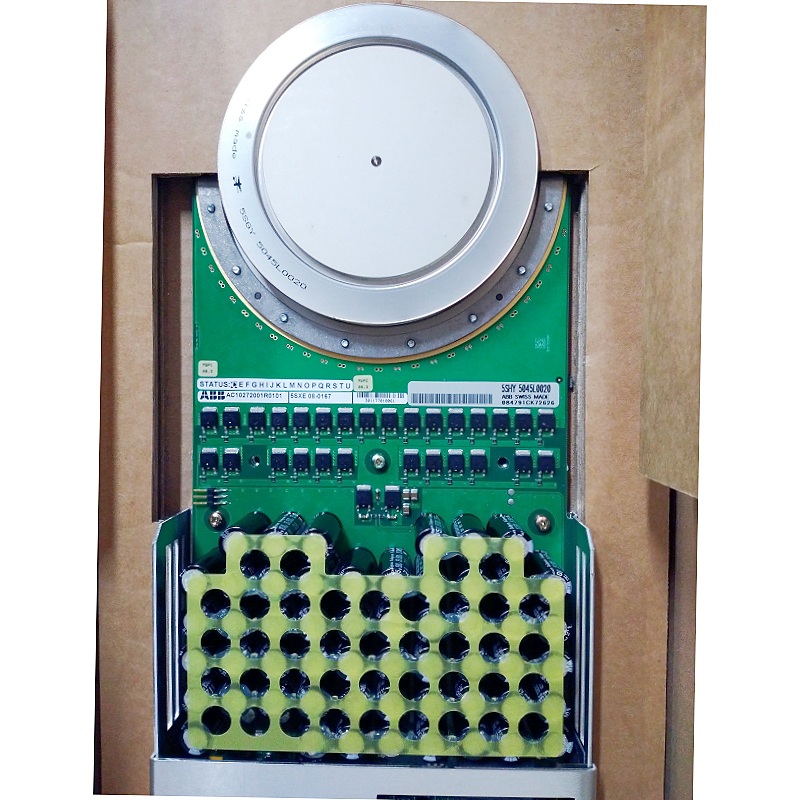

ABB 5SHY5045L0020 IGCT Module
ABB 5SHY5045L0020
The 5SHY5045L0020 is an IGCT (Integrated Gate-Commutated Thyristor) module manufactured by ABB. As a key semiconductor device in the ABB 5SHY series for High-Voltage Direct Current (HVDC) and power electronics applications, it combines the high current drive capability of IGBTs with the high input impedance of MOSFETs. This module delivers high power density, fast switching performance, and reliable operation, making it widely suitable for industrial drives, energy conversion systems, and new energy applications.
Key Technical Specifications (Excerpted from Product Datasheet)
- Rated Voltage: 4500 V (gate energized), 2800 V (DC link)
- Rated Current: 4000 A, Short-time Current: 35 kA
- On-state Voltage Drop (V_T0): 1.15 V, On-state Resistance (r_T): 0.21 mΩ
- Maximum Turn-off Current: Approximately 6.25 kA (HVDC specification)
- Operating Temperature Range: -40 °C ~ 55 °C, Cooling Method: Water cooling
- Mechanical Dimensions: Length 439 mm, Width 173 mm, Height 40 mm, Weight: Approximately 18 kg
Product Features
- High Efficiency & Low Power Consumption: Advanced semiconductor technology enables low on-state voltage drop and minimal switching losses.
- Compact & Lightweight: Small size and light weight facilitate installation in space-constrained systems.
- High Reliability: Equipped with multiple protection functions (overload, short circuit, over-temperature) and strong electromagnetic interference (EMI) resistance.
- Modular Design: Easy integration into HVDC, variable frequency drive, and power conversion systems, supporting redundant design and fault diagnosis.
- Environmental Compliance: RoHS-compliant with lead-free materials.
Structure & Composition
- IGCT Main Body: Integrated gate-commutated thyristor responsible for high-speed switching.
- Heat Dissipation System: Water-cooled or forced air-cooled structure to maintain safe operating temperatures during high-power operation.
- Electrical Terminals: High-current/high-voltage terminals enabling quick connection and maintenance.
- Control Interface: Provides gate drive signals and status feedback for monitoring by upper-level controllers or PLCs.
Typical Application Fields
- Converter stations in High-Voltage Direct Current (HVDC) transmission systems
- High-power variable frequency drives (e.g., steel, mining, papermaking, marine industries)
- Grid-connected inverters for new energy (wind power, photovoltaic)
- Large motor drives and power regulation (power plants, industrial automation)
- Power electronic devices requiring high reliability and fast switching
Installation & Maintenance Guidelines
- On-site Inspection: Verify that the installation environment meets temperature, ventilation, and protection class requirements (IP55 or higher).
- Mechanical Fixing: Use manufacturer-supplied bolts and brackets to securely mount the module on heat sinks or cabinets.
- Electrical Connection: Follow wiring specifications for rated current and voltage, using appropriate high-voltage terminals and protective sleeves.
- Cooling System: Select water-cooled or air-cooled solutions based on power rating, ensuring cooling medium flow meets heat dissipation needs.
- Commissioning & Testing: Check insulation resistance before power-on; calibrate gate drive signals and verify status feedback after power-on.
- Regular Maintenance: Inspect heat sink cleanliness, connection tightness, and gate drive circuit integrity every 6–12 months. Replace aging cooling media or terminals if necessary.
————————————————————————————————————-
