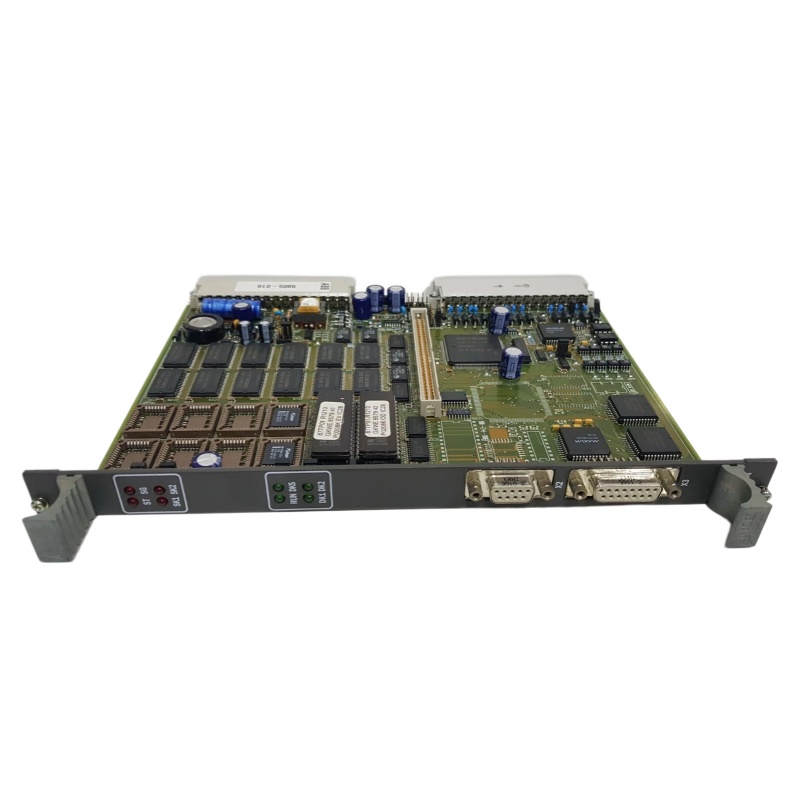

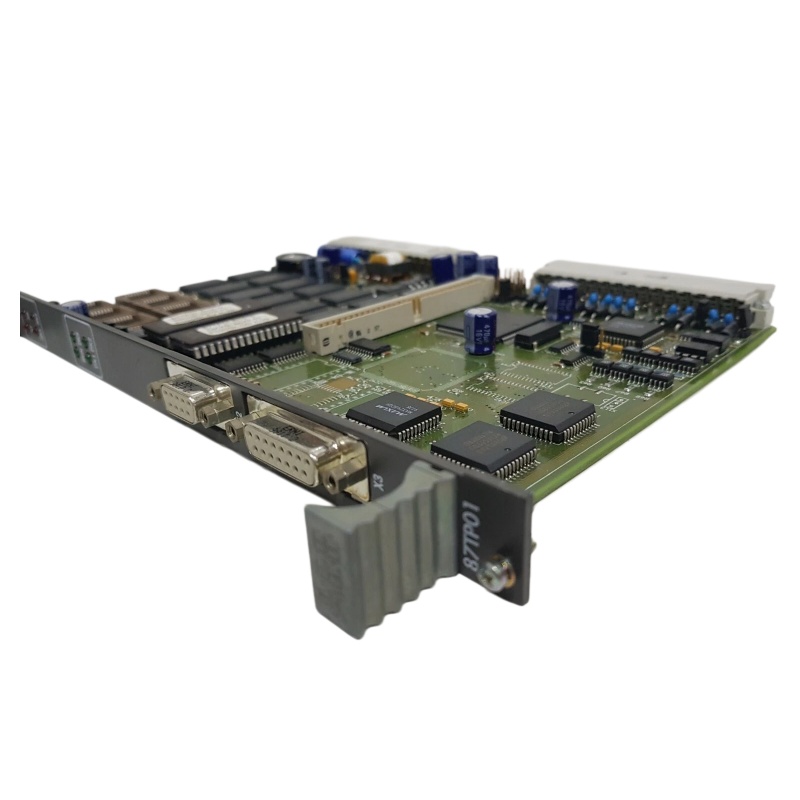

ABB 87TP01-R1210 Turbine Protection Module
ABB 87TP01-R1210
1. Overview
The ABB 87TP01-R1210 (full model designation: 87TP01 GHKWE857900R1210) is a turbine protection module and transformer differential protection relay manufactured by ABB. It is a hardware component of the ABB Ability™ Symphony® Plus system.
2. Product Features
2.1 Core Protection Functions
- Comprehensive Protection Performance: Equipped with multiple protection functions including overspeed tripping, overspeed protection, acceleration protection, reverse surge protection, tripping pre-warning, load drop pre-warning, and power unbalance protection.
- Inrush Current Mal-operation Prevention: Effectively avoids erroneous actions caused by transformer inrush current.
- External Fault Mal-operation Restraint: Adopts optimized restraint characteristics to prevent mal-operation induced by external system faults.
- CT Transient Saturation Resistance: Equipped with targeted measures to eliminate mal-operations during the transient saturation process of current transformers (CT).
- CT Breakage Detection: Supports current transformer breakage judgment, with alarm output and configurable blocking logic for ratio differential protection.
- Differential Current Over-limit Alarm: Realizes real-time monitoring and alarm notification for excessive differential current.
- Over-excitation Mal-operation Prevention: Prevents erroneous actions caused by system over-excitation, applicable to power systems of 330kV and above.
2.2 Communication Functions
- Supports multiple mainstream communication protocols, including Modbus, Ethernet/IP, and CANopen.
- Comes with standard RS485 and industrial CAN communication interfaces for flexible system connection.
- Integrates SOE (Sequence of Events) function to record operation and fault events accurately for subsequent troubleshooting.
3. Technical Parameters
|
Item
|
Parameters
|
|---|---|
|
Analog Input (AI) Channels
|
5 groups of isolated inputs (4…20 mA or 1…+5 VDC)
|
|
Analog Output (AO) Channels
|
2 groups of isolated 0…24 mA outputs
|
|
Digital Input (DI) Channels
|
5 CH-2-CH isolated inputs (24/48/125 VDC)
|
|
Digital Output (DO) Channels
|
2 Form A contact outputs (120 VAC / 149 VDC)
|
|
Total Channel Quantity
|
14 channels in total
|
|
Standard Dimension
|
190 mm
|
|
Mean Time Between Failures (MTBF)
|
234,052 hours (in accordance with MIL-HDBK-217-FN2 standard)
|
|
Mean Time To Repair (MTTR)
|
1 hour
|
4. Structure and Composition
- Installation Mode: Supports horizontal arrangement and vertical installation.
- Redundancy Design: Built-in redundant structure to improve equipment operation reliability.
- Enclosure Protection: Standard protection grade of IP20.
- Mounting Type: Applicable for DIN rail mounting and cabinet installation.
5. Application Fields
5.1 Applicable Equipment
- Steam Turbine: Provides comprehensive protection for all types of steam turbines.
- Gas Turbine: Ensures the safe and stable operation of gas turbines.
- Water Turbine: Guarantees the reliable operation of water turbine units.
5.2 Application Scenarios
- Differential protection for two-winding main transformers
- Differential protection for three-winding main transformers
- Differential protection for two-winding distribution transformers
- Industrial automation scenarios such as PLC and I/O module system integration
6. Environmental Parameters
|
Parameter Item
|
Values
|
|---|---|
|
Operating Temperature Range
|
-25°C to +70°C
|
|
Storage Temperature
|
-20°C to +55°C, relative humidity ≤85%
|
|
Transportation Temperature
|
-40°C to +70°C, relative humidity ≤85%
|
7. Installation and Maintenance Guidelines
7.1 Installation Precautions
- The installation environment shall be equipped with sunshade, rain and snow protection, lightning protection, dust prevention and good ventilation facilities.
- The installation site shall not be exposed to electromagnetic interference exceeding the standard specified range.
- DIN rail mounting or cabinet-type installation is recommended for optimal stability and heat dissipation.
7.2 Maintenance Guidelines
- The device is integrated with hardware and software monitoring functions to automatically monitor real-time operating status.
- It can automatically trigger alarm, self-reset and other response measures for detected abnormalities and faults, and record relevant data.
- All recorded data can be permanently stored without loss even if the DC power supply is cut off.
- Clock accuracy requirement: time synchronization accuracy ≤1ms, 24-hour time error ≤5s.
————————————————————————————————————-
