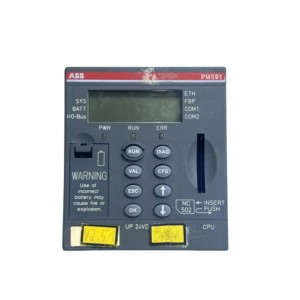

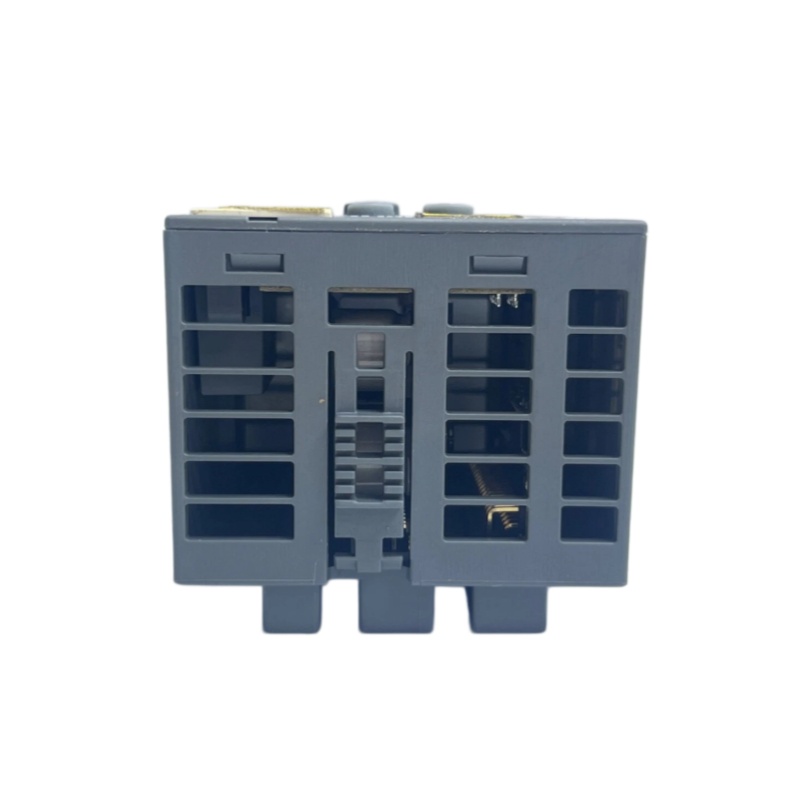

ABB PM591 1SAP150100R0271 CPU module
ABB PM591 1SAP150100R0271
1. Product Overview
The ABB PM591-ETH 1SAP150100R0271 is a central processing unit (CPU) module for the ABB AC500 series programmable logic controller (PLC). Launched by ABB in 2005 as a core component of the AC500 series, this module is specially designed for industrial automation control scenarios. As an original genuine ABB product, it is widely deployed for logic control and data processing of various industrial systems, delivering stable and reliable operational performance for industrial automation equipment.
2. Technical Parameters
|
Parameter Item
|
Technical Specifications
|
|---|---|
|
Model
|
PM591-ETH 1SAP150100R0271
|
|
Memory
|
SDRAM: 32768K (4MB); Flash: 8192K (8MB)
|
|
Power Supply Voltage
|
24VDC
|
|
Communication Interfaces
|
Ethernet port, 2×RS232/485 serial ports, FBP interface
|
|
Supported Protocols
|
TCP/IP, UDP/IP, SNTP, MODBUS TCP, IEC60870-5-104
|
|
Display
|
Orange LCD display screen
|
|
Extended Storage
|
SD card slot, compatible with MC502 SD memory card (128MB)
|
|
Maximum I/O Points
|
Supports expansion of up to 10 I/O modules, with a maximum of 320 I/O points
|
|
Communication Module Expansion
|
Supports simultaneous operation of 4 external communication modules
|
3. Product Features
- High Performance: Adopts single-task programming architecture with fast response speed, which facilitates the design and operation of high-efficiency automated machinery and equipment.
- Large Memory Capacity: The maximum number of program organization units can be increased by four times, enabling large-capacity data storage and supporting complex industrial application scenarios.
- High Usability: Equipped with user-friendly engineering tools. The configurable network interface greatly accelerates project development speed and simplifies daily equipment maintenance work.
- Rich Communication Functions: Supports remote operation, automatic real-time monitoring, and standardized Ethernet communication, which can replace traditional fieldbus solutions to realize more efficient data transmission.
- Flexible Expansion Performance: Input and output points can be expanded by matching extended modules, meeting the control requirements of large-scale and complex industrial systems.
- Integrated Multi-Communication Interfaces: Built-in diverse communication interfaces and compatible with multiple mainstream industrial communication protocols, realizing convenient connection and data interaction with various industrial automation devices.
4. Structure and Composition
- Main CPU Module: Integrated with an LCD display screen and physical operation keys for on-site parameter viewing and manual configuration.
- CPU Baseplate: The PM591-ETH module can be installed on a universal CPU baseplate. Three types of baseplates with different numbers of communication expansion slots are available: TB511-ETH (1 slot), TB521-ETH (2 slots), and TB541-ETH (4 slots).
- Supporting Software: Matched with PS501 Control Builder AC500 engineering software for program programming, parameter configuration, equipment debugging and system maintenance.
- Extended Modules: Includes digital and analog I/O modules; various professional communication modules such as CM572-DP (Profibus DP), CM575-DN (DriveNet), CM577-ETH, and CM578-CN (CANopen).
- Status Indicator Lights: Equipped with RUN and other status indicator lights to intuitively display the real-time operating status of the system and facilitate equipment status inspection.
5. Application Fields
As a high-performance industrial PLC CPU module, PM591-ETH is widely applied in multiple industrial automation fields, covering:
- Energy Industry: Wind power generators, solar trackers and new energy power generation equipment
- Power Industry: High-voltage switch production, power system regulation and control
- Transportation Industry: Large marine vessels, tunnel automation systems, traffic intelligent control systems
- Manufacturing Industry: Packaging equipment, printing machines, industrial robots and automated production lines
- Automation Integration: SCADA system deployment, remote equipment operation and real-time monitoring
- Other Industrial Control Scenarios: Metallurgy, petroleum, chemical engineering and other heavy industrial automation control systems
6. Installation and Maintenance
6.1 Installation Requirements
- Installation Specifications: All installation and maintenance operations must comply with official technical regulations, industry standards and relevant norms such as EN 60204-1.
- Installation Personnel: Only skilled and professional electricians are allowed to conduct equipment installation, wiring and maintenance operations.
- Power Wiring: Adopts 24VDC power supply, and stable and reliable power input must be guaranteed during operation.
- Grounding Requirements: Install in compliance with EMC electromagnetic compatibility standards, with complete grounding and shielding treatment to avoid electromagnetic interference.
- Wiring Mode: The terminal board supports multiple wiring modes, and all wiring operations shall strictly follow official recommended specifications.
6.2 IP Configuration
The IP address of the module can be directly configured through the built-in CPU keyboard, which supports on-site rapid parameter setting and network debugging.
6.3 Precautions
- Safety Guidelines: Users must read and fully understand the safety instructions and key safety points before equipment operation.
- Environmental Requirements: Abide by relevant industry standards and laws and regulations, especially the special environmental requirements for hazardous areas with explosive substances, severe pollution or corrosive media.
- Fault Handling: The system has a built-in self-diagnosis function, which can automatically detect equipment faults and support quick troubleshooting and problem location.
- Maintenance Suggestions: Optimize the development and maintenance process with supporting engineering tools, and regularly inspect and record the system operating status to ensure long-term stable operation of the equipment.
————————————————————————————————————-
