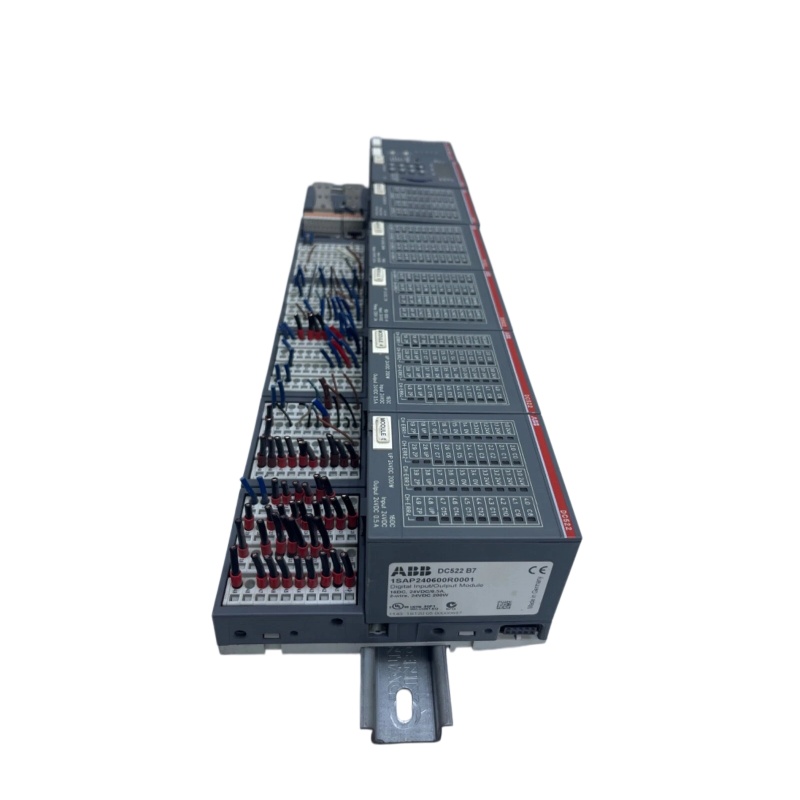

ABB CM572+CM577+PM573+AX521+3xDC522+DX522 Control System
ABB CM572+CM577+PM573+AX521+3xDC522+DX522
1. System Overview
- CM572/CM577: Communication modules responsible for network communication and data transmission
- PM573: Power supply module that provides power supply for the system
- AX521: Analog input/output module for processing analog signals
- DC522×3: Digital input/output module for processing switching signals
- DX522: Digital output module with relay output function
2. Main Parameters
2.1 CM572 Communication Module
|
Parameter Item
|
Specification
|
|---|---|
|
Dimension
|
96×96×59mm
|
|
Weight
|
0.3kg
|
|
Operating Temperature
|
-10℃ to 55℃
|
|
Operating Humidity
|
0-90% RH
|
|
Input Voltage
|
100-240VAC, 50/60Hz
|
|
Display Screen
|
3.5-inch TFT color screen
|
|
Communication Protocol
|
Modbus RTU, Modbus TCP/IP, Profibus DP
|
2.2 CM577 Communication Module
|
Parameter Item
|
Specification
|
|---|---|
|
Function
|
Integrated dual-port TCP/IP switch module
|
|
Status Indicators
|
PWR (Power), RDY (Ready), RUN (Operation), STA (Status), ERR (Error)
|
|
Communication Interface
|
2 Ethernet RJ45 ports
|
|
Address Setting
|
Rotary switches of ADDR x10H and ADDR x01H
|
2.3 PM573 Power Supply Module
|
Parameter Item
|
Specification
|
|---|---|
|
Input Voltage
|
24V DC
|
|
Output Power
|
130W
|
|
Operating Mode
|
Hot-swap supported
|
|
Applicable Environment
|
Standard industrial environment
|
2.4 AX521 Analog Module
|
Parameter Item
|
Specification
|
|---|---|
|
Analog Input
|
4 AI channels
|
|
Analog Output
|
4 AO channels
|
|
Power Supply Voltage
|
24V DC
|
|
Power Consumption
|
5W
|
|
Channel Configuration
|
Each channel can be independently configured as input or output
|
2.5 DC522 Digital Module
|
Parameter Item
|
Specification
|
|---|---|
|
Channel Configuration
|
16 configurable DI/DO channels
|
|
Input Voltage
|
24V DC
|
|
Output Voltage
|
24V DC
|
|
Output Current
|
0.5A
|
|
Electrical Isolation
|
Electric isolation between modules
|
|
Status Indication
|
16 yellow LEDs (C0-C15), 1 green power LED, 4 red error LEDs
|
|
Special Version
|
XC version available for extreme environment applications
|
2.6 DX522 Digital Output Module
|
Parameter Item
|
Specification
|
|---|---|
|
Input Channels
|
8 digital input channels
|
|
Output Channels
|
8 relay output channels
|
|
Input Voltage
|
24V DC
|
|
Output Voltage
|
230V AC/3A or 24V DC
|
|
Switching Frequency
|
2Hz
|
|
Contact Capacity
|
Maximum 3A resistive load @230V AC
|
|
Overload Protection
|
Protected by external fuse or circuit breaker
|
3. Product Features
3.1 Modular Design
- Adopts standardized interfaces for convenient installation and maintenance
- Each module can be replaced independently with compatible software, communication and I/O modules
- Supports flexible configuration and expansion to meet system upgrade requirements
3.2 Powerful Communication Capability
- Supports parallel operation of multiple bus systems
- Compatible with ARCNET network to realize distributed control
- Built-in TCP/IP protocol stack supports Ethernet communication
3.3 High Performance
- The CPU processing speed reaches 0.1 microseconds per instruction
- Supports high-speed counting, PWM output, interrupt input and other advanced functions
- Equipped with large-capacity memory and supports SD card data operation
3.4 High Safety and Reliability
- Electric isolation design between modules enhances anti-interference capability
- XC version is available for extreme working environments
- Equipped with complete status monitoring and error indication functions
3.5 User-Friendly Programming
- AC500 ControlBuilder programming software complies with IEC61131-3 international standards
- Supports multi-language programming
- Pre-wired design simplifies system construction and deployment
4. Structure and Composition
4.1 Physical Structure
- Installation Method: DIN rail mounting or rack mounting
- Layout: Modules are connected via local I/O bus, with a maximum of 10 I/O modules supported for central expansion
- Connection: All modules adopt standardized interface connection, enabling rapid system deployment
