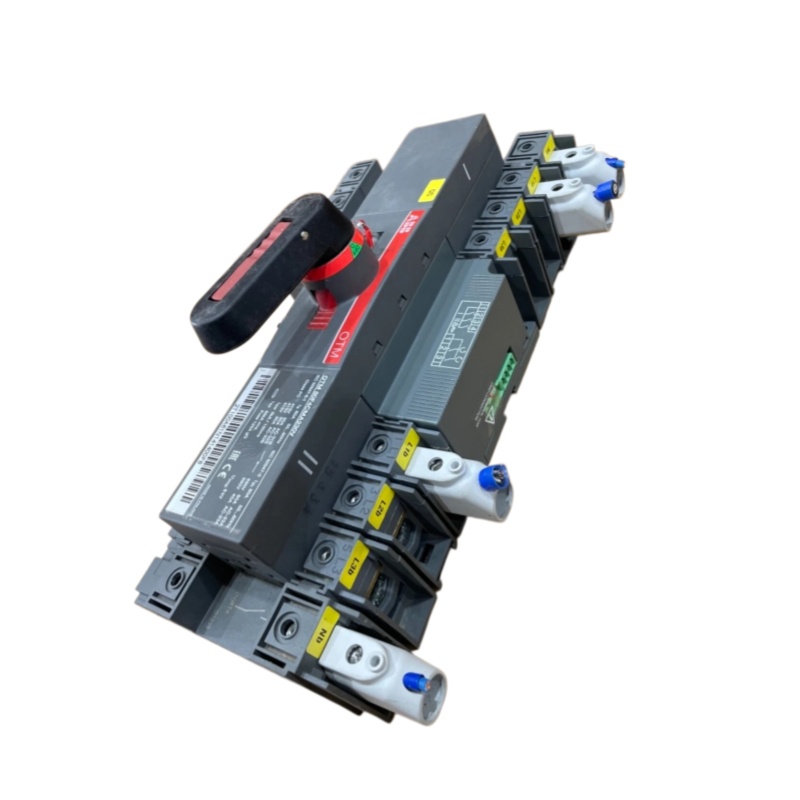

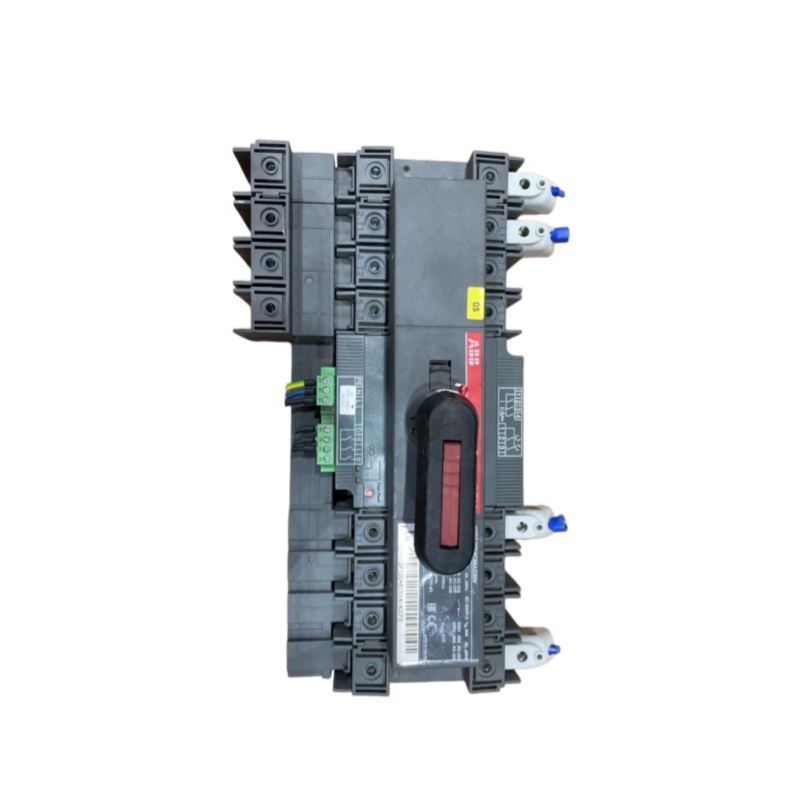

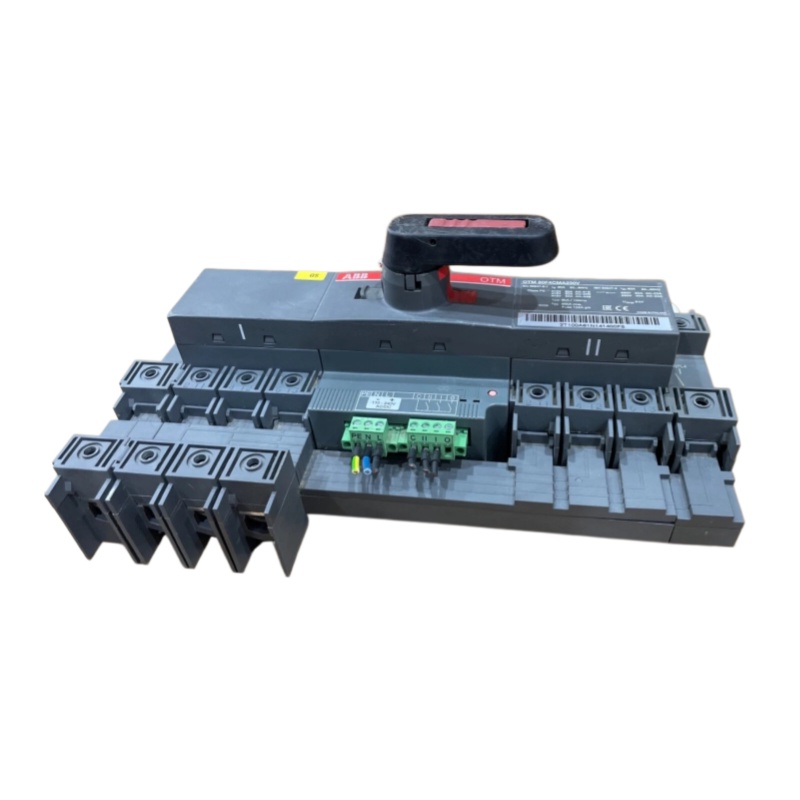

1. Product Overview

2. Main Technical Parameters

3. Product Features

• Cost-Effective Installation: Featuring a compact structure and simplified wiring design, the product greatly saves installation time, occupied space and overall engineering costs.
• High Safety and Reliability: Equipped with a fuse protection mechanism to prevent motor overcurrent damage. It supports both remote electric operation and manual emergency operation to cope with diverse operating scenarios.
• Maintenance-Free Motor System: The built-in motor is designed as maintenance-free, effectively reducing long-term operation and maintenance costs for users.
• Superior Environmental Adaptability: Optimized for harsh industrial working conditions, delivering stable and reliable operating performance in complex industrial environments.
• International Standard Compliance: Certified and tested in accordance with EN 60947-3, IEC and UL international standards, ensuring universal applicability and quality compliance.
• Flexible Operation: Supports remote opening and closing control through ON/OFF signal input, realizing automatic and remote management of electrical circuits.

4. Structure and Composition

• Motor Operating Mechanism: Integrated high-performance motor system to realize automatic remote electric control of circuit breaking and closing.
• Fuse Protection Unit: Provides overcurrent protection for the motor to avoid equipment damage caused by abnormal current.
• Base Mounting Structure: Adopts rigid base mounting design for stable and firm installation inside power distribution cabinets.
• Terminal Block: Standard electrical connection interface, supporting multi-directional wiring including top and bottom access.
• Operating Handle: Matched with manual operation function for manual switching under special or emergency conditions.
• Auxiliary Contact: Optional configurable component for real-time signal feedback and system linkage control.
• Protective Enclosure: IP20 front protection rating to prevent accidental contact with live parts and ensure operational safety.

4.1 Model Coding Definition

• OTM: Series code for ABB motor-operated disconnectors
• 80: Rated operating current of 80A
• F: Mounting type (base mounting / base & DIN rail mounting)
• 4: 4-pole circuit configuration
• CMA: The fourth pole synchronizes with the main contact function
• 230V: Motor operating voltage range (220-240V AC/DC)

5. Application Fields

• Industrial Power Distribution Systems: Serves as the main switch for on-site industrial power boxes and cabinets to support remote intelligent operation.
• Electrical Cabinets & Switchgear: Installed in power distribution cabinets as the core isolation and circuit breaking switch for circuit safety control.
• Pole-Mounted Power Distribution Systems: Applicable as the main switch for pole-mounted power distribution equipment and integrated distribution boxes.
• Renewable Energy Systems: Partial models (160～2500A series) are suitable for DC side control of solar inverter systems.
• Automatic Transfer Switch Scenarios: Ideal for occasions requiring automatic switching between dual power supplies to ensure continuous power supply.
• Remote Control Electrical Systems: Widely applicable to all electrical systems that require remote opening and closing operation management.

6. Installation and Maintenance

6.1 Installation Precautions

• Installation Environment: Install in a dry space free of corrosive gases, with ambient temperature meeting the product’s specified operating range.
• Base Fixing: Adopt standard base mounting method, and fix the device firmly on the back plate of the distribution cabinet with matched bolts.
• Wiring Connection: Wire strictly in accordance with terminal identification marks to ensure tight and reliable electrical connections.
• Operating Handle Installation: The operating handle needs to be purchased separately and installed at the designated 6mm shaft position.
• Safety Distance: Comply with national and international electrical safety specifications to reserve sufficient safety distance and meet insulation requirements.

6.2 Maintenance Guidelines

• Regular Inspection of Connections: Periodically check whether the wiring terminals are loose or oxidized to ensure stable circuit connection.
• Manual Operation Test: Regularly test the manual switching function to ensure normal response in emergency situations.
• Appearance and Protection Check: Inspect the integrity of the equipment shell to ensure the original IP20 protection level is maintained.
• Motor Operating Inspection: Although the motor is maintenance-free, regularly check for abnormal noise, vibration and other faulty phenomena during operation.
• Cleaning and Ventilation Maintenance: Regularly remove dust on the equipment surface to keep the device well ventilated and avoid heat accumulation.
