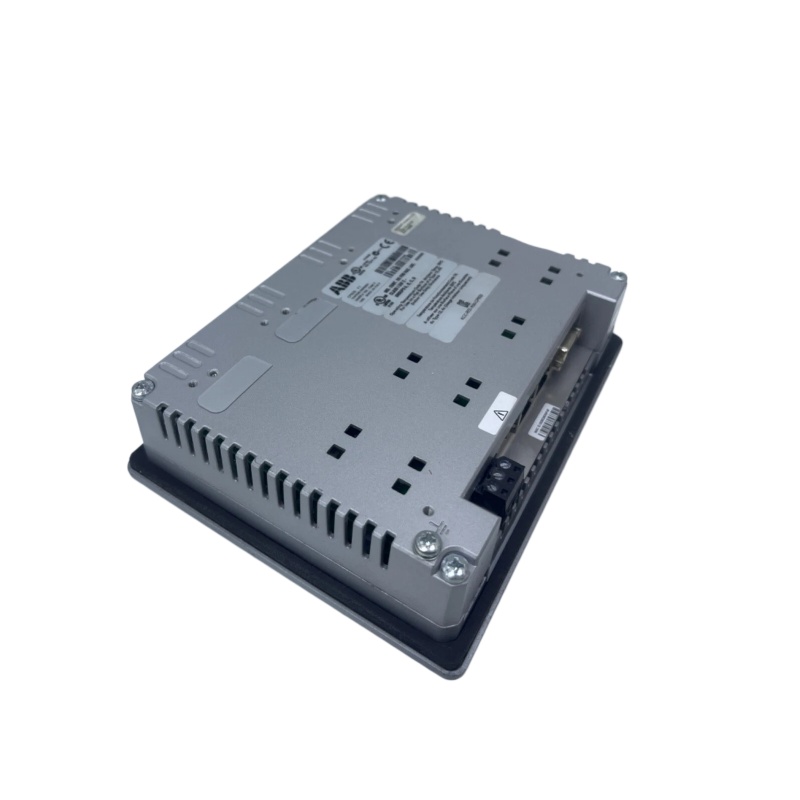

ABB CP635 1SAP535100R5001 Control Panel
ABB CP635 1SAP535100R5001
1. Product Overview
2. Main Technical Specifications
|
Parameter Item
|
Technical Specifications
|
|---|---|
|
Screen Size
|
7-inch TFT Touch Screen
|
|
Resolution
|
800×480 Pixels
|
|
Display Colors
|
64K Colors (16:9 Aspect Ratio)
|
|
Backlight Type
|
LED Backlight
|
|
Operating Temperature
|
0°C – 50°C
|
|
Storage Temperature
|
-20°C – 70°C
|
|
Power Supply Voltage
|
24V DC (18V – 30V DC)
|
|
Power Consumption
|
16.8W
|
|
Ingress Protection Rating
|
Front Panel: IP66, Housing: IP20
|
|
Service Life
|
40,000 Hours
|
|
Dimensions
|
187mm (W) × 147mm (H) × 51mm (D)
|
|
Net Weight
|
0.76kg
|
|
Gross Weight
|
1.2kg
|
3. Communication and Interface Configuration
- Ethernet Ports: 2 × 100Mbit Ethernet Ports
- Serial Communication: 1 × RS232/422/485 Port
- USB Interface: 2 × USB 2.0 Host Ports
- Storage Media: 1 × SD Card Slot
- Expansion Slots: 2 × Expansion Slots
-
Memory Configuration:
- Flash Memory: 128MB
- DDR RAM: 256MB
4. Security and Functional Features
- Password Protection: Supports 8-level password protection
- Hardware Clock: Built-in hardware real-time clock
- Battery Backup: Equipped with battery backup function for data and clock retention
- Runtime License: Compatible with PB610 Panel Builder 600 runtime license
5. Structure and Composition
- Display Module: 7-inch TFT LCD screen with capacitive touch sensing layer
- Control Circuit Board: Integrated with processor, memory and communication controller
- Power Module: 24V DC input power conversion circuit
- Communication Module: Integrated with Ethernet, serial port, USB and other communication interfaces
- Housing Assembly: IP66-rated front panel and IP20-rated main housing
- Battery Assembly: Backup battery for real-time clock operation and data storage protection
6. Application Fields
- Manufacturing Automation: Production line monitoring and intelligent control
- Mechanical Equipment: Operation interface for industrial machinery and equipment
- Process Control: Process industries such as chemical engineering and water treatment
- Power Industry: Substation monitoring and power distribution system management
- Building Automation: Intelligent building management systems
- Robot Control: Integrated and compatible with ABB IRC5 robot controllers
- Servo Drive System: Matched with ABB E530 servo drives for collaborative operation
7. Installation Requirements
7.1 Environmental Requirements
- Operating ambient temperature: 0°C – 50°C
- Storage temperature: -20°C – 70°C
- Avoid direct sunlight and strong radiant heat sources
- Keep away from strong electromagnetic interference sources
- Ensure unobstructed ventilation for heat dissipation
7.2 Installation Method
- Mounting Type: Embedded panel mounting
- Cutout Size: Reserved installation opening of 187mm × 147mm
- Mounting Depth: Ensure a rear clearance of no less than 51mm
7.3 Connection Configuration
- Ethernet Connection: Connect with PLCs and other industrial devices via two Ethernet ports
- Power Connection: Adopt 24V DC power supply with correct positive and negative polarity connection
- Grounding Requirement: Reliable grounding is required to optimize EMC (Electromagnetic Compatibility) performance
8. Commissioning and Operation
- Initial Configuration: Complete hardware parameter configuration via Automation Builder software
- Communication Setup: Configure Windows Ethernet communication parameters for stable connection
- Project Download: Create and download HMI project files through Panel Builder software
- System Testing: Conduct online interface debugging and functional testing via the simulator function
