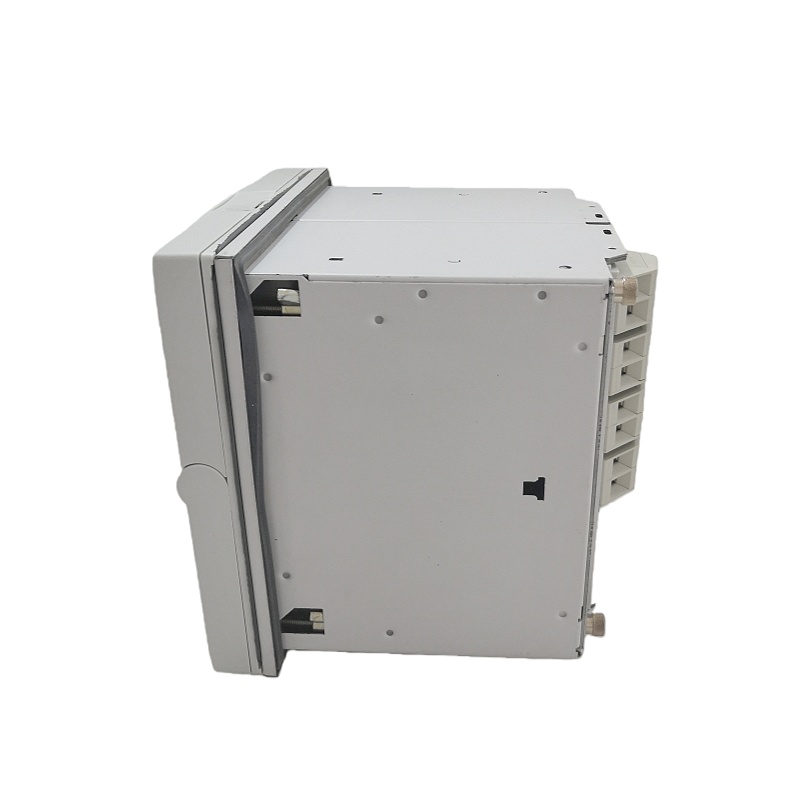

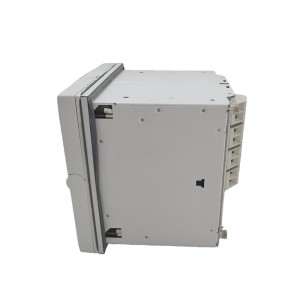

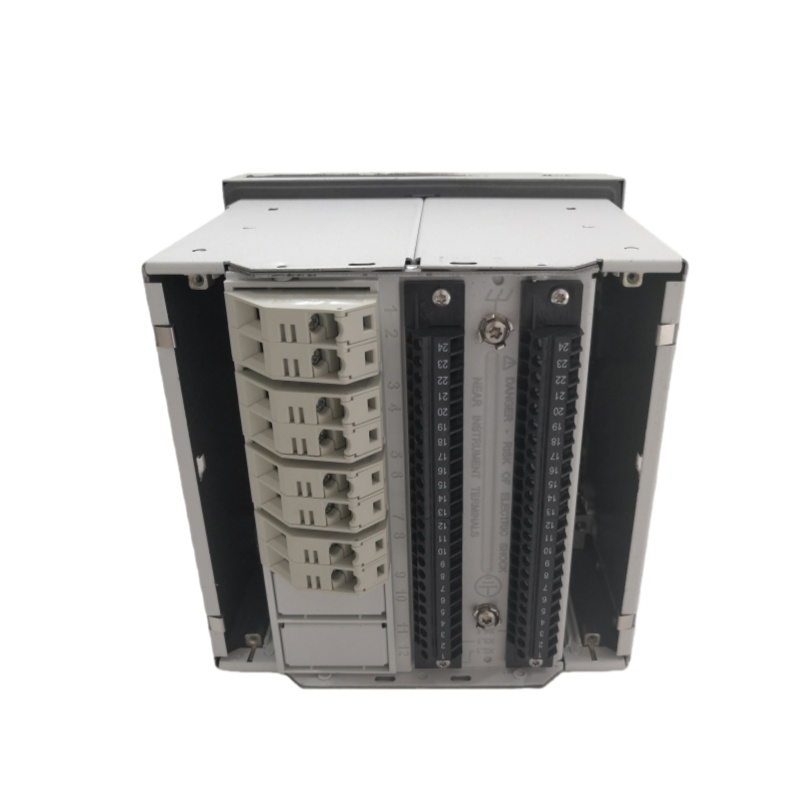

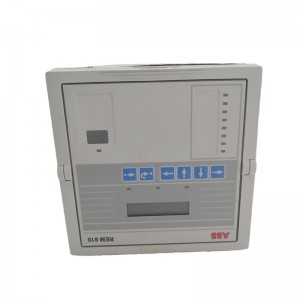

ABB REM610

The ABB REM610 is a digital feeder protection relay belonging to the ABB Relion 610 series. As a highly integrated device tailored for medium-voltage distribution automation, it integrates measurement, protection, communication, and human-machine interface (HMI) functions in one unit. It enables real-time multi-parameter monitoring and fault diagnosis of power grids or motors, helping users quickly locate and resolve power system anomalies and improve power supply reliability.

Main Technical Specifications

• Measurement Range: Voltage 0–1000 V, Current 0–100 A, Power 0–100 kW, Frequency 45–65 Hz
• Accuracy: Current ±0.5 %, Voltage ±0.2 %
• Resolution: 0.01 V, 0.01 A, 0.01 kW, 0.01 Hz
• Output Signals: 4–20 mA, RS‑485
• Power Supply: 24 V DC
• Operating Temperature: -40 °C to +70 °C
• Dimensions/Weight: Approx. 96 mm × 96 mm × 48 mm, 0.5 kg
• Communication Protocols: IEC 61850, Modbus, Profibus DP, etc.
• Protection Functions: Differential protection, stator fault protection, rotor locked-rotor protection, phase overcurrent protection, undercurrent protection, negative sequence protection, zero sequence protection, breaker failure protection, etc.

Product Features

1. High Integration: Combines measurement, protection, communication and HMI in a single device, reducing on-site wiring and equipment footprint.
2. Multiple Protection Strategies: Supports more than ten protection functions including motor thermal protection, start-up monitoring, rotor locked-rotor protection, overcurrent protection and negative sequence protection.
3. Flexible Communication: Compatible with mainstream industrial protocols such as IEC 61850, Modbus and Profibus, facilitating integration with SCADA/DCS systems.
4. Fast Response: Internal fault response time < 15 ms, meeting the high-speed protection requirements for critical loads.
5. Programmable Outputs: Provides 10 channels of programmable relay outputs to support secondary circuit interlocking.
6. Modular Design: Optional HMI, communication modules and measurement modules are available to meet the requirements of different projects.

Structure and Components

• Main Chassis: Equipped with processor, memory and power supply module.
• Measurement Unit: Voltage/current sensors and power metering circuits.
• Protection Logic Module: Implements various protection algorithms and time relays.
• Communication Module: Provides interfaces for IEC 61850, Modbus, Profibus, etc.
• Human-Machine Interface (HMI): Color display screen and keys for local parameter setting and fault indication.
• Optional Accessories: External relay output cards, communication fiber optic modules, mounting brackets, etc.

Typical Application Fields

• Feeder protection and automation in medium-voltage distribution substations.
• Protection and operation monitoring of high-power motors (≤ 10 MW).
• Scenarios requiring reliable power supply such as industrial parks, manufacturing industry, petrochemical industry and mining industry.
• Integration with upper-level systems like ABB 800xA and System 800 to achieve global monitoring and remote diagnosis.

Installation Key Points

1. On-site Environment: Ensure that the operating temperature and humidity comply with specifications (-40 °C to +70 °C) and avoid strong magnetic field interference.
2. Power Wiring: Use a 24 V DC regulated power supply and follow the polarity markings in the wiring diagram.
3. Measurement Circuit: Voltage transformers (VT) and current transformers (CT) shall be correctly selected according to the rated ratio and firmly installed.
4. Communication Wiring: Lay optical fibers or copper cables according to the selected protocol (e.g., IEC 61850) and keep the ports clean.
5. Cabinet Installation: Adopt a standard 19-inch cabinet and reserve sufficient heat dissipation space; avoid over-tightening screws to prevent cabinet deformation.
6. Grounding: All metal enclosures must be reliably grounded to prevent electric leakage and electromagnetic interference.

Maintenance Recommendations

1. Regular Inspection: Check CT/VT connections, terminal tightness and cabinet cooling holes for blockage every 6 months.
2. Firmware Upgrade: Obtain the latest firmware through the ABB remote service platform to enhance functions and security.
3. Self-Test Function: Use the built-in Self‑Test function to verify the status of internal hardware; the system will display error codes on the HMI in case of anomalies.
4. Spare Parts Management: Keep power supply modules, communication cards and HMI display screens in stock for quick replacement.
5. Log Storage: Regularly export event logs and trend data for subsequent analysis and fault tracing.
