ABB PHARSCH100000

1. Overview

The ABB PHARPSCH100000 is one of the widely used power supply chassis in the industrial automation sector by ABB. It belongs to the PHARPS series, which also includes various power modules and accessories such as PHARPS32000000, PHARPS32010000, and PHARPS32200000. The PHARPSCH100000 is typically used to support industrial automation systems like DCS (Distributed Control Systems) and PLC (Programmable Logic Controllers), providing multiple power outputs to meet the electrical demands of different modules.

2. Specifications

• Power Input: 120/240VAC (compliant with industrial voltage standards).
• Power Outputs:
  • 5V @ 60A
  • +15V @ 3A
  • -15V @ 3A
  • 24V @ 17A
  • 125V @ 2A
• Rated Power: Total power can exceed 800W, depending on configuration.

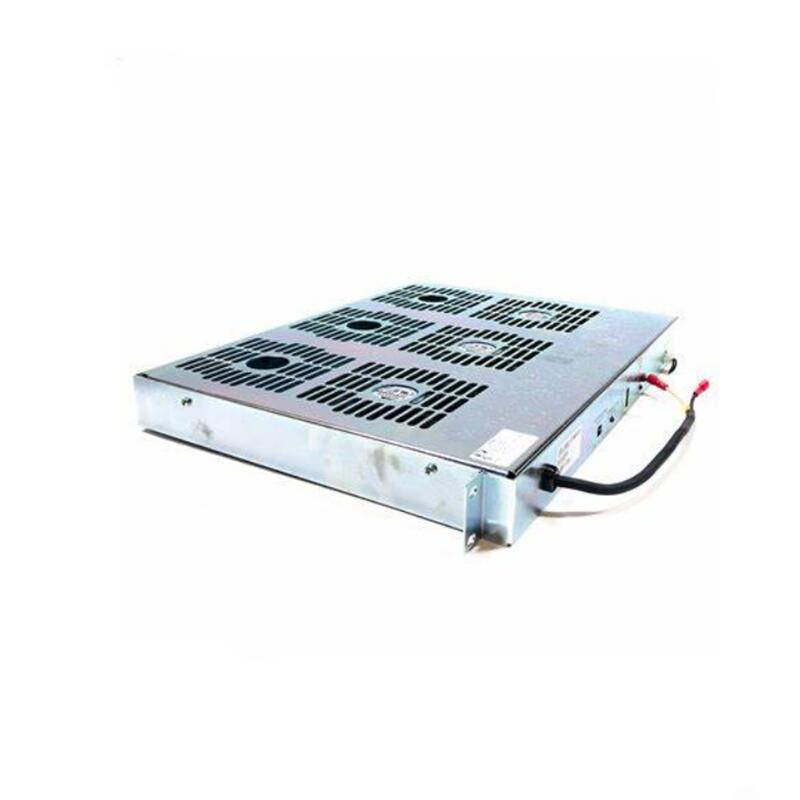

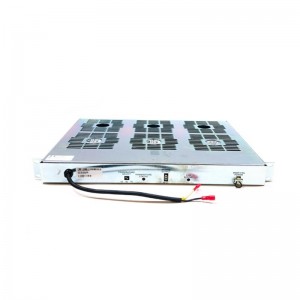

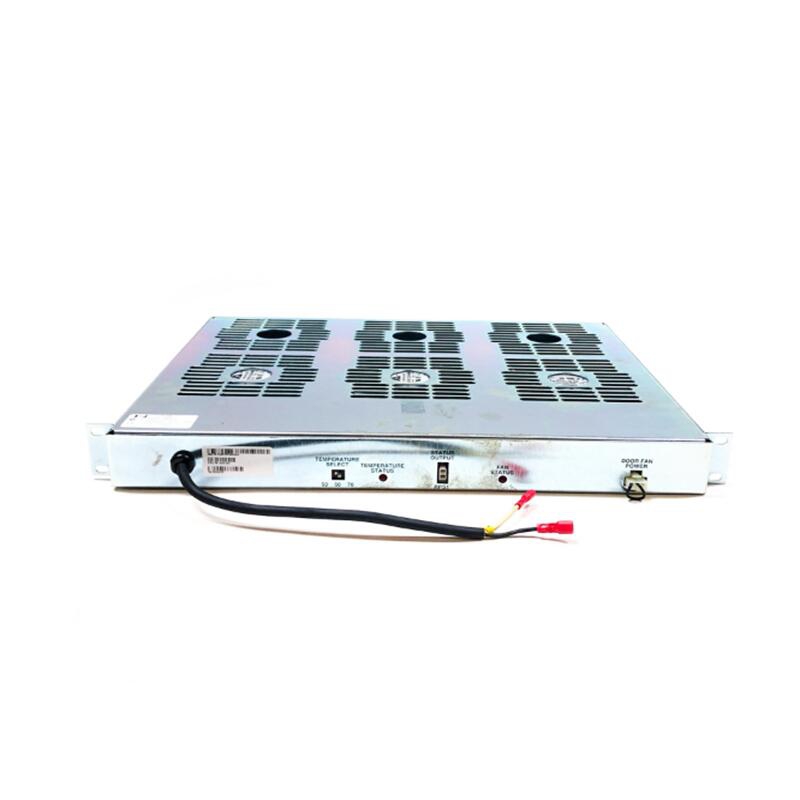

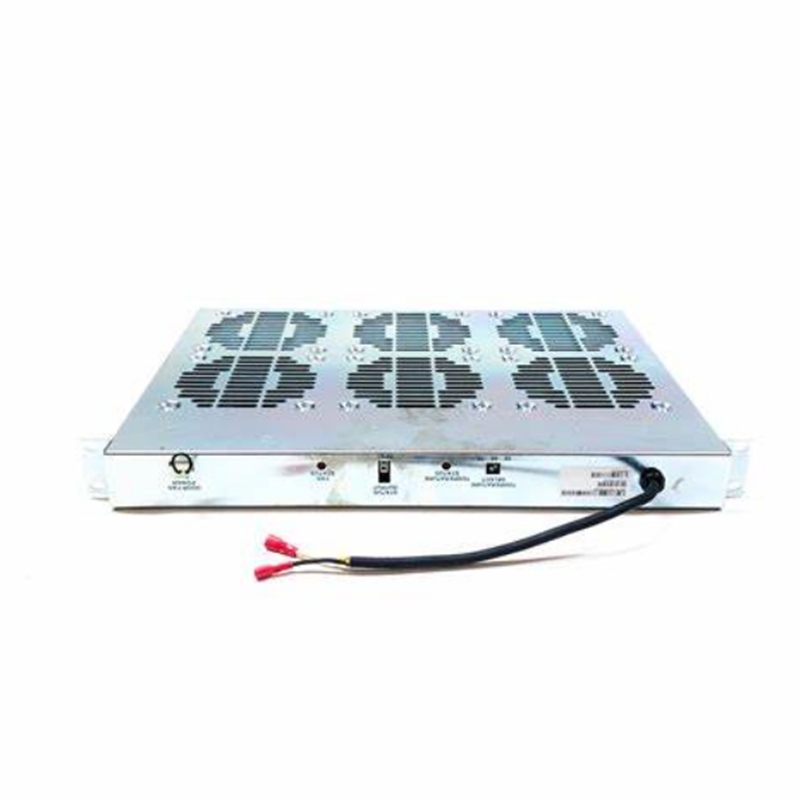

• Cooling System: Equipped with a monitoring and cooling fan (PHARPSFAN03000) to ensure efficient heat dissipation under high loads.
• Installation Options: Supports both Single Chassis and Dual Chassis setups to accommodate different industrial control system requirements.

3. Key Features

• High Reliability: As one of ABB’s core products, the PHARPSCH100000 utilizes high-quality power modules and thermal design to ensure stable operation in harsh industrial environments.
• Multi-Channel Output: Delivers various voltage and current combinations to power different industrial modules (e.g., CPU, I/O modules, servo drives).
• Modular Design: Allows flexible expansion, enabling users to add or replace power modules for improved maintainability and scalability.
• Strong Compatibility: Highly compatible with other ABB automation products (e.g., PLC, DCS, robotic systems) for seamless integration.
• Easy Maintenance: The modular structure simplifies part replacement, reducing downtime and maintenance costs.

4. Structure and Components

• Chassis Body: Made of metal housing, containing multiple power modules for stable output.
• Power Modules:
  • PHARPS32000000: Provides 5V @ 60A.
  • PHARPS32010000: Supplies 5V @ 60A, +15V @ 3A, and -15V @ 3A.
  • PHARPS32200000: Delivers 5V @ 60A, +15V @ 3A, -15V @ 3A, and 24V @ 17A.
• Cooling System: Includes the PHARPSFAN03000 monitoring and cooling fan for optimal thermal management.
• Connectors & Interfaces: Multiple ports for easy connection with external devices (e.g., I/O modules, servo drives).

5. Applications

• Industrial Automation Control Systems: Widely used in DCS and PLC setups to provide stable power for various modules.
• Robotic Systems: Compatible with ABB robotic systems (e.g., IRB 6400R, Palletizer Robot) to power servo motors and drives.
• Power Systems: Supplies stable power to inverters and frequency converters in electrical applications.
• Process Control: Used in industries like chemical, oil & gas, and metallurgy to power I/O modules and sensors in process control systems.

6. Installation & Maintenance

Installation:

• Single Chassis Setup: Ideal for small-scale control systems, offering simplicity and cost efficiency.
• Dual Chassis Setup: Suited for large-scale systems, providing redundancy and higher reliability.
• Module Expansion: Users can add or replace power modules based on needs for greater flexibility.

Maintenance:

• Regular Inspections: Check power modules and cooling systems periodically to ensure proper operation.
• Module Replacement: Faulty modules can be quickly swapped to minimize downtime.
• Cleaning & Upkeep: Keep the chassis interior clean to prevent dust buildup and maintain cooling efficiency.

———————————————————————————————————————————
