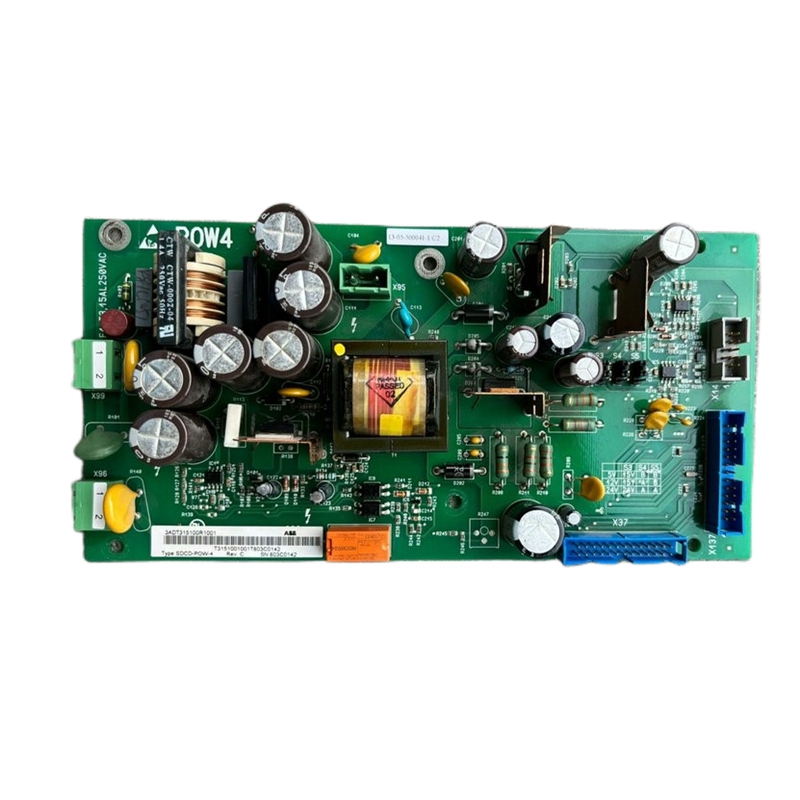

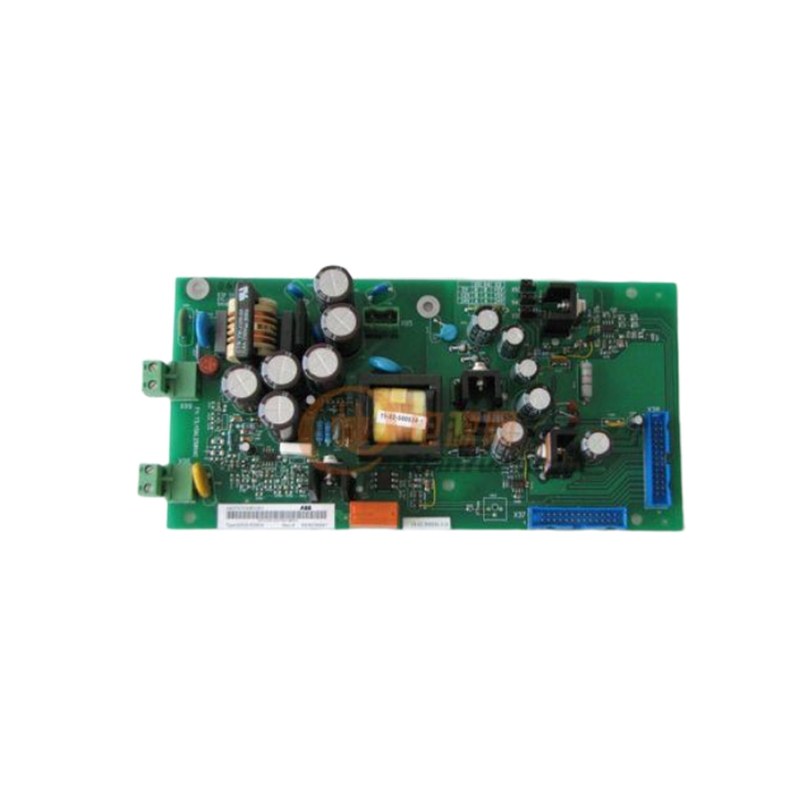

ABB SDCS-POW-4 power module

Short Description:

The ABB SDCS-POW-4 is a power supply unit provided by ABB for the Safety Distributed Control System (SDCS), designed to deliver stable and reliable DC power to other modules within the system. Supporting multiple industrial voltage inputs, it ensures stable operation across various industrial environments. As part of the ABB Ability™ System 800xA® hardware series, it features high integration, modular design, and exceptional reliability, making it suitable for diverse fields such as industrial automation, process control, drive control, and power distribution systems.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: ABB

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

ABB SDCS-POW-4

1. Overview

2. Technical Parameters

The specifications of the ABB SDCS-POW-4 may vary depending on the model and configuration, but typically include:

Input Voltage: 200-240V AC or 230V AC (some models support 380V AC).
Output Voltage: Typically 24V DC (some models support 0-500V DC).
Output Current: 4A to 40A.
Power Rating: 96W to 960W.
Efficiency: 85% to 96%.
Operating Temperature: -20°C to +70°C.
Protection Rating: IP20.
Mounting Method: DIN rail mounting.

3. Key Features

The ABB SDCS-POW-4 offers the following advantages:

High Reliability: Industrial-grade design ensures long-term stable operation.
Multi-Protection: Includes overcurrent, overvoltage, and short-circuit protection for enhanced safety.
Modular Design: Easy installation and maintenance, adaptable to control systems of varying scales.
High Efficiency: Minimizes energy loss with optimized power conversion.
Smart Monitoring: Features status monitoring and fault alarm functions.
Strong Compatibility: Supports multiple communication protocols, such as Modbus RTU, CANopen, and EtherNet/IP.
Flexible Configuration: Provides various voltage outputs to meet different module and device requirements.

4. Structure and Components

The ABB SDCS-POW-4 typically consists of the following components:

Main Power Module: Contains power conversion and control circuits.
Input Interface: Connects to external AC power sources.
Output Interface: Supplies DC power to connected system modules.
Protection Circuitry: Includes overcurrent, overvoltage, and short-circuit protection.
Control Circuit: Regulates output voltage and current for system stability.
Thermal Management: Equipped with fans or passive cooling to maintain performance under high loads.

5. Applications

The ABB SDCS-POW-4 is widely used in:

Industrial Automation: Production line control, packaging machinery, robotics, and HVAC systems.
Process Control: Chemical, oil & gas, and pharmaceutical industries.
Drive Systems: Servo drives and frequency converter systems.
Power Distribution: Elevator control systems and machine tool equipment.
EV Charging Stations: Powers chargers and charging stacks.
Building Automation: Control systems in smart buildings.
Transportation: Railway, metro, and port control systems.

6. Installation & Maintenance

The ABB SDCS-POW-4 is designed for easy installation and maintenance:

Installation: Typically mounted on a DIN rail. Ensure input power matches specifications and all connections are secure.
Maintenance: Modular design simplifies replacement. Regularly inspect input/output terminals for looseness or oxidation. Monitor cooling systems to prevent overheating.
