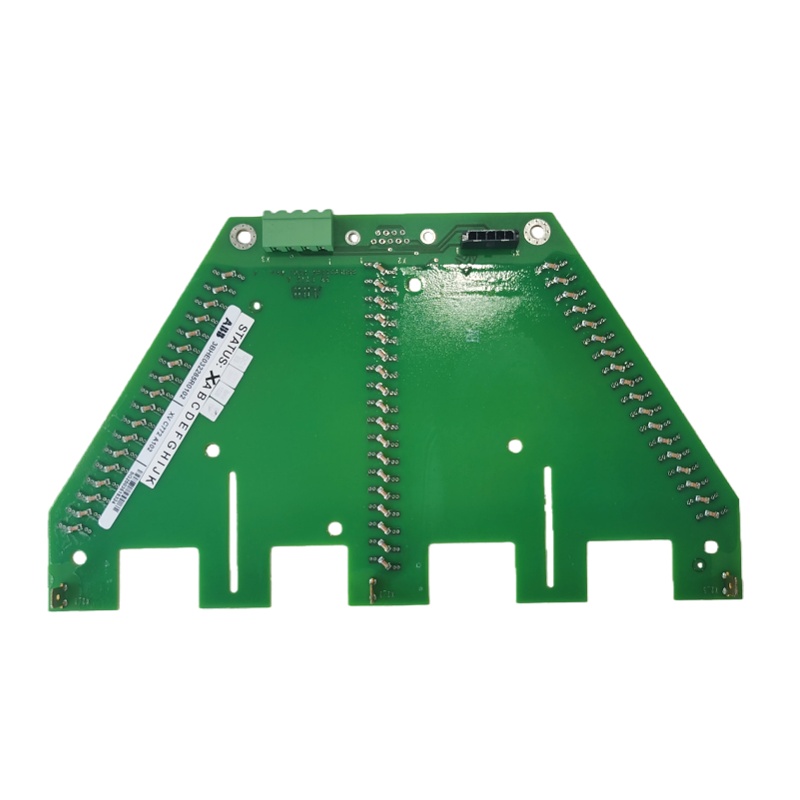

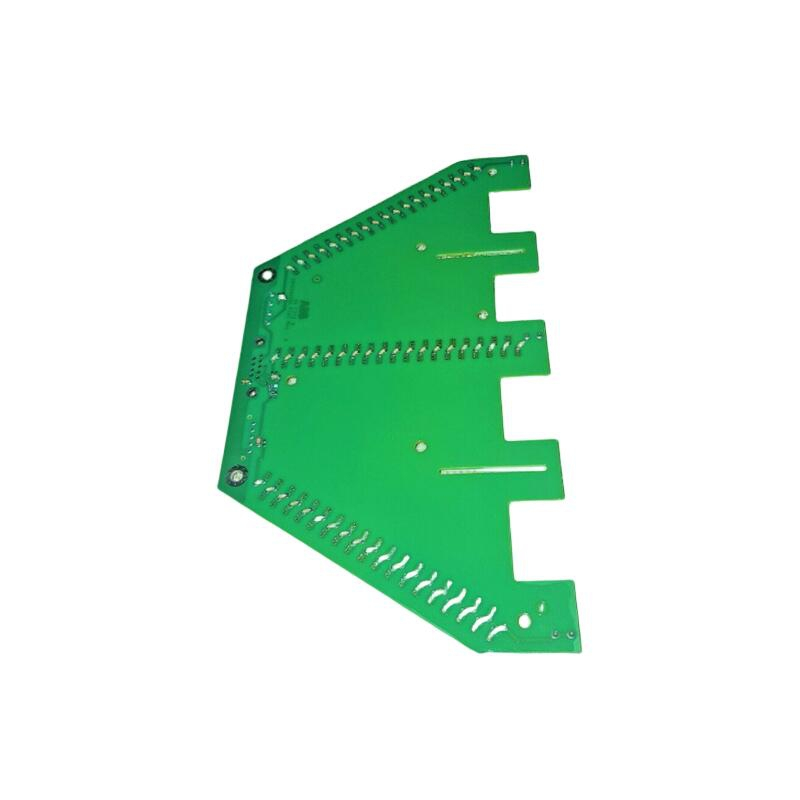

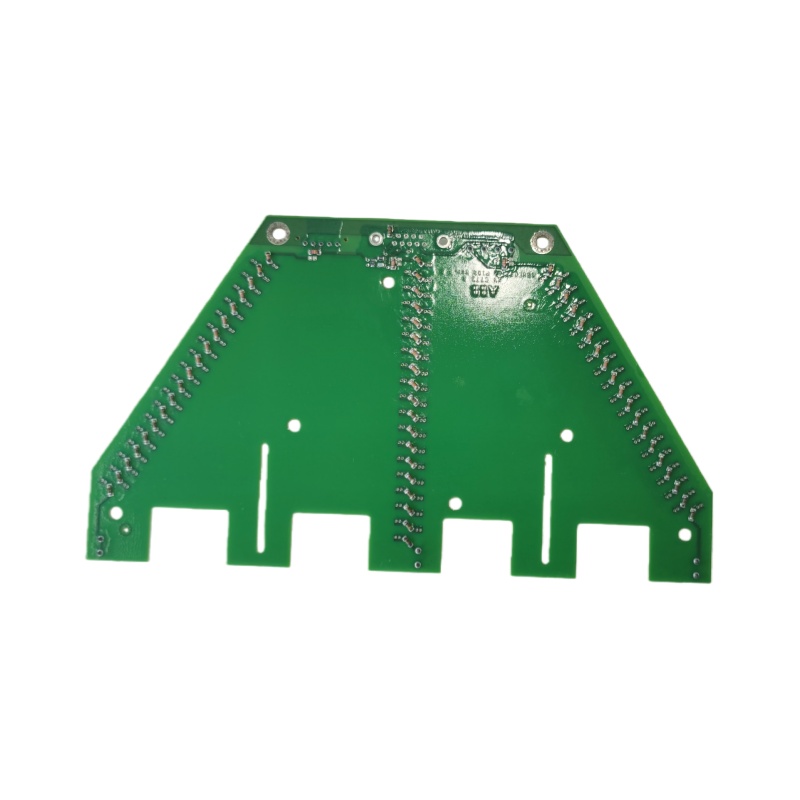

ABB XVC772A102 3BHE032285R0102 Control Board/Module
ABB XVC772A102 3BHE032285R0102
The ABB XVC772A102 3BHE032285R0102 is a high-performance control board/module belonging to ABB’s ACS2000 series. Engineered as a core component for industrial automation, it is widely integrated into Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), robotics, CNC machine tools, and large-scale servo systems. Originating from Sweden, this module comes with a 12-month warranty, operates on 24 VDC power supply, and delivers reliable performance across an extended temperature range of -40 °C to +85 °C.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Operating Temperature Range | -40 °C to 70 °C (operational); -40 °C to 85 °C (storage) |
| Input Voltage | 24 VDC |
| Power Consumption | Approximately 3 W (low-power design) |
| Dimensions & Weight | 95 mm × 45 mm × 120 mm; around 100 g |
| Communication Interfaces | Ethernet, RS-485; supports multi-protocol (100 Mbps full-duplex, protocol conversion latency <50 µs) |
| Digital I/O | 16 digital inputs, 16 digital outputs |
| Memory Capacity | 256 KB |
| Protection Rating & Standards | IP20; compliant with MIL-STD-810G vibration standards |
| Rated Voltage/Current (DC Contactor Version) | 1000 VDC, 315 A; breaking capacity 10 kA, making capacity 8 kA |
Product Features
- Modular Design
Compact and robust structure enables easy on-site installation and replacement, minimizing system downtime.
- High Reliability
Equipped with dual-core ARM Cortex-R5 processors running in lockstep mode, the module achieves redundant hot-swap switching time of less than 5 ms, ensuring zero data loss during system transitions.
- Strong Anti-interference Capability
Features 100 Mbps electrically isolated communication with anti-interference performance exceeding 1500 Vrms, suitable for harsh industrial environments with high electromagnetic noise.
- Multi-protocol Support
Simultaneously runs three heterogeneous protocols, enabling seamless integration with various fieldbuses and upper-level control systems.
- Low Energy Consumption
With a power draw of only 3 W, it is an ideal choice for energy-efficient control systems.
- Comprehensive Safety Protection
Integrates arc protection, overvoltage protection, and maintains insulation resistance of ≥100 MΩ to ensure operational safety.
Structure & Components
- Core Processing Unit: Dual-core ARM Cortex-R5 lockstep processor for high-speed, fault-tolerant data processing.
- Communication Module: Ethernet and RS-485 interfaces paired with corresponding photoelectric isolation circuits to enhance signal stability.
- I/O Expansion Board: Provides 16 digital inputs, 16 digital outputs, and optional analog I/O (depending on specific configurations).
- Power Management: Built-in 24 VDC power supply module with overvoltage and undervoltage protection functions.
- Thermal & Mechanical Structure: Metal housing with heat sinks, designed to withstand vibration and shock conditions in industrial settings.
Typical Application Fields
- Distributed Control Systems (DCS) and process automation
- Robotics control and CNC machine tools
- Drive and monitoring of packaging machinery, conveyor belts, pumps, fans, and compressors
- Photovoltaic (PV) DC contactors (specific models)
- Industrial fieldbus gateways and multi-protocol conversion scenarios
Installation & Maintenance Guidelines
Pre-installation Checks
- Verify that the power supply voltage matches 24 VDC and the ambient temperature falls within the specified range.
- Inspect the module housing for any physical damage before installation.
Mounting Requirements
- Secure the module to cabinets or guide rails using screws or clips, ensuring unobstructed heat dissipation channels.
Wiring Instructions
- Connect digital I/O, communication interfaces, and power supply in accordance with the wiring diagram.
- Use shielded cables compliant with IEC standards to minimize electromagnetic interference (EMI).
Initial Power-up
- Perform a no-load test before applying full power to check for short circuits or abnormal current draw.
Software Configuration
- Configure parameters via ABB Compact Control Builder or compatible PLC programming software. It is recommended to use the latest firmware version for optimal performance.
Regular Maintenance
- Every 6 months: Inspect wiring tightness and clean heat sinks to maintain thermal efficiency.
- Every 12 months: Conduct a full functional self-test to verify I/O performance, communication stability, and redundant switching capability.
- If abnormal noise or excessive temperature rise is detected, replace heat sinks or inspect internal fans (if equipped) promptly.
