Eaton 8650C74G01

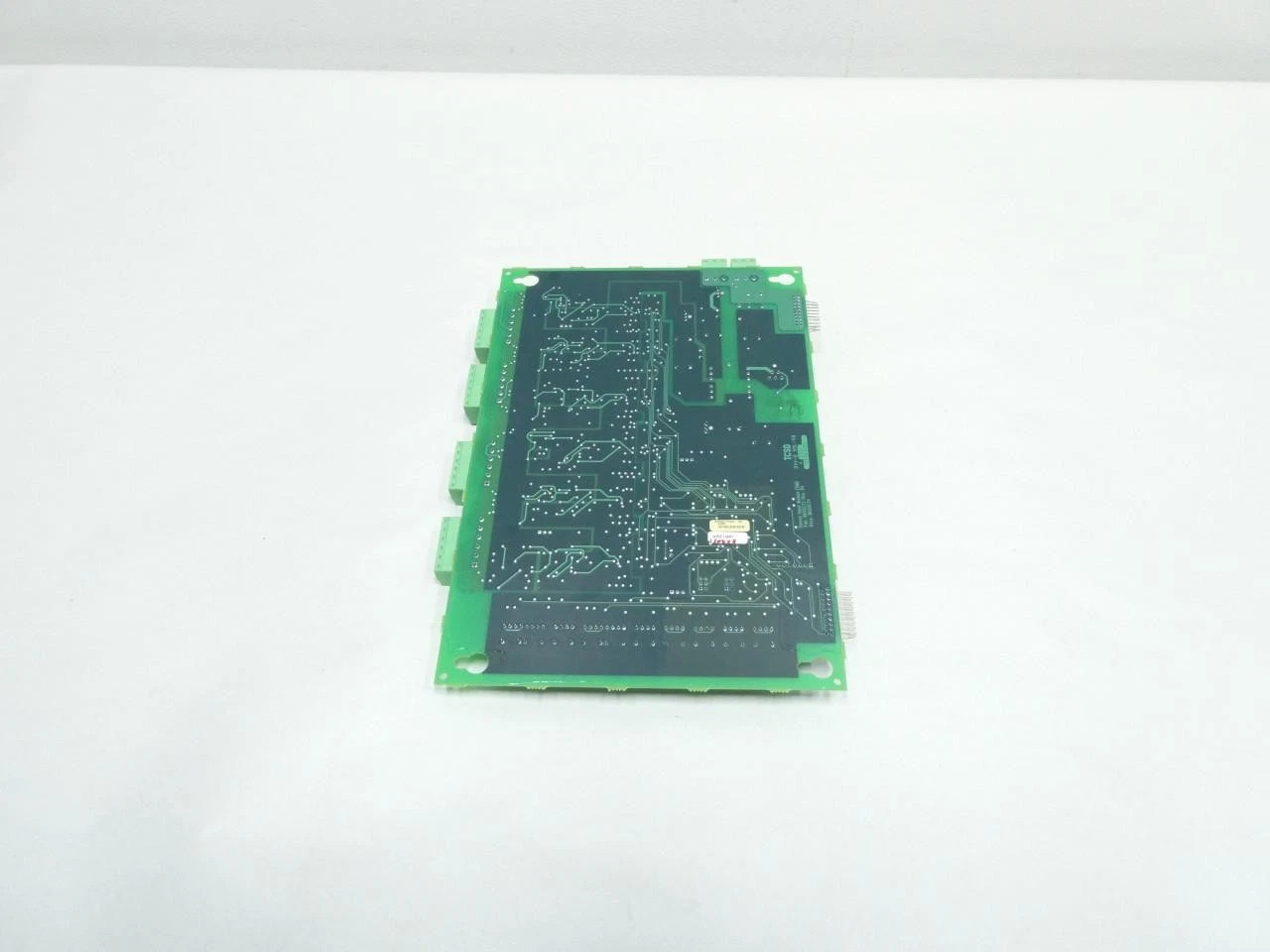

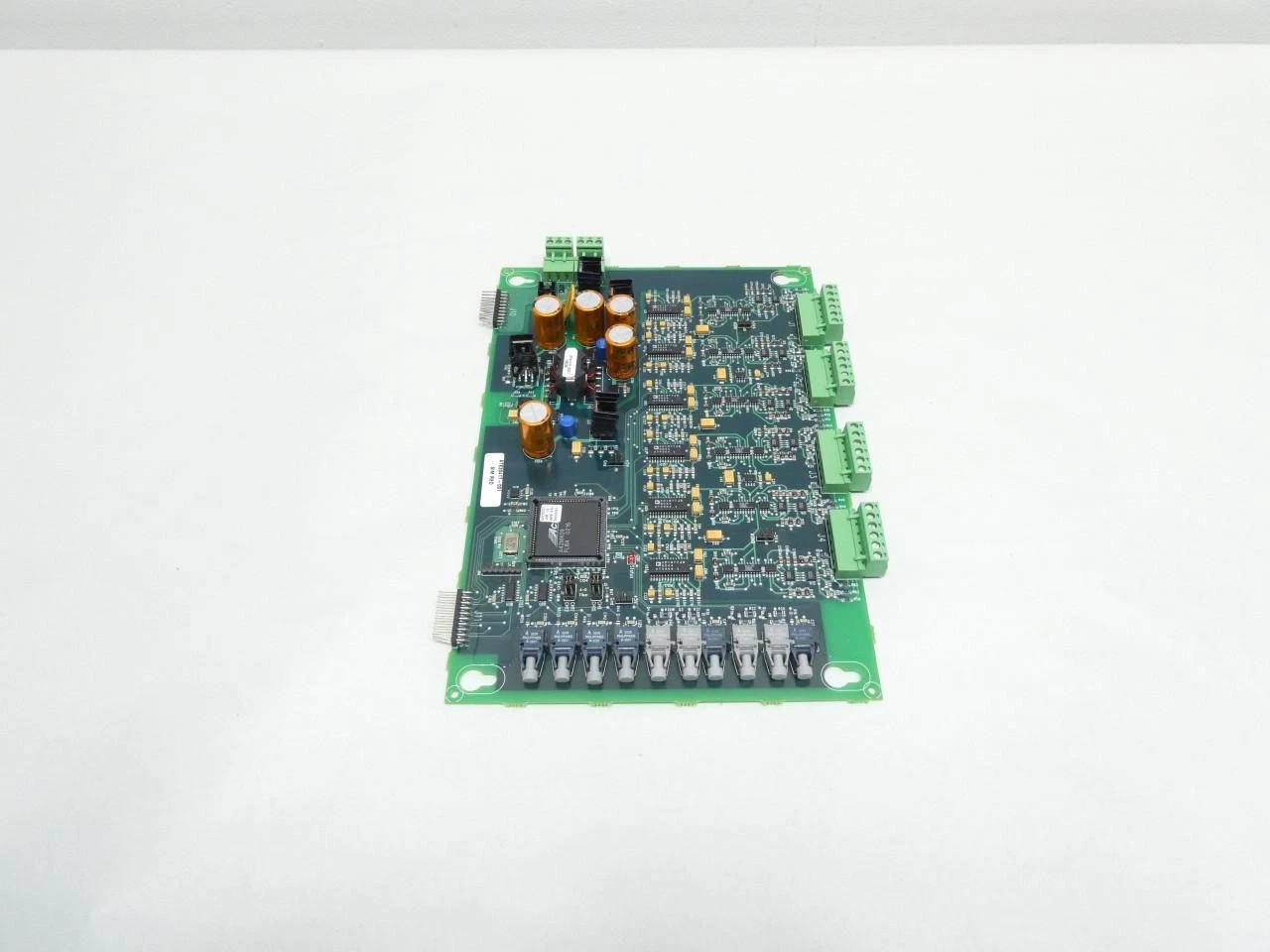

Eaton 8650C74G01 is a sensor input module designed for industrial automation systems. Featuring a PCB circuit board design (Rev 4/Rev 5), it enables the collection and digitization of multi-channel discrete signals, and is often used with PLCs, DCSs, or fieldbuses (such as Fieldbus). As a universal input unit in the Eaton 8650 series, this module is compatible with various on-site sensors (digital, pulse, counter, etc.) and provides reliable electrical isolation and protection.

Key Technical Specifications

• Rated Voltage: 24 V DC (typical), with an adjustable range of 12 V–30 V DC.
• Number of Input Channels: 8 channels (each with independent isolation), and each channel can be configured for voltage or current input.
• Input Type: Digital switching signals (ON/OFF), optional 0‑10 V, 4‑20 mA, PNP/NPN compatible.
• Isolation Voltage: ≥ 1500 V DC (internal module isolation), meeting industrial on-site safety requirements.
• Operating Temperature: -55 °C ~ +125 °C, suitable for extreme environments.
• Package Type: 2‑SMD square terminal block, surface mount technology (SMT), dimensions: 6.10 mm × 2.57 mm × 2.57 mm (L × W × H).
• Power Supply: Surface mount power supply, supporting a power input with a rated current of 20 A.
• Certifications: Complies with international safety standards such as IEC 60947‑4‑1 and UL 508.

Product Features

• High Reliability: Adopts industrial-grade components and a wide operating temperature range, enabling long-term operation in harsh on-site environments.
• Complete Isolation: Each input channel achieves 1500 V DC isolation to prevent noise coupling and electrical interference.
• Flexible Configuration: Supports both voltage and current input modes, which can be freely switched via software or jumpers, compatible with various sensors.
• Compact Size: Surface mount package, suitable for high-density cabinets or fieldbus panels.
• Easy Maintenance: Modular design allows for quick replacement in case of failure, and complete terminal block identification is provided.
• Strong Compatibility: Complies with Eaton 8650 series standards and can be directly inserted into corresponding I/O expansion chassis or fieldbus panels.

Structure and Composition

• PCB Main Board: Multi-layer printed circuit board, with internal wiring realizing signal isolation and power distribution.
• Input Terminal Block: 8 independent terminals with square terminal bases for easy on-site wiring.
• Isolation Capacitors/Transformers: Each channel is equipped with a high-voltage capacitor or a small isolation transformer to achieve electrical isolation.
• Identification Layer: The PCB surface is printed with channel numbers, input type indicators, and warning signs for easy on-site identification.
• Housing/Shield (Optional): Provides dustproof and moisture-proof metal or plastic shields for harsh environments.

Typical Application Fields

• Process Control Systems: Collect digital sensor signals (such as limit switches, flow meter pulses) and send them to PLCs/DCSs.
• Machine Vision and Inspection: Receive high-speed discrete signals from photoelectric sensors, grating counters, etc.
• Automated Assembly Lines: Monitor safety-related signals such as safety doors, emergency stop buttons, and position sensors.
• Energy Management: Cooperate with power monitoring systems to read the status of current/voltage relays.
• Fieldbus Networks: Used as a Fieldbus (Profibus, Modbus, Ethernet/IP) I/O expansion module.

Installation and Maintenance Guidelines

Pre-Installation Checks

• Confirm that the power supply voltage is within the module’s rated range.
• Check whether the heat dissipation and protection level of the chassis or panel meet on-site requirements.

Wiring Notes

• Wire according to the channel numbers marked on the module to ensure matching voltage/current types.
• Use shielded wires or twisted-pair wires that comply with IEC standards to reduce electromagnetic interference.
• The ground terminal must be reliably grounded to prevent electrostatic discharge.

Fixing Method

• Use standard DIN rails or cabinet screws for fixation to ensure the module does not loosen due to vibration.

Commissioning and Testing

• After power-on, use the diagnostic software provided by Eaton or the PLC I/O detection function to verify the input status of each channel one by one.
• Check whether the isolation voltage is normal to ensure complete safety isolation.

Daily Maintenance

• Regularly inspect terminals for corrosion and loosening, and re-tighten if necessary.
• Remove dust and moisture to keep the module’s heat dissipation channels unobstructed.
• In case of failure, quickly replace the module according to its serial number to avoid system downtime.
